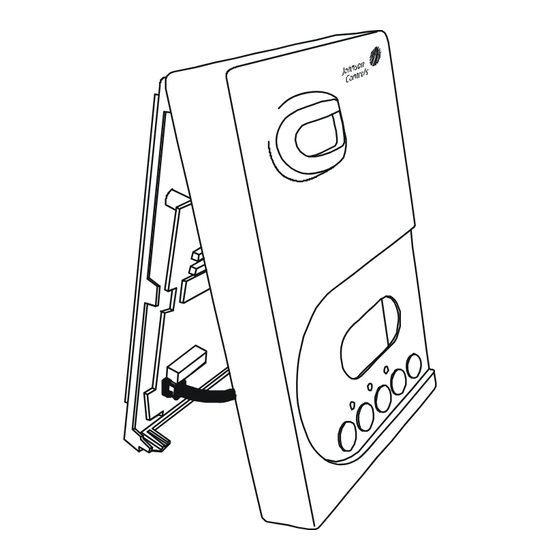

TEC20x6(H)-4 and TEC20x6H-4+PIR Series Wireless Thermostat
Controllers with Dehumidification Capability, Fan Control, and
Occupancy Sensing Capability

Installation Instructions

Applications
The TEC Series Wireless Thermostat Controller
System provides wireless networked control of
Heating, Ventilating, and Air Conditioning (HVAC)
equipment on a Building Automation System (BAS)
that enables remote monitoring and programming. This
TEC Series System integrates into a supervisory
controller that uses BACnet® Internet Protocol (IP) or
BACnet Master-Slave/Token-Passing (MS/TP)
communications.
TEC20 Coordinators allow the supervisory controller to
communicate with multiple TEC Wireless Thermostat
Controllers. TEC20x6(H)-4 and TEC20x6H-4+PIR
Series Wireless Thermostat Controllers control two- or
four-pipe fan coils, cabinet unit heaters, or other
equipment using on/off, floating, or proportional
0 to 10 VDC control input, three speeds of fan control,
and dehumidification capability.
The TEC20x6H-4+PIR Series Thermostat Controllers
have occupancy sensing capability built into the device.
These devices maximize up to 30% energy savings in
high-energy usage light commercial buildings, such as
schools and hotels, during occupied times by using
additional standby setpoints. See the Occupancy
Sensor Operation – TEC20x6H-4+PIR Series
Thermostat Controllers section for more information.
The wireless mesh network uses ZigBee™ technology
to enable remote monitoring and programming and to
enhance reliability by providing redundant transmission
paths through other TEC Wireless Thermostat
Controllers, creating a resilient, self-healing mesh
network.
TEC20x6(H)-4 and TEC20x6H-4+PIR Series Wireless Thermostat Controllers with
Dehumidification Capability, Fan Control, and Occupancy Sensing Capability
Part No. 24-9890-1095, Rev. B
IMPORTANT: The TEC20x6(H)-4 and
TEC20x6H-4+PIR Series Wireless Thermostat
Controllers are intended to provide an input to
equipment under normal operating conditions.
Where failure or malfunction of the thermostat
controller could lead to personal injury or property
damage to the controlled equipment or other
property, additional precautions must be designed
into the control system. Incorporate and maintain
other devices, such as supervisory or alarm systems
or safety or limit controls, intended to warn of or
protect against failure or malfunction of the
thermostat controller.
North American Emissions Compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment is
operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference, in which case
the user will be required to correct the interference
at his/her own expense.
RF Transmitters: Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1.
This device may not cause harmful interference, and
2.
This device must accept any interference received,
including interference that may cause undesired
operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment
Issued July 13, 2010
Supersedes May 17, 2010
.
