Unocc Heat
= 65°F
Configuring the Thermostat Controller
The thermostat controller ships from the factory with
default settings for all configurable parameters. The
default settings are shown in Table 3. To reconfigure
the parameters via the thermostat controller, follow the
steps in this section.
1. To access the Installer Configuration Menu, press
and hold the MENU key for approximately
8 seconds.
Note: If the Password parameter is configured,
Password 0 appears on the thermostat controller
display indicating that the configured password is
required to proceed. Use the UP/DOWN arrow
keys to indicate the configured password, then
press the MENU key to proceed through the
Installer Configuration Menu parameters.
2. Once the Installer Configuration Menu begins,
release and press the NO key to scroll through the
parameters listed in Table 3.
3. When the desired parameter is displayed, use the
YES key to choose the desired selection option.
4. Press the YES key and then the NO key to
continue scrolling through the parameters.
When the thermostat controller is in the Installer
Configuration Menu and left unattended for
approximately 8 seconds, the thermostat controller
reverts to the Status Display Menu.
TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat Controller
Occ Heat
= 72°F
Room Temperature

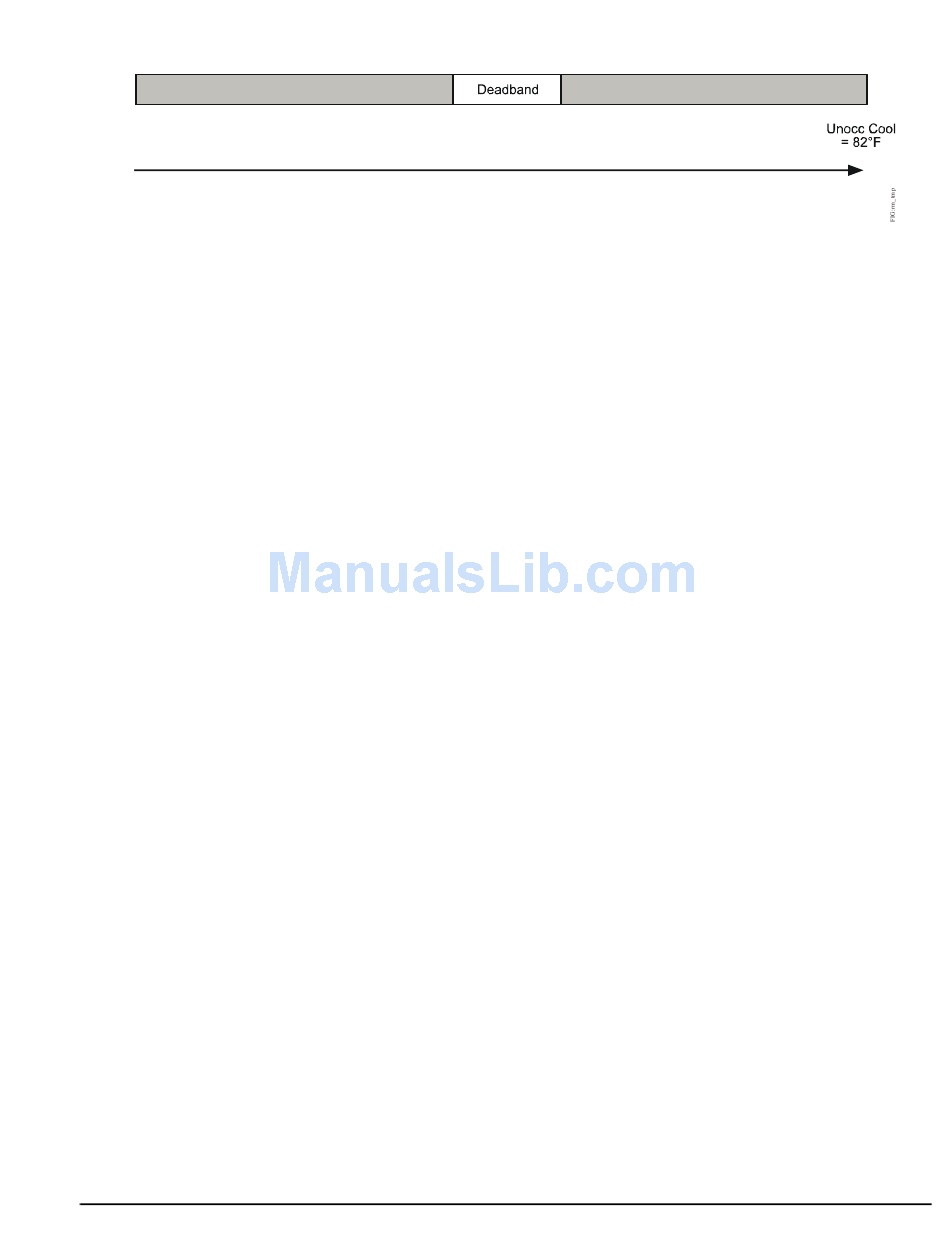

Figure 7: Increasing Room Temperature Setpoints
Occ Cool
= 75°F
Configuring the Wireless Mesh Network
Settings
Use the following process to configure the wireless
mesh network settings.
1. Select a PAN ID and Channel. Use these same
values for every TEC Wireless Thermostat
Controller (and the associated coordinator) on the
same wireless mesh network.
2. Select a Com Address for each TEC Wireless
Thermostat Controller (1 to 254). This address
must be unique to each thermostat controller on
the same wireless network (that is, unique to the
PAN ID and Channel combination).
After configuring the wireless mesh network settings,
refer to the TEC20xx-4 and TEC20xx-4+PIR Series
Wireless Thermostat Controller System Technical
Bulletin (LIT-12011596) for directions on integrating the
TEC20xx-4 and TEC20xx-4+PIR Series Wireless
Thermostat Controllers and TEC20 Coordinator with a
supervisory controller.
Configuring Inputs DI1 and DI2
When DI1 and DI2 are configured for an alarm
condition, an alarm condition is displayed locally when
the input is closed. An alarm message is included on
the scrolling Status Display Menu and when the
message is displayed, the backlight momentarily
lights up.
Both inputs can be configured to the Selection Options
included in Table 3.
Installation Instructions
7
