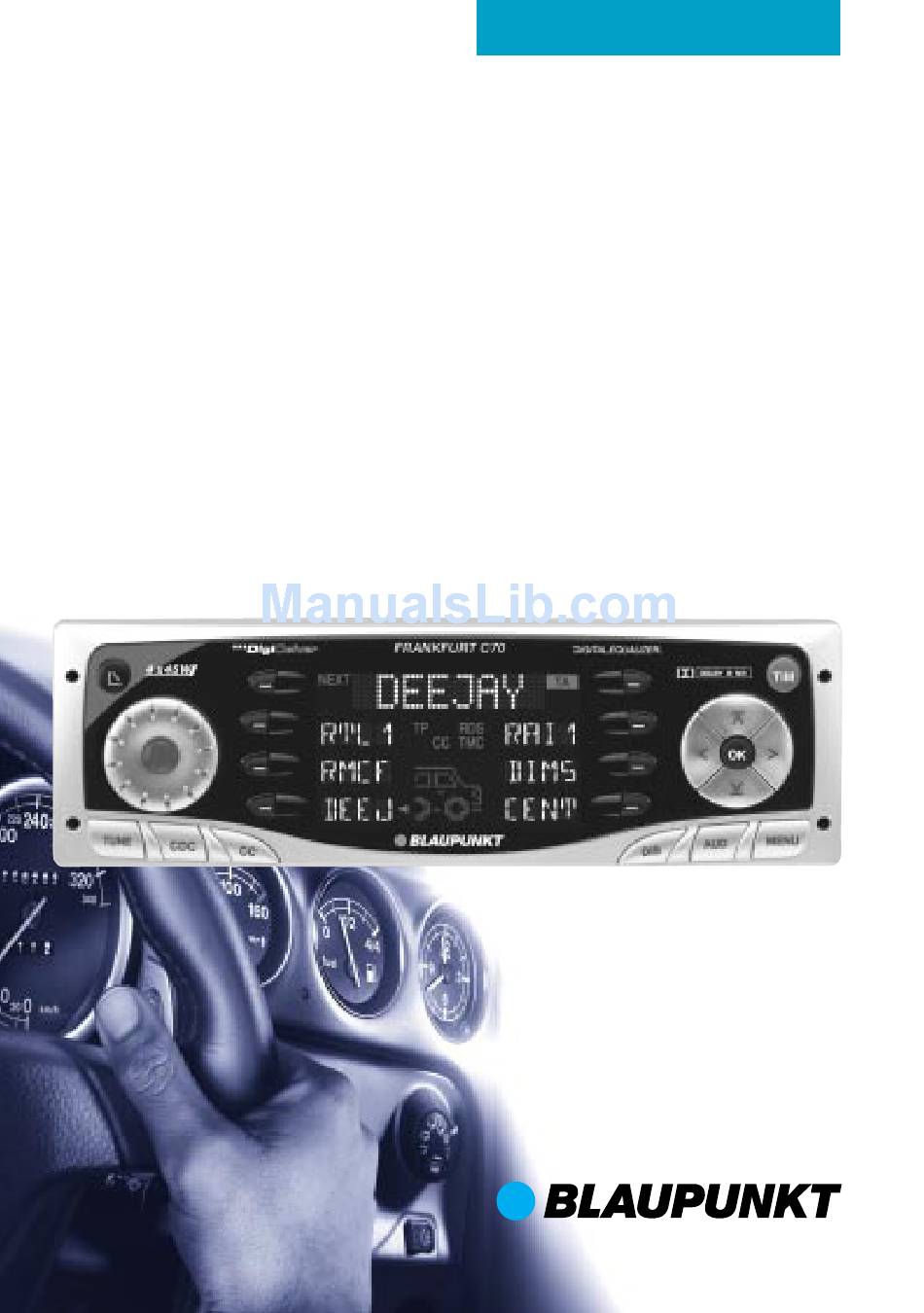

- Page 1 Radio / Cassette Frankfurt C70 Operating instructions...
- Page 2 Bitte aufklappen Open here Ouvrir s.v.p. Aprite la pagina Hier openslaan a.u.b. Öppna Por favor, abrir Favor abrir...
- Page 4 CONTROLS button - opens the operating panel Button - switches the radio and mute function on/off Volume control Soft keys - the function of the soft keys depends on the current content of the display OK button - confirms menu entries and leaves the menu TIM button - selects the TIM function Multifunction rocker switch...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Notes ..........41 Cassette mode ......60 Cassette playback ......... 60 Road safety ........... 41 Ejecting a cassette ........ 60 Installation ..........41 Changing the playing side ..... 60 Accessories ........... 41 Skipping tracks (S-CPS) ....... 60 Guarantee .......... -
Page 6: Notes
Thank you for deciding in favour of a Blau- CD changer punkt product. We wish you a great deal of The following Blaupunkt CD changers can be pleasure with your new car radio. connected to the radio: CDC A 06, CDC A 08, CDC A 072 and IDC A 09. -
Page 7: Theft Protection, Keycard
THEFT PROTECTION Note: Theft protection, KeyCard If a wrong card, e.g. a cash card, is introduced A KeyCard is supplied along with the radio. into the car radio, “Wrong KC” will appear on the display. The car radio can also be used with a sec- Remove the wrong card and slide in a Key- ond KeyCard. -
Page 8: Theft Protection
THEFT PROTECTION Making a new KeyCard “learn” the Remove the first KeyCard. code/entering the master code “INSERT” appears on the display. If you no longer have a valid KeyCard for your Insert the new KeyCard. unit and would like to make a new KeyCard “LEARN OK”... -
Page 9: Switching On/Off
THEFT PROTECTION SWITCHING ON/OFF Press the soft key 4 with the display Switching on/off allocation “LED” to switch between “LED There are various ways of switching the car ON” and “LED OFF”. radio on and off. To leave the KeyCard menu, Switching on/off using the button press the OK button 5 to return to the previous menu level or the MENU but-... -
Page 10: Using Your Car Radio For The First Time
USING YOUR CAR RADIO FOR THE FIRST TIME Using your car radio for the Set the minutes using the button first time Press the OK button 5. If the car radio is being connected for the first Setting the tuner time or the power supply to the unit has been interrupted, the install menu appears on the Press the soft key 4 with the display... -
Page 11: Volume Adjustment
VOLUME Press the OK button 5 to go back to Volume adjustment the previous menu level or the MENU The system volume can be adjusted in steps button 8 to leave the menu altogether. from 0 (off) to 50 (maximum). The settings are now stored. -
Page 12: Audio Settings
VOLUME AUDIO SETTINGS Setting the volume for the Audio settings warning tone (beep) Note: If you hold down a button for longer than two You can adjust the bass, treble and loudness seconds when using certain functions, e.g. settings separately for each audio source. storing a station on a station button, a warn- ing tone (beep) sounds. -
Page 13: Setting The Display
AUDIO SETTINGS DISPLAY If you want to deactivate the loudness func- Setting the display tion, You can adjust the display to your needs and button 7. press the the position of the car radio in your vehicle. “LOUD OFF” appears on the display. Setting the reading angle When the settings have been completed, Press the MENU button 8. -
Page 14: Radio Mode
RADIO MODE DISPLAY Display brightness - night Radio mode Press the MENU button 8. This unit is equipped with an RDS radio re- Press the soft key 4 with the display ceiver. Many of the receivable FM stations transmit a signal that not only carries the pro- allocation “DISP”. -
Page 15: Selecting The Frequency Range/Memory
RADIO MODE Switching the RDS function on/off Selecting the wavelength To use the RDS functions AF and REG, To select the wavelength, FM, MW or LW, press the TUNE button > when in radio press the TUNE button > when in radio mode. -
Page 16: Selecting Short/Long-Range Reception
RADIO MODE To return to the basic radio menu, Tuning into stations manually press the TUNE button > or wait 8 sec- You can also tune into stations manually. onds. The settings are now stored. button 7. Press either the Setting the sensitivity of the Note: station search mode... -
Page 17: Storing Stations
RADIO MODE Listening to preset stations The display shows the currently set value for sensitivity. “DX 3” denotes maximum sensi- Select the memory or frequency range tivity for long-range reception. “DX 1” is the in which the station was stored. minimum. -
Page 18: Setting The Scanning Time
RADIO MODE lights up alongside the scanned memory po- tion of the selected programme type is re- sition. ceived, the unit automatically switches from the current station, CD or CD changer mode Ending SCAN, continuing to listen to a to the station with the selected programme station type. -
Page 19: Optimising Radio Reception
RADIO MODE Optimising radio reception Note: If no station corresponding to the selected High-frequency cut-off feature (HICUT) programme type is found, “NO PTY” appears briefly on the display. The unit then tunes in The HiCut function improves the sound dur- automatically to the station last received. -
Page 20: Switching Between Stereo And Mono
RADIO MODE Press the soft key 4 with the display Interference-related wavelength change (SHARX) allocation “MONO”. With the SHARX function you can eliminate The current status “MONO” or “STEREO” interference from neighbouring stations al- appears briefly on the display. When mono is most completely. -
Page 21: Naming A Station
RADIO MODE Naming a station Select the station name you would like to clear by pressing the soft key 4 with You have the option of giving a preset station the display allocation “PREV” or “NEXT” a four-digit name to appear on the display. for the previous or next preset station on Press the MENU button 8. -
Page 22: Tim - Traffic Information Memory
When TIM is switched on, the traffic an- TIM - Traffic Information nouncements of a set traffic radio station are Memory recorded for two hours after the unit is switched off. The unit has a digital voice memory in which up to four traffic announcements with a dura- Recording traffic announcements tion of max. -
Page 23: Playback Of Recorded Traffic Announcements
Playback of recorded traffic In order to deactivate TIM record standby, announcements press the TIM button 6 until “TIM OFF” appears briefly on the display. Four traffic announcements can be record- TIM record standby is now deactivated and the antenna is pulled in (make sure to check If no announcement has been recorded, “NO this) and remains pulled in until the car radio TIM”... -
Page 24: Traffic Information
TRAFFIC INFORMATION Traffic information Setting the traffic announcement volume Your car radio is equipped with an RDS-EON Press the MENU button 8. reception system. EON (Enhanced Other Network) stands for Press the soft key 4 with the display the broadcasting of station information within allocation “VAR”. -
Page 25: Cassette Mode
CASSETTE MODE Skipping tracks (S-CPS) Cassette mode To choose the next or any other track, Cassette playback button 7 once or several press the If there is no cassette in the unit yet times until the number of tracks to be skipped appears on the display after button 1. -
Page 26: Scanning All Tracks On A Cassette (Scan)
CASSETTE MODE Scanning all tracks on a cassette Fast forward/rewind (SCAN) Fast forward Press the soft key 4 with display allo- button 7. Press the cation “SCAN”. “FORWARD” appears on the display. “FORWARD” appears on the display. Now you can listen in briefly to all tracks on the cas- Fast rewind sette in ascending order. -
Page 27: Dolby* Noise Suppression
To find out which CD changer is compatible Dolby function. with this unit, please see page 41 of this ma- Press the soft key 4 with the display nual or consult your Blaupunkt dealer. allocation “DLBY”. Note: When the Dolby function is switched on, an... -
Page 28: Fast Search (Audible)
CD CHANGER MODE Fast search (audible) Stopping REPEAT To stop the repeat function for the current For a fast search backwards or forwards track or CD, button 7 pressed until keep the press the soft key 4 with the display the fast search backwards or forwards allocation “RPT”... -
Page 29: Naming Cds
CD CHANGER MODE Press the soft key 4 with the display Press the OK button 5 to store the allocation “SCAN” name. “SCAN” appears in the display alongside a Clearing a CD name flashing arrow symbol. Press the MENU button 8 when in CD Stopping SCAN changer mode. - Page 30 CD CHANGER MODE tracks of the CD in the drive will be played. Clearing the list of favourite tracks for a Up to 30 CDs with a maximum of 40 tracks each can be handled in CD mode. You can also clear the entire list of favourite tracks for a CD.
-
Page 31: Clock - Time
CLOCK Setting the time manually CLOCK - Time To set the time manually, Setting the time press the MENU button 8; The time can be set automatically using the press the soft key 4 with the display RDS signal. If no station using this function is allocation “CLK”;... -
Page 32: Equalizer
EQUALIZER CLOCK Viewing the clock even when car Equalizer radio is switched off This car radio is fitted with a parametric digi- To view the clock when the car radio is tal equalizer. In this case, parametric means switched off and the ignition is switched on, that for each of the two filters, one frequency press the MENU button 8;... -
Page 33: Setting The Equalizer
EQUALIZER Press the AUD button 9. Setting the quality factor of the filter In order to switch off the equalizer, Press the AUD button 9. press the AUD button 9. Press the soft key 4 with the display Press the soft key 4 with the display allocation “DEQ”. - Page 34 EQUALIZER Setting aid for the equalizer What to do Sound impression/problem Raise bass with Bass reproduction too weak frequency: 32 to 160 Hz, filter: “LOW” level: +4 to +6 dB Reduce lower mid-section with Impure bass frequency: 400 Hz, filter: “LOW” Booming level: approx.
-
Page 35: Tmc For Dynamic Navigation Systems
We recommend the use of matching prod- via TMC and can therefore by used by suita- ucts from the Blaupunkt or Velocity ranges. ble navigation systems for route planning. Your car radio has one TMC output for connection Switch-on delay for external pre- to Blaupunkt navigation systems. -
Page 36: Subout/Subwoofer
SUBOUT/SUBWOOFER HIGH-PASS FILTER Subout/subwoofer High-pass filter Setting the frequency and level Setting the high-pass filter for the subwoofer If a subwoofer is connected to your car radio, you can use a high-pass filter (HP-F) to sup- You can set the frequency and amplifier level press the output of lower frequencies through for a connected subwoofer. -
Page 37: External Audio Sources
The AUX output has to be switched on in the power install menu. To connect up an external audio source, you will need an adapter cable, obtainable from Tuner any Blaupunkt dealer. Frequency ranges: Switching the AUX input on/off FM : 87,5 – 108 MHz MW : 531 –... - Page 38 026 130 04 41 026 130 05 14 800-266 25 28 708-681 71 88 Singapore 006 535 054 47 006 535 053 12 Slovensko 042 175 873 212 042 175 873 229 Blaupunkt-Werke GmbH Bosch Gruppe 09/00 TRO K7/VKD 8 622 402 517...
