Summary of Contents for Blaupunkt FRANKFURT 100

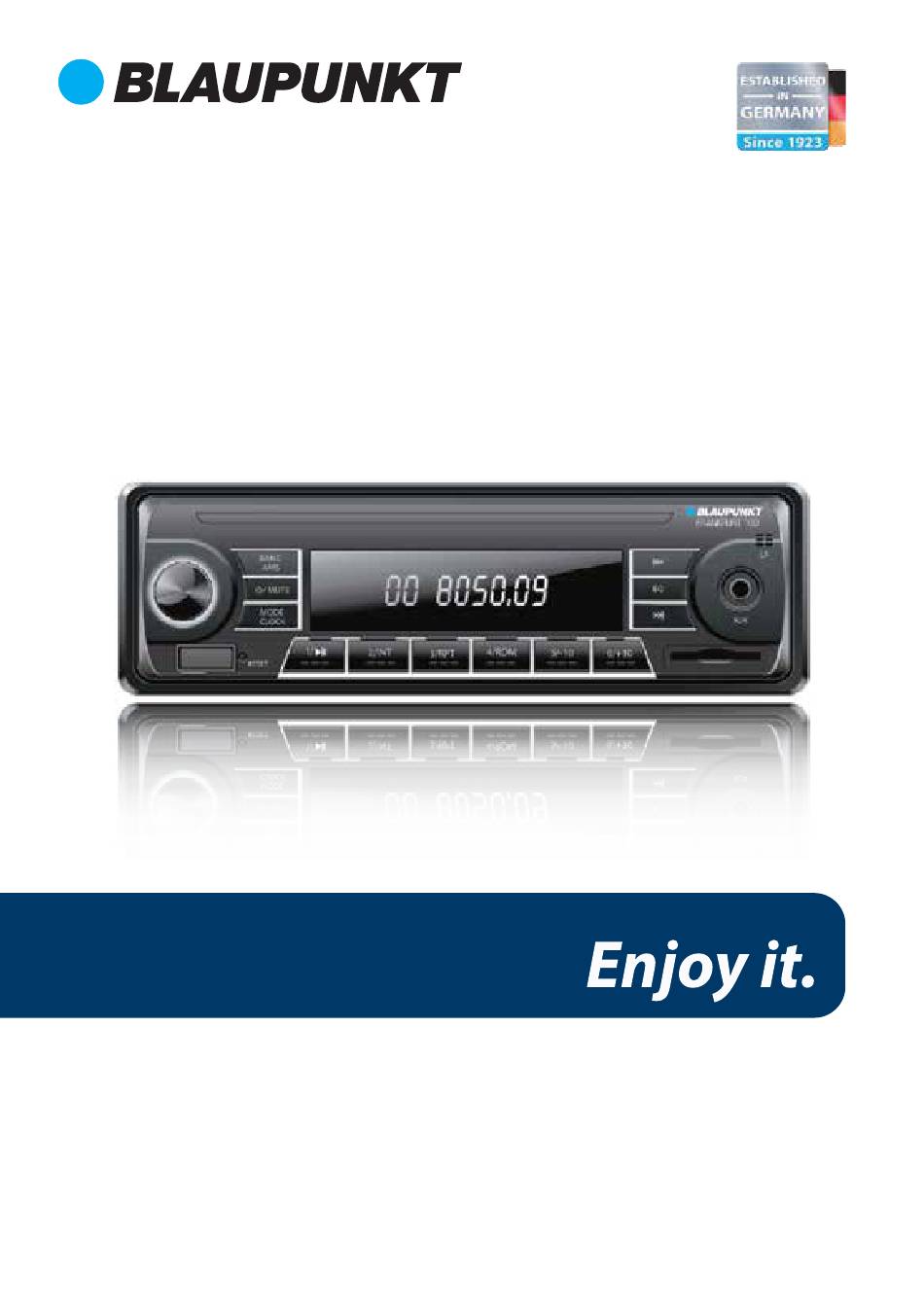

- Page 1 CAR RADIO FRANKFURT Operating and Installation Instructions...
- Page 2 DISCLAIMER Do not dispose of your old unit in the household trash! In no events shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special Use the return and collection systems available consequential damages, to property of life, to dispose of the old device.
-
Page 3: Lcd Screen Display
STRUCTURE VOLUME/MODE 2/INT Turn knob left or right to increase/decrease Radio mode : Press & hold to preset stations volume or press continuously to select USB/SD mode : Function as introduction, FLAT/POP/ROCK/CLASS/BASS/TRE/BAL/FAD playback each song for 10seconds BND/AMS 3/RPT Radio mode : Press to change radio band Radio mode : Press &... - Page 4 STRUCTURE Select mode of media Power : On / O Select stations band Return to previous / fast rewind Select equalizer Pause / play Introduction / song preview (USB/SD) Repeat song Random / shu e play Return to 10th song / previous folder Skip to 10th song / next folder Press &...
-
Page 5: Operation
OPERATION General Power supply : 13.8V DC Load impedance : 4 ohms Max. output power : 4 x 40W Tone control : ±8dB (bas 100Hz, treble 10KHz) Signal-to-noise ratio : 65dB Separation : 60dB (1KHz) Distortion : 0.1% Tuner Range : 87.5 ~ 108MHz IF range : 10.7MHz Usable sensitivity (-30dB) : 15dB Signal-to-noise ratio : 60dB... -
Page 6: Installation Instruction
Do not connect the vehicle’s plug connectors to the radio! • Your vehicle may di er from the description provided here. Blaupunkt is not liable in case any damage caused by incorrect installation or connection. • Please contact Blaupunkt dealers or vehicle’s... - Page 7 INSTALLATION INSTRUCTION 0° - 30° +/– 10° +/– 10°...
- Page 8 DISMANTLE INSTRUCTION...
-
Page 9: Wiring Diagram
WIRING DIAGRAM A1 : - B1 : REAR RIGHT + A2 : MUTE B2 : REAR RIGHT - A3 : - B3 : FRONT RIGHT + A4 : B+ (YELLOW) B4 : FRONT RIGHT - A5 : ANT (BLUE) B5 : FRONT LEFT + A6 : ILL B6 : FRONT LEFT - A7 : ACC (RED) -
Page 10: Troubleshooting
TROUBLESHOOTING Before going through the checklist, check wiring connection. If any of the problem continues after checklist has been made, consult an authorized dealer. SYMPTOM CAUSE SOLUTION No power supply Car ignition turned o Switch the key position to “ACC” to turn on ignition. - Page 11 Designed and engineered by Blaupunkt...
