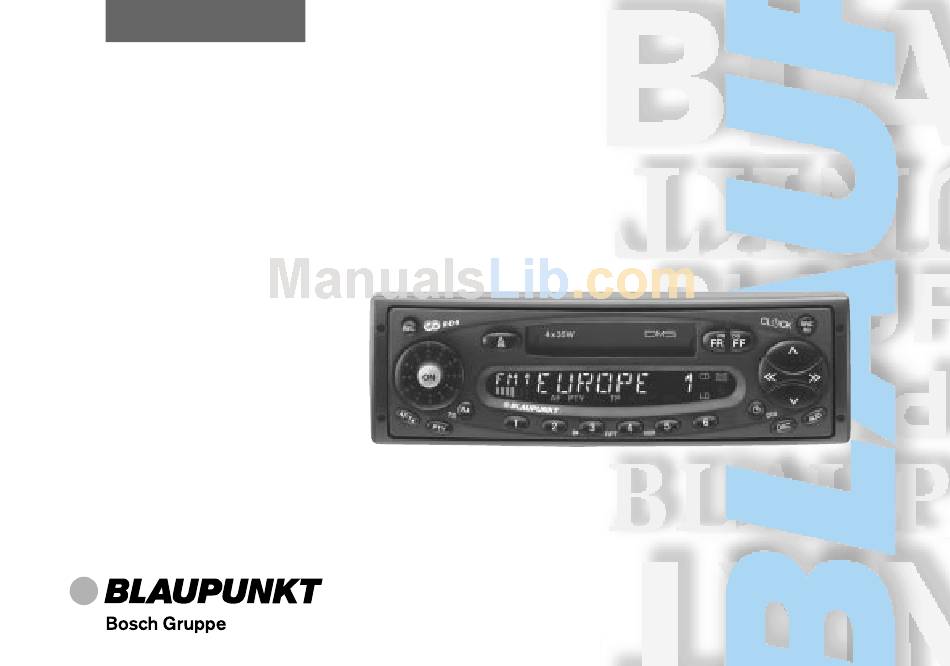

- Page 1 Radio / Cassette Freiburg RCM 148 Siena RCM 148 Louisiana RCM 148 Kingston DJ St. Louis DJ Operating instructions...
-
Page 3: Display
Display The display consists of three fields and changes according to the operating mode and function. Display field 1: Radio mode Memory banks and wavebands Brief indication of preset station (e.g. P1) Cassette mode CAS - cassette inserted Changer mode Current track Audio Numeric and graphic representation of the... -
Page 4: Table Of Contents
Contents Display ... 23 Quick reference ... 25 Important notes ... 28 What you need to know ... 28 Traffic safety ... 28 Installation ... 28 Warning note ... 28 Clock ... 29 Setting the clock ... 29 Release panel ... 29 Theft protection ... -
Page 5: Quick Reference
Quick reference 1 REL To release the detachable panel (theft protection). Press this knob and remove the release panel. 2 ON - Power up/down Press this button to turn the equipment on. It will play at the preset volume. If you press this button briefly during ra- dio reception, the volume will turn down instantly (MUTE). - Page 6 Select title Up: press briefly CUE - fast forward (audible): hold button down. Down: press two or more times briefly Repeat title: press briefly. REVIEW - fast reverse (audible): hold button down. Extra function of rocker switch: For additional settings use DSC-MODE E <...
- Page 7 >...C - Preset buttons 1 to 6 Radio mode You can store six stations in each memory bank (1, 2, and “T”). On MW and LW you can store six sta- tions each (except for Freiburg RCM 148, Kingston DJ) . Store station - hold down a preset button in radio mode until a beep is emitted.
-
Page 8: Important Notes
Switching AUD off Press button briefly. If you do not change the tone within 8 sec., the AUD mode will quit auto- matically. Extra function: LD Loudness boosts the bass frequency at low volume. Press AUD longer than 2 seconds to change the Loudness setting. -
Page 9: Clock
Clock This car radio is equipped with a built-in clock. Display priority: To switch the display priority, press the button until you hear a beep. Press as many times until the desired display mode is ac- tive (not during radio reception). Radio mode Press the button briefly to display the... -
Page 10: Fixing The Release Panel
Fixing the release panel If you wish to fix the release panel perma- nently to the chassis, screw down the en- closed bolt at the left hand side of the chas- sis into the hole (C), see Fig. Selecting the audio mode Use the SRC/SC (source) button to select between radio, cassette and CD mode. -
Page 11: Radio Operation With Rds
Radio operation with RDS (Radio Data System) The Radio Data System will enhance your enjoyment when you listen to FM radio sta- tions. More and more radio stations broadcast RDS information along with their regular programming. As soon as a programme has been identi- fied, the station name including a regional identifier, if applicable, will appear in the dis- play, for example, NDR1 NDS (regional pro-... -
Page 12: Manual Tuning With
Manual tuning with << >> You can also tune into a station manually. Requirement: AF and PTY must be switched off (i.e. the symbols do not light up in the display). If necessary, deactivate these functions: • Press AF·TA or PTY. Manual tuning: •... -
Page 13: Recalling Stored Stations
The six strongest FM stations will be auto- matically stored on the memory bank “T” (Travelstore). When this process has been completed, the radio will play the strongest station. If desired, stations can also be stored man- ually in the Travelstore bank (see “Storing stations”). -
Page 14: Switching Pty On/Off
CULTURE SCIENCE VARIED POP MUSIC ROCK MUSIC CLASSICS Switching PTY ON/OFF • Press PTY. When the function is active, the programme type selected last will briefly appear in the display. “PTY” will appear permanently. Checking the programme type of the station •... -
Page 15: Storing Programme Types
Storing programme types Each of the preset buttons 1-6 has been assigned one programme type at the facto- If desired, you can also replace these with other available programme types. To do so, make sure that “PTY” lights up in the display. -
Page 16: Traffic Programme Station Reception With Rds-Eon
Traffic programme station reception with RDS-EON The abbreviation “EON” stands for En- hanced Other Networks, which means that information is exchanged within a radio net- work. Many FM radio stations provide their serv- ice area with traffic messages at regular in- tervals. -
Page 17: Adjusting The Volume For Traffic Announcements And The Warning Beep
Adjusting the volume for traffic announcements and the warning beep Although this volume was preset at the fac- tory, you can use the DSC function to alter the setting (see “DSC programming - TA VOL”). Cassette deck operation Cassette playback Insert the tape into the slot with the open side showing to the right. -
Page 18: Cd Changer Operation
Louisiana RCM 148 Included in delivery: Kingston DJ, St. Louis DJ This piece of equipment offers you convenient control of a Blaupunkt CD changer CDC-A 08/CDC-A 072. If the CD changer is connected, the bol lights up in the display. -
Page 19: Selecting A Title
Selecting a title Up: Press briefly. CUE - fast advance (audible): Hold button down. Down: Press two or more times briefly. To re-start a title: Press briefly. REVIEW - fast reverse (audible): Hold button down. Press the button repeatedly to skip several titles. -
Page 20: Dsc Programming
DSC programming The car radio has been equipped with DSC (Direct Software Control) to allow you to customise certain programmable, basic set- tings to suit your personal needs and pref- erences and then store them. The basic settings for this audio equipment were made at the factory. -
Page 21: Overview Of The Dsc Factory Settings
SCANTIME Use this function to set the scan time for the radio or CD player from 5 to 20 sec- onds. Select AUX ON if you wish to connect a Discman or Walkman instead of the CD changer. Contact your deal- er for more information. -
Page 22: Appendix
Appendix Specifications Amplifier Output power: 4 x 23 W RMS power acc. to DIN 45324 at 14.4 V 4 x 35 W max. power Tuner Wavebands: 87.5 – 108 MHz 531 – 1602 kHz 153 – 279 kHz (Freiburg RCM 148, Kingston DJ without ML, LW) . - Page 23 Blaupunkt-Werke GmbH Bosch Gruppe 3/98 Mg K7/VKD 8 622 401 520...
