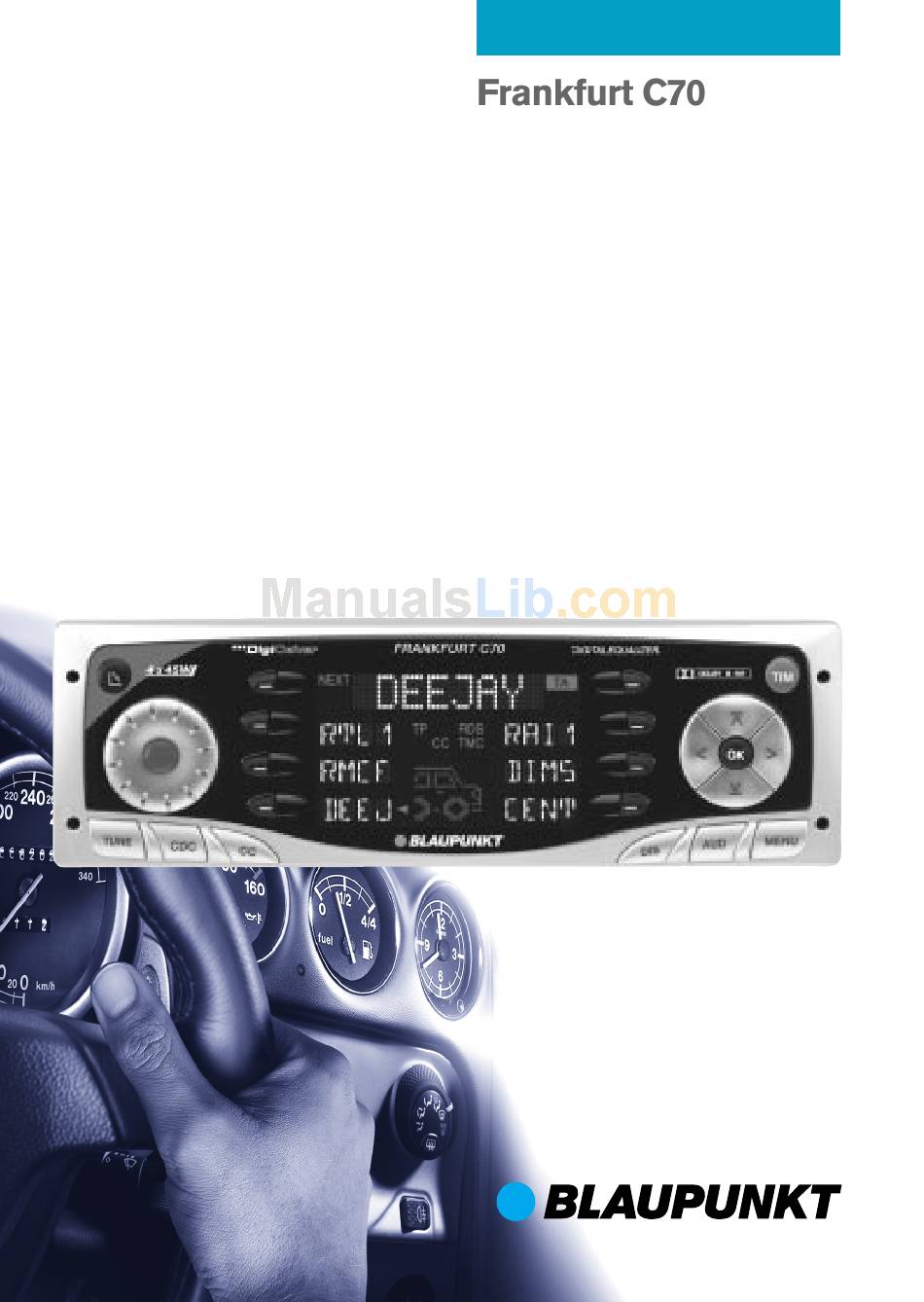

- Page 1 Radio / Cassette Operating instructions...
- Page 2 Bitte aufklappen Open here Ouvrir s.v.p. Aprite la pagina Hier openslaan a.u.b. Öppna Por favor, abrir Favor abrir...
- Page 3 button - opens the operating panel Button - switches the radio and mute function on/off Volume control Soft keys - the function of the soft keys depends on the current content of the display OK button - confirms menu entries and leaves the menu TIM button - selects the TIM function Multifunction rocker switch...
-
Page 4: Table Of Contents
Notes ... 41 Road safety ... 41 Installation ... 41 Accessories ... 41 Guarantee ... 41 International telephone information ... 41 Theft protection, KeyCard ... 42 Switching on/off ... 44 Using your car radio for the first time ... 45 Volume adjustment ... - Page 5 The most important functions can be select- ed safely from the steering wheel using the optional remote controls RC 08 or RC 10. All Blaupunkt amplifiers are suitable for use with the radio. The following Blaupunkt CD changers can be connected to the radio: CDC A 06, CDC A 08, CDC A 072 and IDC A 09.
-
Page 6: Notes
A KeyCard is supplied along with the radio. The car radio can also be used with a sec- ond KeyCard. If a KeyCard is lost or damaged, you can ob- tain a replacement KeyCard through a Blau- punkt dealer. If you use two KeyCards, the settings of the first KeyCard also apply to the second Key- Card. - Page 7 Remove the first KeyCard. “INSERT” appears on the display. Insert the new KeyCard. “LEARN OK” appears on the display. To leave the KeyCard menu, press the MENU button 8 once or OK 5 repeatedly until the desired menu appears. The settings are now stored. You can now use your car radio with the new KeyCard.
-
Page 8: Theft Protection, Keycard
Press the soft key 4 with the display allocation “LED” to switch between “LED ON” and “LED OFF”. To leave the KeyCard menu, press the OK button 5 to return to the previous menu level or the MENU but- ton 8 to leave the menu altogether. The settings are now stored. - Page 9 If the car radio is being connected for the first time or the power supply to the unit has been interrupted, the install menu appears on the display. Please make the following settings in the install menu: select an external audio source instead of a CD changer;...
- Page 10 The system volume can be adjusted in steps from 0 (off) to 50 (maximum). To raise the system volume, turn the volume control 3 to the right. To lower the system volume, turn the volume control 3 to the left. It is possible to adjust the volume that will play when you switch the radio on.
- Page 11 If you hold down a button for longer than two seconds when using certain functions, e.g. storing a station on a station button, a warn- ing tone (beep) sounds. The volume of this beep is adjustable. Press the MENU button 8. Press the soft key 4 with the display allocation “VAR”.
- Page 12 If you want to deactivate the loudness func- tion, button 7. press the “LOUD OFF” appears on the display. When the settings have been completed, press the AUD button 9. To set the balance, press the AUD but- ton 9. “AUDIO 1”...
- Page 13 Press the MENU button 8. Press the soft key 4 with the display allocation “DISP”. Press the soft key 4 with the display allocation “NGHT”. Set the brightness using the Press the OK button 5 to return to the previous menu level or the MENU but- ton 8 to leave the menu altogether.
-
Page 14: Radio Mode
To use the RDS functions AF and REG, press the TUNE button > when in radio mode. The radio function menu appears on the dis- play. Press the soft key 4 with the display allocation “RDS”. The RDS functions are active when “RDS” lights up on the display. - Page 15 You can also tune into stations manually. Press either the Note: You can only tune into stations manually if the RDS function is first deactivated. If a radio station provides several pro- grammes, you have the option of browsing through its so-called “broadcasting network”. button 7 to move to Press the the next station on the broadcasting net-...
-
Page 16: Tuning Into A Station
The display shows the currently set value for sensitivity. “DX 3” denotes maximum sensi- tivity for long-range reception. “DX 1” is the minimum. Press the MENU button 8 once or OK 5 repeatedly until the desired menu appears on the display. The settings are now stored. - Page 17 lights up alongside the scanned memory po- sition. Press the OK button 5. The scanning process is completed, the sta- tion last scanned remains active. Press the MENU button 8. Press the soft key 4 with the display allocation “VAR”. Press the soft key 4 with the display allocation “SCAN”.
- Page 18 Note: If no station corresponding to the selected programme type is found, “NO PTY” appears briefly on the display. The unit then tunes in automatically to the station last received. button 7 to select a Use the programme type. To store a programme type, hold down for more than one second one of the soft keys 4 with the display allocation of a programme type.
- Page 19 With the SHARX function you can eliminate interference from neighbouring stations al- most completely. Activate the SHARX func- tion in an area of high transmitter density. To switch SHARX on/off, press the MENU button 8; press the soft key 4 with the display allocation “TUN”;...
- Page 20 You have the option of giving a preset station a four-digit name to appear on the display. Press the MENU button 8. Press the soft key 4 with the display allocation “TUN”. Press the soft key 4 with the display allocation “NAME”.
- Page 21 The unit has a digital voice memory in which up to four traffic announcements with a dura- tion of max. four minutes in all are automati- cally recorded. The oldest announcements are deleted de- pending on the space needed for the latest announcement.
- Page 22 Four traffic announcements can be record- If no announcement has been recorded, “NO TIM” will appear on the display. In order to listen to the recorded traffic an- nouncements press the TIM button 6. Press the soft key marked for the de- sired traffic announcement (“TIM1”...
- Page 23 Your car radio is equipped with an RDS-EON reception system. EON (Enhanced Other Network) stands for the broadcasting of station information within a broadcasting network. When a traffic announcement (TA) is broad- cast, your unit will automatically switch, with- in a broadcasting network, from a station which does not transmit traffic information to one that does.
- Page 24 If there is no cassette in the unit yet button 1. press the The operating panel opens at the front. Place the cassette in the compartment with the open side pointing right. Close the operating panel. The cassette begins to play the side that is facing upwards (SIDE A).
-
Page 25: Setting The Scanning Time
Press the soft key 4 with display allo- cation “SCAN”. “FORWARD” appears on the display. Now you can listen in briefly to all tracks on the cas- sette in ascending order. To stop scanning, press the soft key 4 with display allo- cation “SCAN”... - Page 26 To find out which CD changer is compatible with this unit, please see page 41 of this ma- nual or consult your Blaupunkt dealer. Note: Information on handling CDs, inserting CDs and operating the CD changer can be found in the operating instructions accompanying your CD changer.
-
Page 27: Naming Cds
For a fast search backwards or forwards button 7 pressed until keep the the fast search backwards or forwards begins. In CD changer mode, you can switch between the various display modes: display of CD number and track number; display of CD number, track number and playing time;... - Page 28 Press the soft key 4 with the display allocation “SCAN” “SCAN” appears in the display alongside a flashing arrow symbol. To stop scanning, press the soft key 4 with the display allocation “SCAN” once again. The track last scanned then continues to be played.
- Page 29 tracks of the CD in the drive will be played. Up to 30 CDs with a maximum of 40 tracks each can be handled in CD mode. Proceed as follows to select your favourite tracks on a CD: in the CD changer mode, select the CD from which you wish to select your fa- vourite tracks;...
- Page 30 The time can be set automatically using the RDS signal. If no station using this function is available, the unit attempts to receive the DCF-77 signal (radio clock) the next time the unit is switched off. It is also possible for you to set the clock manually.
-
Page 31: Equalizer
To view the clock when the car radio is switched off and the ignition is switched on, press the MENU button 8; press the soft key 4 with the display allocation “CLK”; press the soft key 4 with the display allocation “VIEW”;... - Page 32 Press the AUD button 9. In order to switch off the equalizer, press the AUD button 9. Press the soft key 4 with the display allocation “DEQ”. “DEQ OFF” appears on the display. button 7. Press the The last active setting appears on the display before the unit is switched off.
- Page 33 Sound impression/problem Bass reproduction too weak Impure bass Booming Disagreeable pressure Sound very dominant, aggressive, no stereo effect Muffled reproduction Low transparency No instrumental brilliance What to do Raise bass with frequency: 32 to 160 Hz, filter: “LOW” level: +4 to +6 dB Reduce lower mid-section with frequency: 400 Hz, filter: “LOW”...
-
Page 34: Pre-Amplifiers
We recommend the use of matching prod- ucts from the Blaupunkt or Velocity ranges. You can define a switch-on delay for pre-am- plifiers connected to the pre-amp output line. The switch-on delay can be set at between 250 ms (“DELAY 1”) to 2.25 seconds (“DE-... -
Page 35: High-Pass Filter
You can set the frequency and amplifier level for a connected subwoofer. The settings you make depend on the hifi system in your car and the power of your subwoofer. Experiment to find your ideal setting. Press the AUD button 9. Press the soft key 4 with the display allocation “NEXT”. -
Page 36: External Audio Sources
To connect up an external audio source, you will need an adapter cable, obtainable from any Blaupunkt dealer. Hold down the MENU button 8 until the install menu appears on the display. Press the soft key 4 with the display allocation “AUX”.
