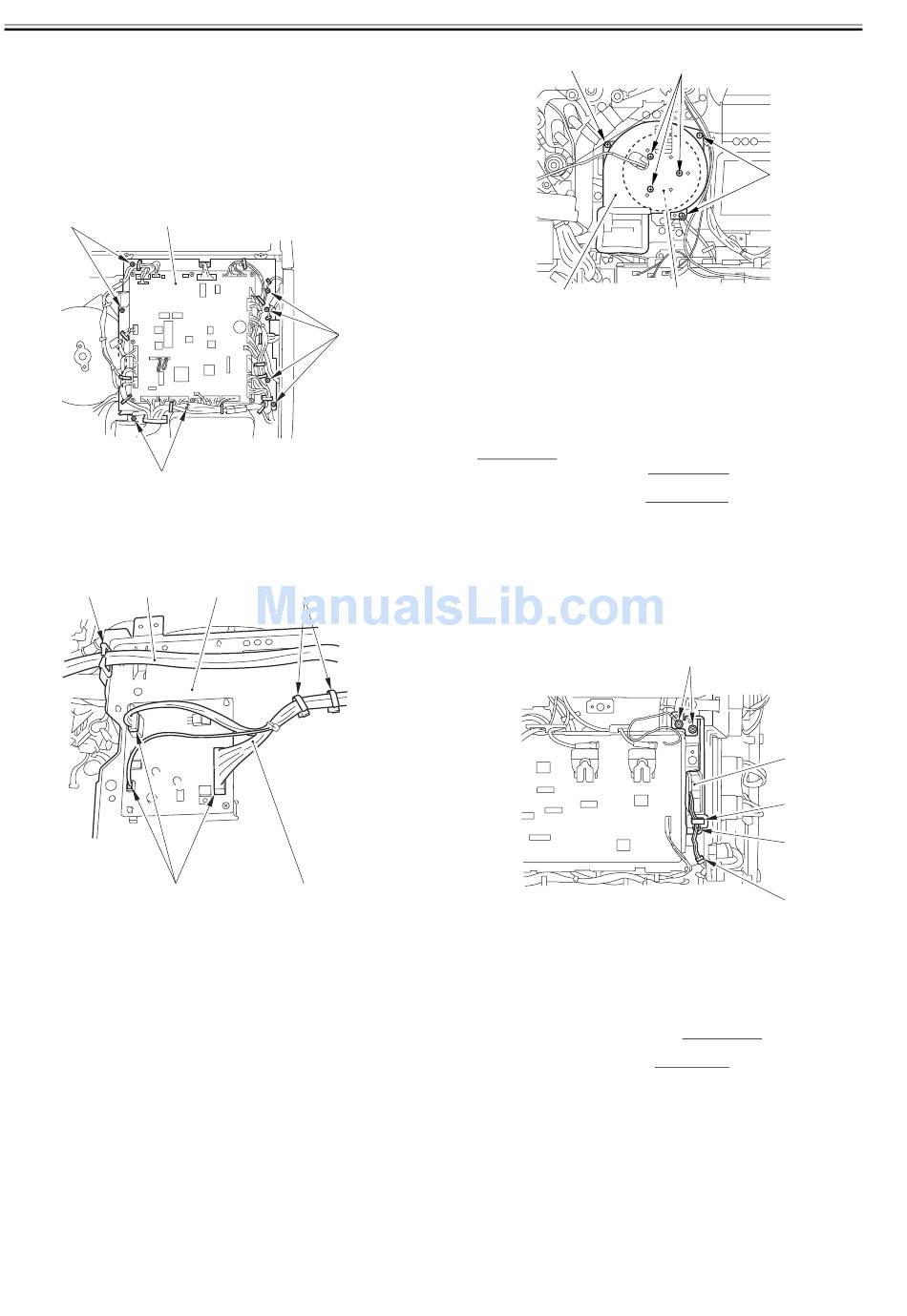

10.5.24.2 Removing the Feeding Fan

iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
1) Disconnect all the connectors of the DC controller PCB.
2) Detach the DC controller base [2]; then, turn it over.
- Wire saddle 14pc. (to free the harness)
- Edge saddle 1pc. (to free the harness)
- Reuse band 1pc.
- Screw [1] 8pc. (to remove the grounding wire)
[1] [2]
[1]
3) Detach the DC controller base [6].
- Connector [1] 3pc.
- Wire saddle [2] 2pc. (to free the harness [3])
- Edge saddle [4] 1pc. (to free the harness [5])
[4] [5]
[1]
4) Detach the feed fan cover [2].
- Screw [1] 3pc.
5) Detach the feed fan [4].
- Screw [3] 3pc.
10-30
[1]
F-10-100
[6] [2]
[3]
F-10-101
[1]
0015-5152
[2]

10.5.25 HVT Fan

10.5.25.1 Before Removing the HVT Fan

iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
1) Remove the charger unit (this step is necessary only for iR5075 for Japan).
(page 10-22)Reference[Removing the Charger unit]
2) Remove the rear cover (upper). (page 10-13)Reference[Removing the
Rear Cover (Upper)]
3) Detach the rear cover (lower). (page 10-13)Reference[Removing the
Rear Cover (Lower)]

10.5.25.2 Removing the HVT Fan

iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
1) Detach the HVT fan [1].
- Cable guide [2]
- Connector [3]
- Screw [4] 3pc.

10.5.26 Duplex Feed Fan

10.5.26.1 Before Removing the Duplex Feeding Fan

iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
1) Detach the duplex feeding front cover. (page 10-14)Reference[Remov-
ing the Duplexing Feed Front Cover]
2) Remove the duplex feeding unit. (page 8-49)Reference[Removing the
Duplex Feeding Unit]

10.5.26.2 Removing the Duplex Feeding Fan

iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
1) Detach the fan base [3].
- Screw [1] 2pc.
- Connector [2] 1pc.
[3]
[1]
[4]
F-10-102
[4]
[1]
[2]
[4]
[3]
F-10-103
0015-9227
0015-9228
0015-8276
0015-8275
