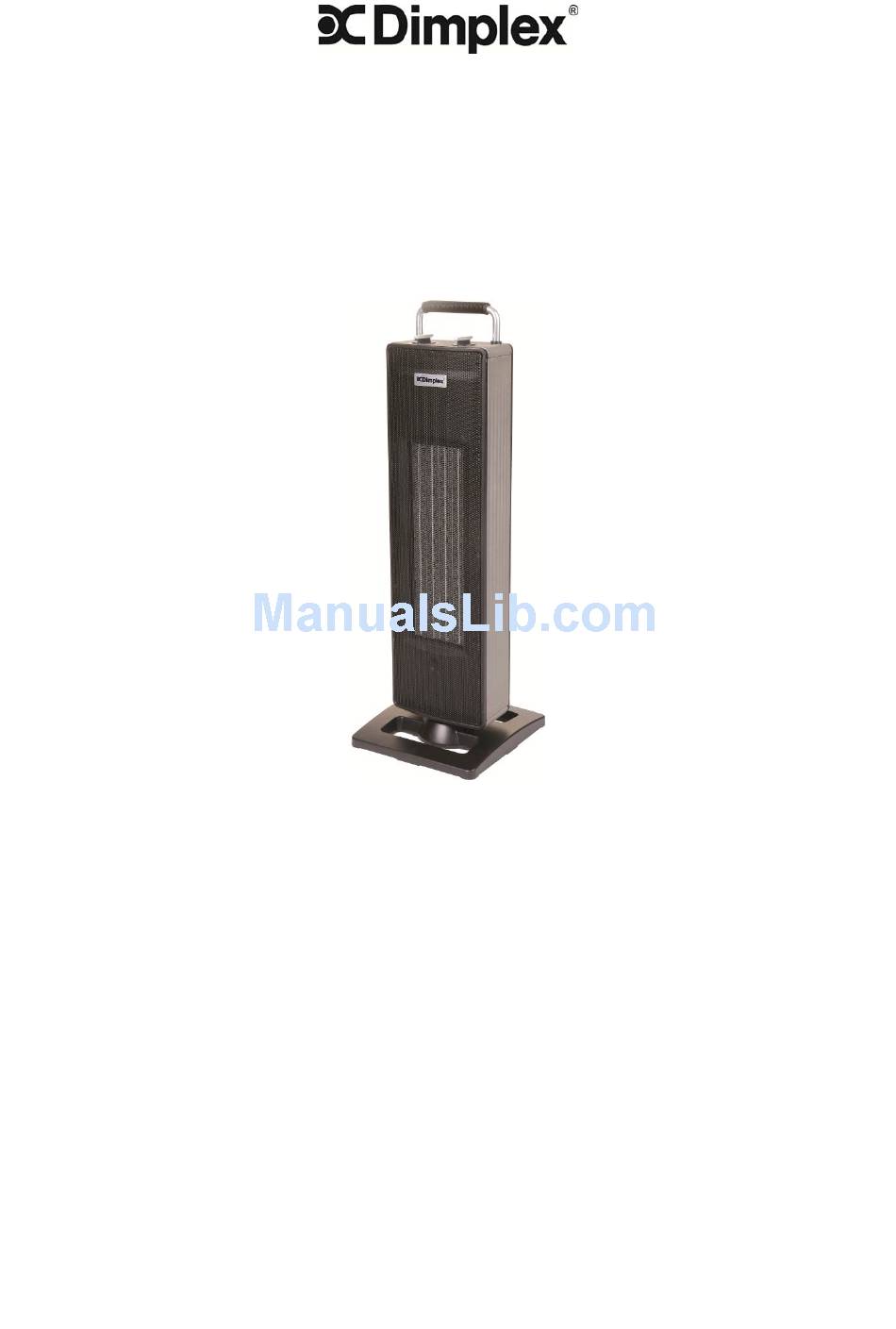

- Page 1 2.4KW CERAMIC HEATER WITH MANUAL CONTROLS DHCER24M User Manual Please read the instructions carefully before using the product and keep this user manual for future reference. ...
-
Page 2: Product Features
1. PRODUCT FEATURES 2.4kW heat output Choice of heat settings Double overheat protection Tip over safety protection Oscillating function Manual controls 12 month warranty ... -
Page 3: Safety Warnings
2. SAFETY WARNINGS Please operate the heater on a dry even surface. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety. Disconnect the heater from mains when not in use or cleaning. Do not operate the appliance with a damaged cord or plug. If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. It is not recommended to use an extension cord or power board on this appliance. Do not immerse cord, plug or any part of the appliance in water or any other liquid. Do not place the heater on or near any other source of heat. WARNING: do not cover the heater. This may cause the unit to overheat. A fire may occur if the heater is covered with or touches flammable material, including curtains, drapes, bedding etc. When in operation KEEP THE HEATER AWAY FROM SUCH MATERIALS. Do not use the heater in the immediate surroundings of bathtubs, showers, washing stands or swimming pools. Do not use the heater outdoors. When the heater is turned on for the first time, it may release a slight, harmless odor. This odor is a normal occurrence caused by the initial heating of the internal heating elements and should not occur again. Do not operate the heater in areas where flammable liquids are stored. ... -
Page 4: Assembly Instruction
3. ASSEMBLY INSTRUCTION Open the packaging, take the unit out and unscrew the base fixing nut. Insert the base into the bottom of the unit and screw on the base fixing nut. Turn the unit upright and place it on a flat or even surface before use. ... -
Page 5: Parts Description
4. PARTS DESCRIPTION 1. Base 2. Front Cover 3. Mesh Cover 4. Logo Nameplate 5. Control Knob 6. Knob Bezel 7. Handle Cover 8. Handle 9. Head Cover ... - Page 6 5. OPERATING INSTRUCTIONS First, connect the power cord to the correct power supply (220‐240V~/50Hz/ 10 amps). Power Setting Knob Rotate the knob to the “Off” position to turn off the unit. Rotate the knob to “Low” to turn the unit on at low heat. Rotate the knob to “Low Swing” to turn the unit on at low heat with oscillation. Rotate the knob to “High” to turn the unit on at high heat. ...
-
Page 7: Cleaning And Maintenance
6. CLEANING AND MAINTENANCE Make sure the power switch is turned off and the plug is disconnected from the socket before cleaning or maintenance. Otherwise, it may cause an electric shock. Cleaning the unit’s surface: Clean the surface with a damp cloth (or add some detergent). Do not use corrosive detergent or solvent to clean, such as Petrol/ Turpentine etc. Do not wash the unit directly with water. -
Page 8: Specification
7. SPECIFICATION Model No. DHCER24M Product name 2.4kW Ceramic Heater w/Manual Controls Voltage/Frequency 220‐240V~/50Hz Power 1400/2400W Speed ≥1.5 m/s Noise ≤50dB（1m） Tip over protection angle 45±5° Product size 633h x 221w x 209d (mm) N.W. 3.25kg G.W. …kg DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste is required to be disposed of separately. Glen Dimplex Australia Pty Ltd Glen Dimplex Australasia Ltd Unit 1, 21 Lionel Road 38 Harris Road Mount Waverley VIC 3149 East Tamaki, Auckland Phone: 1300 556 816 Phone: 09 274 8265 ...
