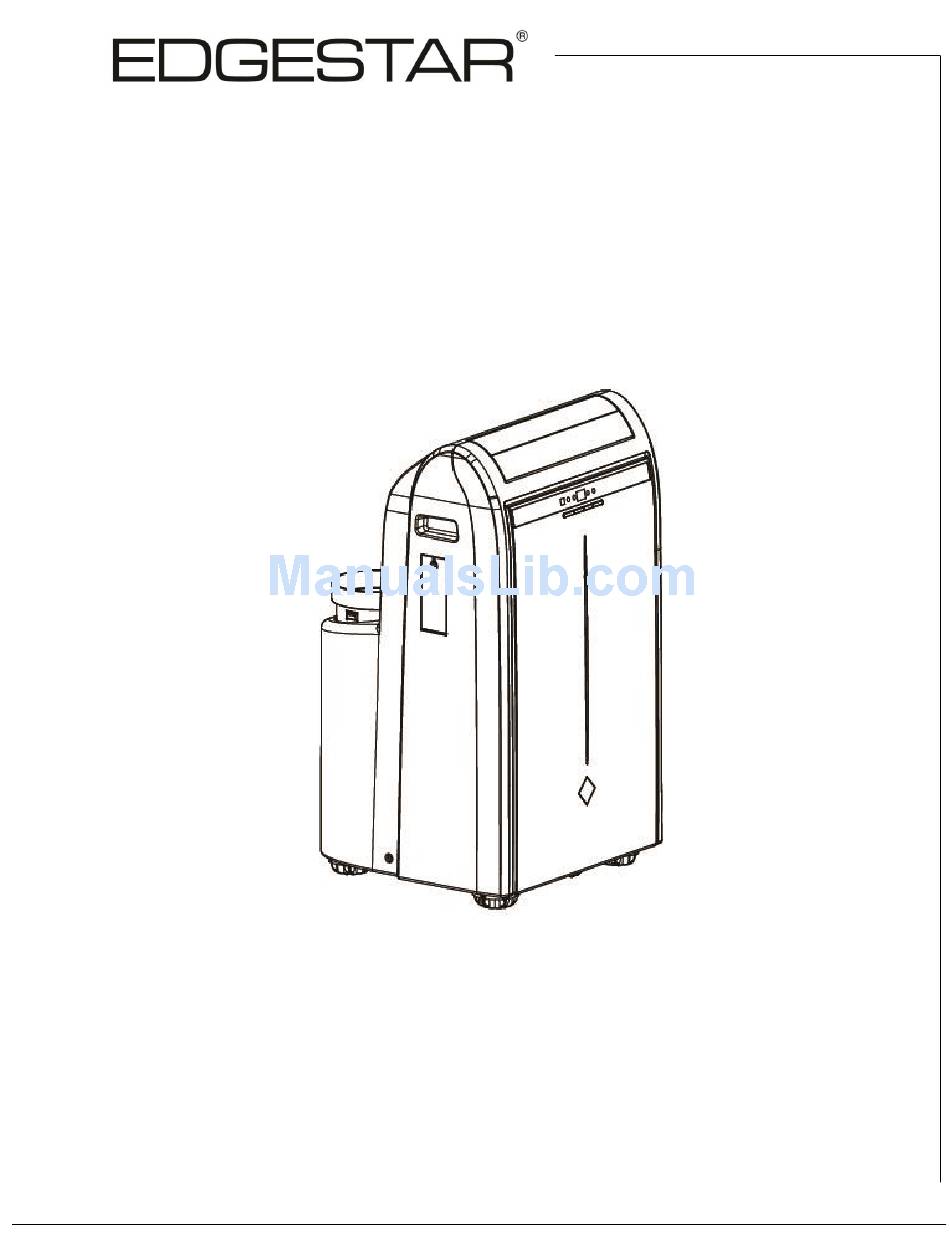

- Page 1 Portable Air Conditioner AP16000G Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. -
Page 3: Table Of Contents
Modes (Continued)..................13 ....................14 RROR ODES ENERGY SAVING GUIDE ................... 15 MAINTENANCE ....................16 ................... 16 LEANING THE UNIT ................. 16 LEANING THE PRE FILTER ................16 REPARATION FOR TORAGE TROUBLESHOOTING ..................17 SPECIFICATIONS ....................19 EDGESTAR LIMITED WARRANTY ..............20... -
Page 5: Introduction
Introduction Thank you for purchasing this EdgeStar portable air conditioner. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Parts Key: Front View 1. Air outlet (Louver) 2. Control panel 3. Handle 4. Remote control box 5. Caster 6. Upper air inlet grille 7. Air exhaust outlet 8. Lower air inlet grille Back View Edgestar Portable Air Conditioner... -
Page 7: Parts Included
Parts Included Suggested Tools- Phillips Screw Driver (Medium sized), Tape Measure/Ruler, Scissors, Saw (In the event that your window panel needs to be cut down in size for installation) Preparations for Installing the Window Kit NOTE: You may need to You must vent your portable air conditioner when running it in contact your electrician if cooling mode. -
Page 8: Window Kit Installation Instructions
3) Secure the window panel to the windowsill. NOTE: The window panel cannot be installed in windows less than 22” (559mm) wide as you will be unable to shut the exhaust cover Edgestar Portable Air Conditioner... - Page 9 If the inner width of the window is between 24” (718mm) and 36.5” (927mm) inclusive: 1) Open the window and place the adjustable window panel on the windowsill. 2) Slide the adjustment panel to fit the window frame width. If the inner width of the window is between 36.5”...
-
Page 10: Installation Of The Exhaust Hose
Line them up over the two tabs on the air exhaust outlet and firmly slide the joint A down until it clicks. To remove, make sure to push down on the two exhaust outlet tabs and then lift up. Edgestar Portable Air Conditioner... -
Page 11: Notes About The Exhaust Hose
Notes about the Exhaust Hose Your portable air conditioner is designed to exhaust condensate water that is collected from the air. This water, in either gaseous or droplet form, will be expelled out the exhaust port of the unit. Please take this into account when deciding how to vent it. 1. -
Page 12: Installation Of The Drain Hose
Attach one end of the drain hose to the drain port with the clip provided. Insert the rubber plug into the other end of the drain hose and secure with pipe hoop and attach to drain pipe clip. Edgestar Portable Air Conditioner... -
Page 13: Draining The Unit
Draining the Unit When the portable air conditioner is in cooling mode or dehumidify mode, it will remove moisture from the air. The condensed water from the air will be collected in an internal reservoir and will be evaporated and exhausted out of the exhaust hose. However, in very humid conditions, the internal reservoir may fill completely. -
Page 14: Operating Instructions
(up and down). Once the unit is up or down. powered on the louvers will open to allow air flow. The remote will allow you to adjust the louver setting during use. Once the unit is powered off the louvers will close. Edgestar Portable Air Conditioner... -
Page 15: Remote Control Overview
Remote Control Overview The remote control is used to operate all of your portable air conditioners functions. Use the remote control to change modes, fan speed, timer, and temperature settings and sleep mode. NOTES: Be careful not drop the remote control. Do not place the remote control in a location exposed to direct sunlight. - Page 16 1) Make sure the power cord is plugged into a power outlet. 2) Press the ON/OFF button on the remote. 3) Press the Mode button until the Fan Indicator light on the control panel lights up. 4) Press the Fan button to adjust fan speed. Edgestar Portable Air Conditioner...
-
Page 17: Modes
Modes (Continued) TIMER ON: While the unit is off press the Timer On button to set the unit to turn on at a certain time in either Cool, Dry, or Fan mode. After pressing this button, the icon disappears and the word "ON"... -
Page 18: Error Codes
Also check the evaporator and Overload malfunction condenser to ensure they are not blocked by any objects. If “H3” or “E8” continues please contact customer service. Outdoor tube Please contact customer service temperature sensor is open/short-circuited Edgestar Portable Air Conditioner... -
Page 19: Energy Saving Guide
Energy Saving Guide Read and follow the guide below to get the best performance and efficiency from your portable air conditioner: Do not cover the air outlet (exhaust) while in use. Do not place the unit in front of curtains or drapes- to ensure they do not obstruct the air intake. -
Page 20: Maintenance
2) Power off the unit, and clean or change the filters. 3) Unplug and carefully wind the power cord. 4) Remove the exhaust hose and duct connectors and keep them in a safe place. Edgestar Portable Air Conditioner... -
Page 21: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is Unit is not receiving Make sure the unit is not functioning at all. power. plugged in to a grounded outlet. LCDI power cord is Press the Reset button tripped. - Page 22 The filter may be dusty Clean the filter and or blocked. replace it if needed. Dirty condenser coils. Carefully vacuum the coils clean. Obstructed air intake Remove anything or exhaust ports. blocking the ports. Edgestar Portable Air Conditioner...
-
Page 23: Specifications
Specifications Description of product Portable Air Conditioner Model AP16000G Voltage/Frequency 220V~60Hz Input Power 4835W Current 12.88 A Color Grey Coolant R-410A Timer 24 Hour 33” x 19 3/4” x 18 1/8” Dimensions HxWxD Weight 101.4 lbs... -
Page 24: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. - Page 25 Web: http://www.edgestar.com E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2015 Living Direct, Inc. All rights reserved.
