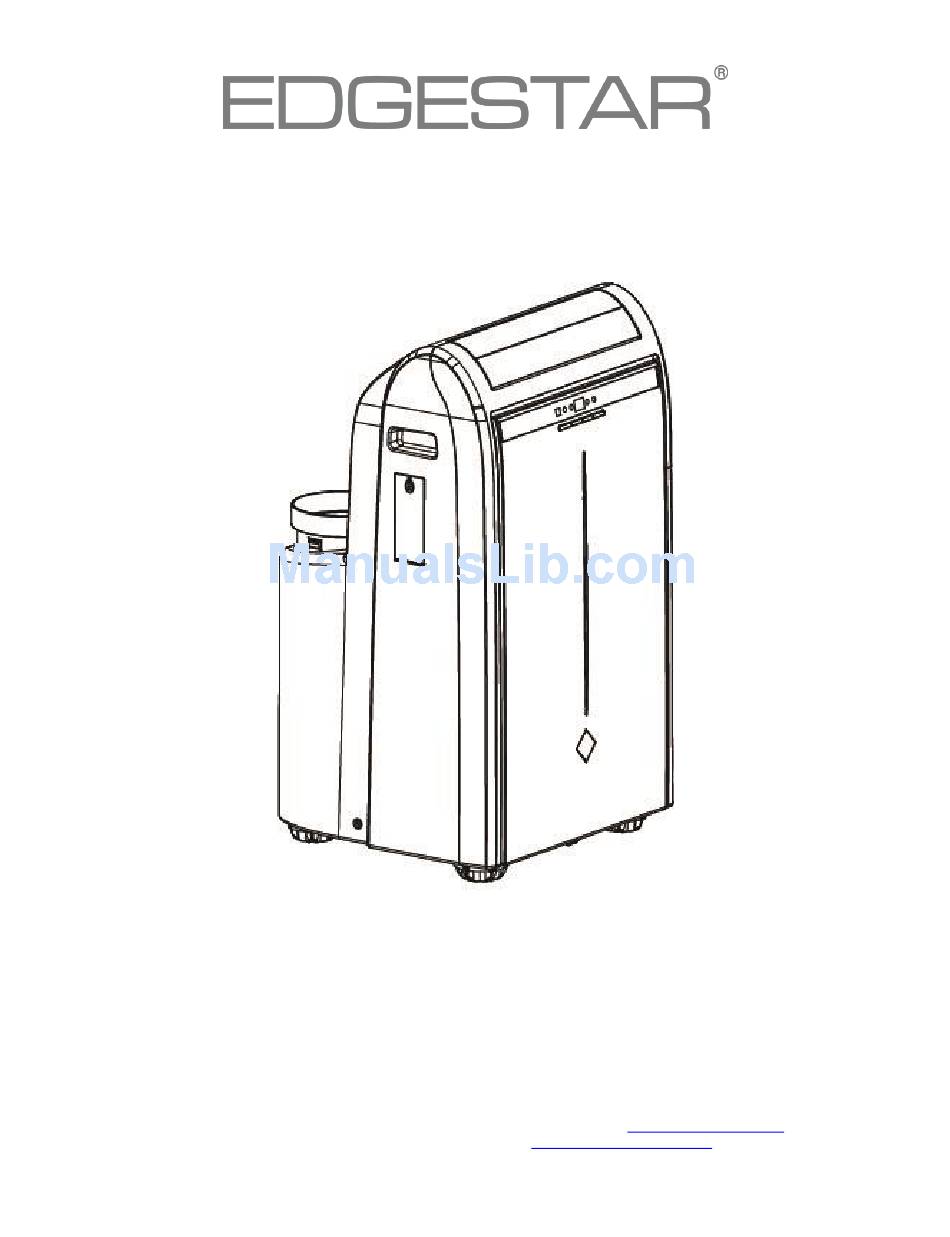

Portable Air Conditioner
AP16000G
Owner's Manual
For more information on other great EdgeStar products on the web, go to
http://www.edgestar.com
To use the EdgeStar self-diagnostic tool, go to
https://support.edgestar.com
V2.2-11102017

Advertisement

Table of Contents
loading

Related Manuals for EdgeStar AP16000G

Summary of Contents for EdgeStar AP16000G

  • Page 1 Portable Air Conditioner AP16000G Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.2-11102017...

  • Page 2: Important Safety Information

    Important Safety Information Improper handling can cause serious damage to the appliance and / or to the user. Please read the following safety information. Electrical Safety Improper handling can cause serious damage to the appliance and/or to the user. Please read the following safety information ...

  • Page 3: Operation Of Safety Plug

    2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. RESET TEST DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS.

  • Page 4: Table Of Contents

    Cleaning the Pre-Filter ..............................15 Preparation for Storage ..............................15 ENERGY SAVING GUIDE ............................16 TROUBLESHOOTING..............................17 ERROR CODES ................................19 SPECIFICATIONS ................................ 20 NEW PORTABLE AIR CONDITIONER BTU’S ......................21 What is SACC? ................................21 EDGESTAR LIMITED WARRANTY ..........................22...

  • Page 5: Introduction

    Introduction Thank you for purchasing this EdgeStar portable air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship.

  • Page 6: Parts Identification

    Parts Identification Front View Back View...

  • Page 7: Window Kit And Exhaust Hose Installation

    Window Kit and Exhaust Hose Installation Parts Included Suggested Tools Philips Screw Driver (Medium Size), Tape Measure / Ruler, Scissors, Saw (in the event that your window panel needs to be cut down in size for installation.)

  • Page 8: Preparations For Installing The Window Kit

    Preparations for Installing the Window Kit You must vent your portable air conditioner when running it in Cooling mode. Your unit includes a window exhaust kit that can be used to vent moisture out of a window. Before you begin, make sure that you have all the parts necessary for installation and that a suitable location is picked.
  • Page 9 Step 2 Cut the foam seal to the proper length and attach it to the windowsill. Step 3 Attach the window panel to the windowsill.  If the inner width of the window is between 22” and 24” wide: o Remove the adjustment panel from the window panel, and cut the window panel to the same width as the window frame opening.
  • Page 10  If the inner width of the window is between 36 ½” and 64” inclusive: o Open the window and place the extra window panel provided on the windowsill. o Slide the adjustment panel to fit the window frame width. o Secure the window panel to the windowsill with four large wood screws and four slider brackets.

  • Page 11: Installation Of The Exhaust Hose

    Installation of the Exhaust Hose Step 1 Connect the two pieces of the window exhaust adapter, fix them together, and press the clasp forcibly into the groove. Step 2 Install the hose at the rear clip. Aim the opening of the hose at the round mouth of the rear clip.

  • Page 12: Notes About The Exhaust Hose

    Notes About the Exhaust Hose Your portable air conditioner is designed to exhaust condensed water that is collected from the air. This water, in either gaseous or droplet form, will be expelled out of the exhaust port of the unit. Please take this into account when deciding how to vent it.

  • Page 13: Installing The Drain Hose

    Installing the Drain Hose Note: The drainage hose must be installed before using this unit. If it is not, a block can form in the drain and prevent the unit from functioning normally. Step 1 Remove the rubber plug drain cap from the drainage port. Step 2 Attach the drain pipe clip to the back panel of the air conditioner near the drain port with the screw.

  • Page 14: Draining The Unit

    Draining the Unit When the portable air conditioner is in cooling mode or dehumidify mode, it will remove moisture from the air. The condensed water from the air will be collected in an internal reservoir and will be evaporated and exhausted out of the exhaust hose. However, in very humid conditions, the internal reservoir may fill completely.

  • Page 15: Operating Instructions

    Operating Instructions Control Panel Overview On / Off Button Press the button once to manually turn the unit on. Press once more to turn the unit off. Button In COOL, press the button to decrease or increase the temperature by 1° degree Fahrenheit. Continue to press to get to desired temperature. Press the MODE button to cycle between modes: COOL ...

  • Page 16: Remote Control

    Remote Control The remote control is used to operate all of your portable air conditioner’s functions. Use the remote control to change modes, fan speed, timer, and temperature settings and sleep mode. Note: Be careful not to drop the remote control. Do not place the remote control in a location exposed to direct sunlight.

  • Page 17: Modes And Features

    Modes and Features Auto When selecting Auto Mode, the air conditioner will operate automatically according to the ambient room temperature. The set temperature can’t be adjusted unless the unit is switched to Cool Mode. Cool If the ambient temperature drops below the temperature you selected, the compressor turns off and the unit functions with the fan only.
  • Page 18 Timer On While the unit is off press the Timer On button to set the unit to turn on at a certain time in either Cool, Dry, or Fan mode. After pressing this button, the icon disappears and the word "ON"...

  • Page 19: Maintenance

    Clean the pre-filter periodically. If the unit is used in a dusty environment you may need to clean it on a weekly basis. Warning: Never operate the unit without the pre-filter. Note: Filters should be replaced every 2 – 3 months or as needed. Contact EdgeStar retailers for replacement filters. Preparation for Storage...

  • Page 20: Energy Saving Guide

    Energy Saving Guide Read and follow the guide below to get the best performance and efficiency from your portable air conditioner:  Do not cover the air outlet (exhaust) while the unit is in use.  Do not place the unit in front of curtains or drapes to ensure they do not obstruct the air intake.

  • Page 21: Troubleshooting

    Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is not The unit is not receiving Make sure the unit is plugged functioning at all. power. in to a grounded outlet. The LCDI power cord is Press the Reset button on the tripped.
  • Page 22 Issue Possible Cause Solution My air conditioner is not cooling The unit is not operating in Set the unit to be in cooling at all. cooling mode. mode, and lower the set temperature (pg. 14). The compressor is not on. The compressor may take up to 3 minutes to turn on, or longer if it is too warm.

  • Page 23: Error Codes

    Error Codes The air conditioner may display an error code if it is not operating correctly. Below are the list of error codes and their description. Error Code Possible Cause Solution This is the overcurrent protection. Disconnect power to the unit, wait 10 minutes, then turn the unit back on.

  • Page 24: Specifications

    Specifications Description of product Portable Air Conditioner Model AP16000G Voltage / Frequency AC 220 V ~ 60 Hz Input Power 4835 W Current 9.7 A Cooling Capacity (SACC) 10000 BTU Cooling Capacity (ASHRAE) 16000 BTU Color Grey Coolant R-410A Timer 24 Hour 33”...

  • Page 25: New Portable Air Conditioner Btu's

    New Portable Air Conditioner BTU’s You may notice that the cooling capacities (in British Thermal Units or BTU’s) labeled on portable air conditioners (PAC’s) are now lower than on models produced prior to October 1, 2017. This is because the labeling on new productions of PAC’s must follow a new federal test standard that was established by the Department of Energy: 10 CFR 430, subpart B, appendix The SACC rating shown on your new PAC is a result of this new standard.

  • Page 26: Edgestar Limited Warranty

    PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. All replacement parts or products will be new, remanufactured, or refurbished.
