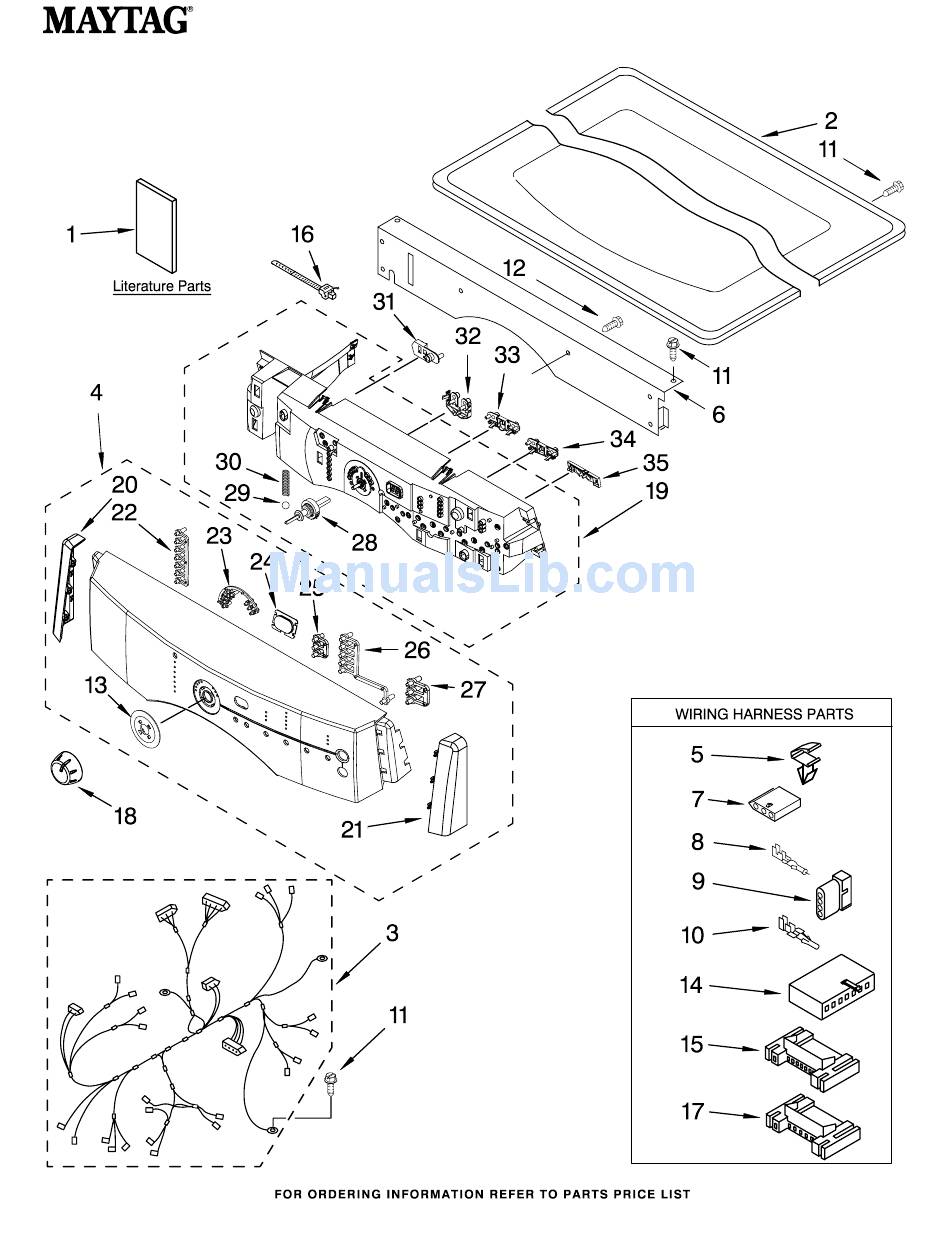

- Page 1 TOP AND CONSOLE PARTS Gas Dryer For Model: MGD9700SQ0, MGD9700SB0 (White) (Black) 2−08 Printed in U.S.A. (LAN) Part No. 8181445 Rev. C...
- Page 2 353424 Connector, Sensor 94614 Terminal 3936144 Plug, Terminal 94613 Terminal 3390647 Screw, 8−18 x 1/2 488886 Screw, 8−18 x 1/2 8542690 Bezel, Cycle 3936150 Connector, 7−Circuit For Model: MGD9700SQ0, MGD9700SB0 (White) (Black) Illus. Part DESCRIPTION 3395683 Connector, (Motor) 3391018 Tie, Cable 2203186 Connector, 5−Circuit...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: MGD9700SQ0, MGD9700SB0 (White) (Black) 8181445... - Page 4 3388672 Pulley Assembly 3978776 Bracket, Gas Pipe 8066120 Lever, Snap Switch 16 W10167612 Wire, Belt Switch 17 W10128772 Sound Panel 18 W10121334 Washer CABINET PARTS For Model: MGD9700SQ0, MGD9700SB0 (White) (Black) Illus. Part DESCRIPTION 19 W10128087 Assembly, Door Switch 690997 Tri Ring 8066115 Cover−Plate...
- Page 5 BULKHEAD PARTS For Model: MGD9700SQ0, MGD9700SB0 (White) (Black) 8181445...
- Page 6 693995 Screw, 8−18 x 3/8 16 W10001120 Nut, 3/8−16 (L.H.) 8520836 Bulkhead, Rear 3387459 Washer, Support 8575325 Shaft, L.H. Thread 690997 Ring, Tri BULKHEAD PARTS For Model: MGD9700SQ0, MGD9700SB0 (White) (Black) Illus. Part DESCRIPTION 8536973 Roller, Support 8563745 Exhaust Pipe...
-
Page 7: Burner Assembly
8576353 BURNER ASSEMBLY For Model: MGD9700SQ0, MGD9700SB0 (White) (Black) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−153A 8181445... - Page 8 8576353 BURNER ASSEMBLY For Model: MGD9700SQ0, MGD9700SB0 (White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8576353 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2...
-
Page 9: Door Parts
8533957 Screw, 10−16 x 1/2 9742177 Screw, 8−18 x 5/8 8529539 Bracket, Handle 8541011 Pad, Door Handle 7 W10133974 Handle, Door 3393008 Screw, 10−16 x 1/2 8181445 DOOR PARTS For Model: MGD9700SQ0, MGD9700SB0 (White) (Black) Illus. Part DESCRIPTION Door & Window Assembly (Includes Illus. - Page 10 OPTIONAL PARTS (NOT INCLUDED) For Model: MGD9700SQ0, MGD9700SB0 (White) Illus. Part PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray 786020 Black ACCESSORY PARTS 8529894 Kit, 8541503 Kit, 8522199 Kit, Dryer 80047 Kit,...
