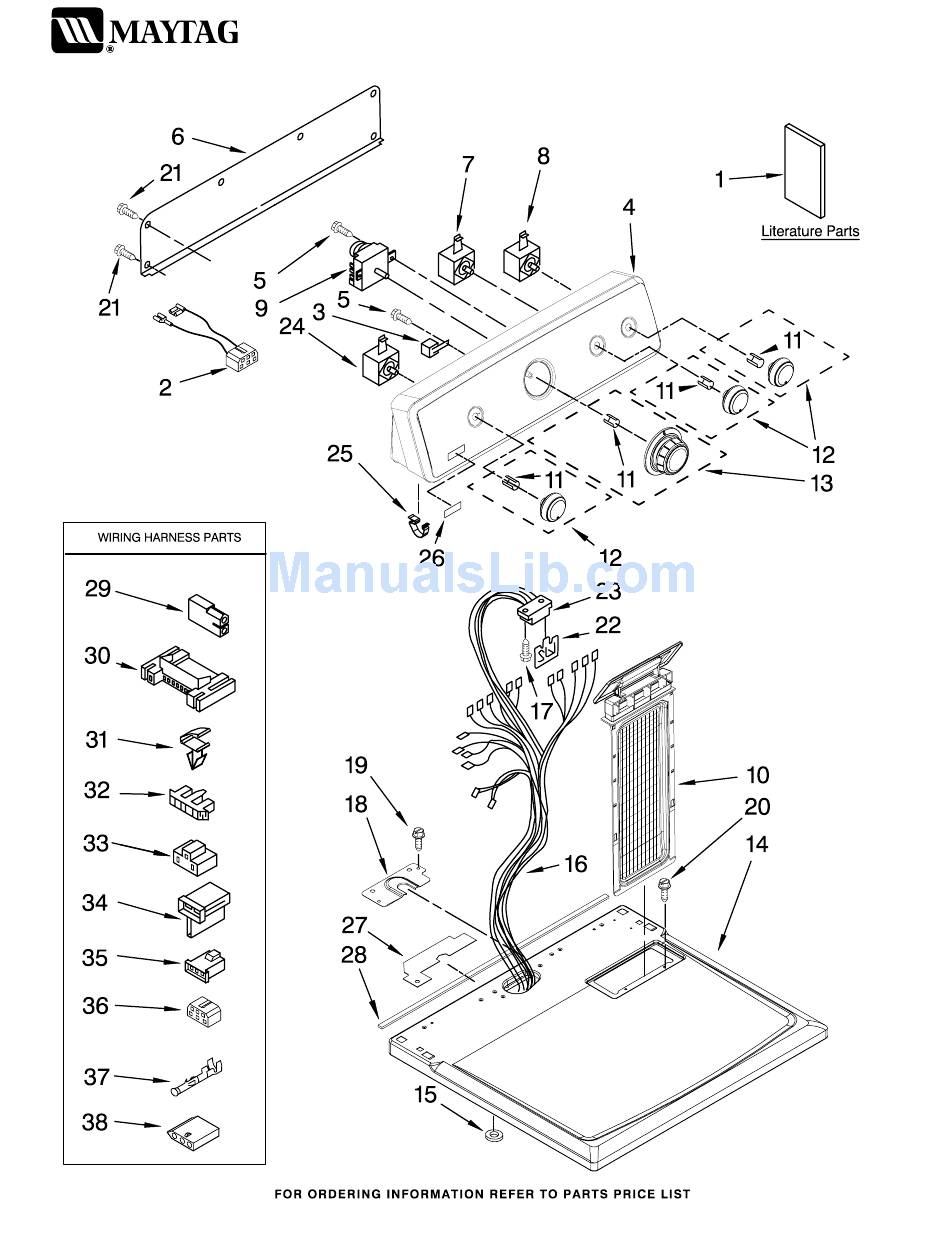

TOP AND CONSOLE PARTS
29"GAS DRYER
For Model: MGD5800TW0
(White)
10−07 Litho in U.S.A.(drd)
Part No. W10118235 Rev. B
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MGD5800TW0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maytag MGD5800TW0

Summary of Contents for Maytag MGD5800TW0

  • Page 1 TOP AND CONSOLE PARTS 29"GAS DRYER For Model: MGD5800TW0 (White) 10−07 Litho in U.S.A.(drd) Part No. W10118235 Rev. B...
  • Page 2 6 W10112576 Panel, Rear Console 8530169 Switch, Temperature 8 W10117655 Switch, Push−To−Start 8566184 Timer Assembly 60 HZ. TOP AND CONSOLE PARTS For Model: MGD5800TW0 (White) Illus. Part DESCRIPTION Screen, Lint 8565972 White 8536939 Clip, Spring 12 W10110035 Knob, Control (3)

  • Page 3: Cabinet Parts

    CABINET PARTS For Model: MGD5800TW0 (White) W10118235...
  • Page 4 3980175 Clamp−Elbow 3406107 Door Switch Assembly 697773 Screw, 6−20 x 7/8 98669 Locator, Top 341029 Clamp−Pipe 3404413 Plug−Hole 18849 Pad, Top Hinge CABINET PARTS For Model: MGD5800TW0 (White) Illus. Part DESCRIPTION 3392100 Foot, Dryer 279810 Foot−Optional (Extended Length) (Package of 2) (Not Included.)
  • Page 5 BULKHEAD PARTS For Model: MGD5800TW0 (White) W10118235...
  • Page 6 BULKHEAD PARTS For Model: MGD5800TW0 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 487909 Screw, 8−15 x 1/2 3392519 Fuse, Thermal (91 C) 8066086 Drum Hole...

  • Page 7: Burner Assembly

    8318272 BURNER ASSEMBLY For Model: MGD5800TW0 (White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−150 W10118235...
  • Page 8 8318272 BURNER ASSEMBLY For Model: MGD5800TW0 USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8318272 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2 693986 Base, Burner 3387057 Screw, 8−18 x 3/8...
