1

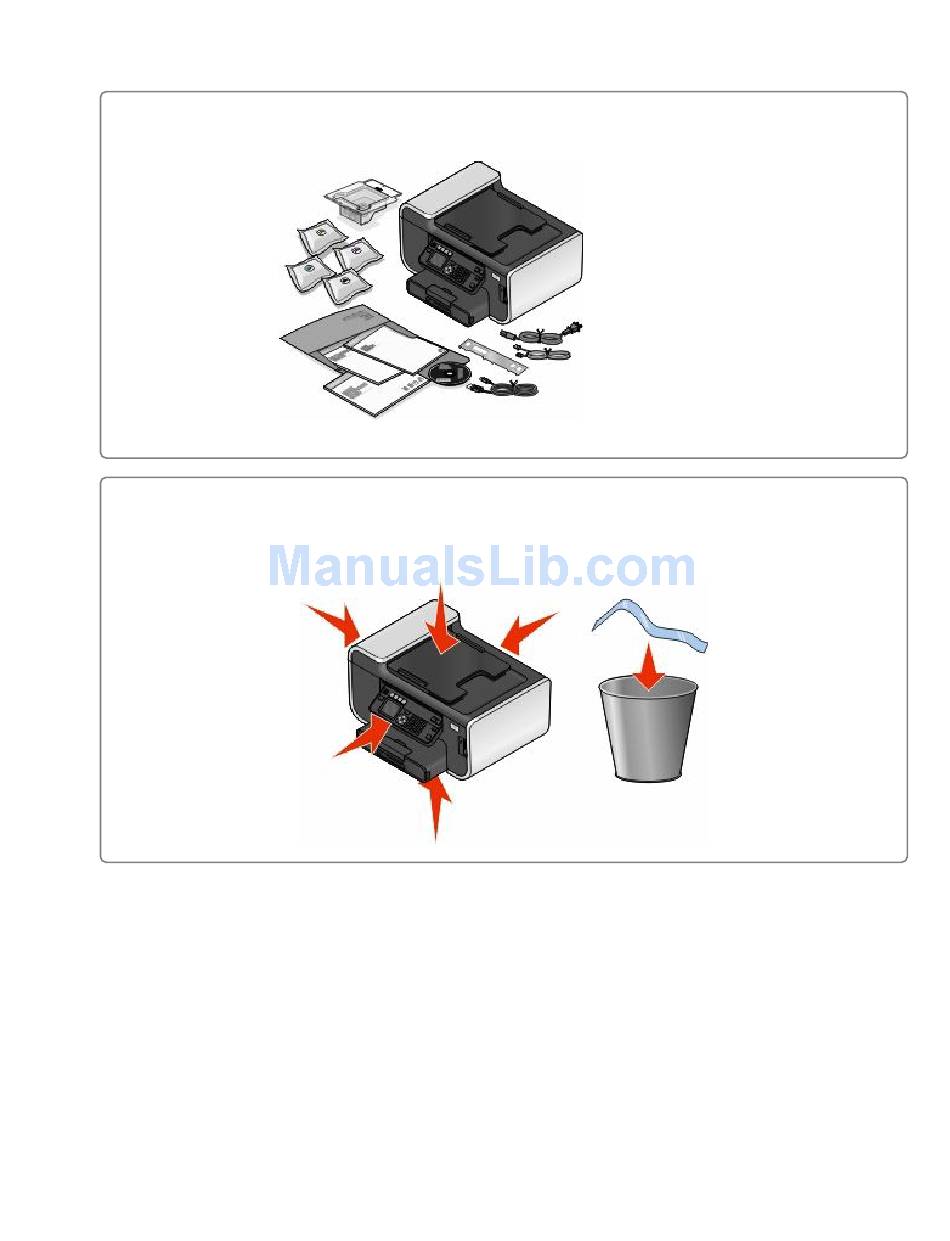

Unpack printer
2
Remove tape and packing material from all areas of the
printer
Lexmark Pro700 Series Installation
Notes:
Place the printer near the computer
•
during setup. If you're setting up on
a wireless network, then you may
move the printer after setup is
complete.
Do not attach the USB cable until
•
prompted to do so.
The packaged printhead is shipped
•
inside the printer.
Contents may vary by model and
•
region.
Advertisement
Related Manuals for Lexmark Pro700 Series
Summary of Contents for Lexmark Pro700 Series
-
Page 1: Unpack Printer
Lexmark Pro700 Series Installation Unpack printer Notes: Place the printer near the computer • during setup. If you're setting up on a wireless network, then you may move the printer after setup is complete. Do not attach the USB cable until •... - Page 2 Lexmark Pro700 Series Installation Open printer and remove packaged printhead If necessary, insert correct (1) language overlay and install (2) protective cover...
- Page 3 Lexmark Pro700 Series Installation Lock the protective cover in place Close printer...
- Page 4 Lexmark Pro700 Series Installation Pull paper tray completely out of printer Move paper guides to the sides For A4 or Legal, extend paper tray...
- Page 5 Lexmark Pro700 Series Installation Load paper and adjust paper guides Note: Do not load paper past the maximum height indicator line as shown in step 2. Insert paper tray...
- Page 6 Lexmark Pro700 Series Installation Connect power cord only Note: DO NOT attach the USB cable yet. CAUTION—POTENTIAL INJURY: Read the safety information included with this product before connecting power or making any cabling connections. Make sure printer is on Follow prompts on the printer control panel Follow the prompts on the printer control panel.
- Page 7 Lexmark Pro700 Series Installation Install printhead and ink cartridges If you need to install the printhead and cartridges, click Continue. If not, you can close this window. Open printer and remove any tape from latch Note: The carriage moves to the printhead installation position as shown.
- Page 8 Lexmark Pro700 Series Installation Remove printhead from disposable container Insert printhead and close latch until it clicks Close printer...
- Page 9 Lexmark Pro700 Series Installation Open printer Note: The printhead moves to the cartridge installation position as shown. First, insert each color ink cartridge. Then, use two hands to install black cartridge.
- Page 10 Lexmark Pro700 Series Installation Close printer Flip and extend exit tray paper stop Notes: Extend the paper exit tray for • A4/Legal. The paper stop holds paper as it exits • the printer. Press OK to print alignment page Notes: Do not remove the page until •...
