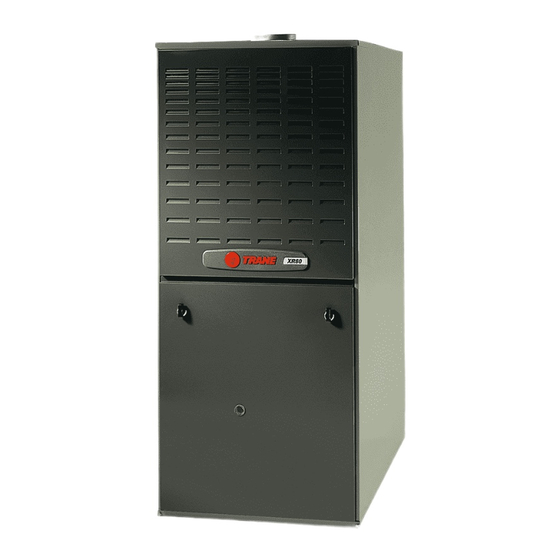

- Page 1 Upflow/Horizontal Right or Upflow/Horizontal Left Induced Draft Gas Furnace XR 80 TUD1A040A9241A, TUD1A040A9301A, TUD1A060A9241A, TUD1A060A9361A, TUD1B060A9361A, TUD1B080A9241A, TUD1B080A9361A, TUD1B080A9481A, TUD1C080A9601A, TUD1B100A9361A, TUD1B100A9451A, TUD1C100A9481A, TUD1C100A9601A, TUD1D100A9721A, TUD1C120A9541A, TUD1D120A9601A, TUD1D140A9601A Single-Stage Fan Assisted Combustion System PUB. NO. 22-1640-13...
-
Page 2: General Features
Low energy power venter control and includes self diagnostics for b. Vent proving pressure switch. ease of service. Also contains connec- tion points for E.A.C./humidifier. © 2015 Trane All Rights Reserved Pub. No. 22-1640-13... -
Page 3: Table Of Contents
Contents General Features Features and Benefits Standard Equipment Optional Equipment General Data TUD1A040A9241A TUD1A040A9301A TUD1A060A9241A TUD1A060A9361A TUD1B060A9361A TUD1B080A9241A TUD1B080A9361A TUD1B080A9481A TUD1C080A9601A TUD1B100A9361A TUD1B100A9451A TUD1C100A9481A TUD1C100A9601A TUD1D100A9721A TUD1C120A9541A TUD1D120A9601A TUD1D140A9601A Performance Data Field Wiring Dimensions Electrical Data Pub. No. 22-1640-13... -
Page 4: Features And Benefits
Features and Benefits XR 80 UPFLOW/HORIZONTAL RIGHT or LEFT STANDARD EQUIPMENT • • Gasketed blower door Power supply 115/1/60 • • Single wire twinning Multi-port In-shot burners • • Selectable cooling fan off delay Integrated solid state control with • self diagnostics Left-right gas connection •... -
Page 5: General Data
General Data PRODUCT SPECIFICATIONS 1 MODEL TUD1A040A9241A TUD1A060A9241A TUD1A040A9301A TYPE Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal RATINGS 2 Input BTUH 40,000 60,000 40,000 Capacity BTUH (ICS) 3 32,000 47,000 32,000 AFUE 80.0 80.0 80.0 Temp. rise (Min.-Max.) °F. 30 - 60 35 - 65 30 - 60... -
Page 6: Tud1A060A9361A
General Data PRODUCT SPECIFICATIONS 1 MODEL TUD1A060A9361A TUD1B060A9361A TUD1B080A9241A TYPE Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal RATINGS 2 Input BTUH 60,000 60,000 80,000 Capacity BTUH (ICS) 3 47,000 47,000 64,000 AFUE 80.0 80.0 80.0 Temp. rise (Min.-Max.) °F. 30 - 60 30 - 60 50 - 80... -
Page 7: Tud1B080A9361A
General Data PRODUCT SPECIFICATIONS 1 MODEL TUD1B080A9361A TUD1B080A9481A TUD1C080A9601A TYPE Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal RATINGS 2 Input BTUH 80,000 80,000 80,000 Capacity BTUH (ICS) 3 63,000 64,000 64,000 AFUE 80.0 80.0 80.0 Temp. rise (Min.-Max.) °F. 30 - 60 30 - 60 25 - 55... - Page 8 General Data PRODUCT SPECIFICATIONS 1 MODEL TUD1B100A9361A TUD1B100A9451A TUD1C100A9481A TUD1C100A9601A TYPE Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal RATINGS 2 Input BTUH 100,000 100,000 100,000 100,000 Capacity BTUH (ICS) 3 79,000 79,000 79,000 79,000 AFUE 80.0 80.0 80.0...
- Page 9 General Data PRODUCT SPECIFICATIONS 1 MODEL TUD1D100A9721A TUD1C120A9541A TUD1D120A9601A TUD1D140A9601A TYPE Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal Upflow / Horizontal RATINGS 2 Input BTUH 100,000 120,000 120,000 140,000 Capacity BTUH (ICS) 3 80000 96,000 96,000 111,000 AFUE 80.0 80.0 80.0...
-
Page 10: Tud1B080A9481A
Performance Data FURNACE AIRFLOW (CFM) VS. STATIC PRESSURE (ins. w.g.) MODEL SPEED TAP 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 HIGH - Black 1018 1004 D1A040A9241A MED.-HIGH - Blue MED.-LOW - Yellow LOW - Red HIGH - Black 1307 1262 1211... - Page 11 Performance Data FURNACE AIRFLOW (CFM) VS. STATIC PRESSURE (ins. w.g.) MODEL SPEED TAP 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 TUD1D100A9721A HIGH - Black 2484 2458 2432 2387 2342 2275 2208 2125 2041 BOTTOM AND LEFT MED.-HIGH - Blue SIDE RETURN MED.-LOW - Yellow NOTE...
-
Page 12: Field Wiring
Field Wiring FIELD WIRING DIAGRAM FOR HEATING ONLY From Dwg.. 21B341437 Rev. 1 FIELD WIRING DIAGRAM FOR SINGLE STAGE HEATING/COOLING (OUTDOOR SECTION WITHOUT TRANSFORMER) From Dwg.. 21B341436 Rev. 1 Pub. No. 22-1640-13... - Page 13 Field Wiring From Dwg.. 21B341422 Rev. 1 From Dwg.. 21B341423 Rev. 1 Pub. No. 22-1640-13...
-
Page 14: Dimensions
Dimensions Pub. No. 22-1640-13... -
Page 15: Electrical Data
Electrical Data WIRING DIAGRAM FOR GAS FURNACES Pub. No. 22-1640-13... - Page 16 SCHEMATIC DIAGRAM FOR GAS FURNACES File No. PL-UN-FURN-TDD-D-1 3/98 04/15 Trane 6200 Troup Highway Tyler, TX 75707 Since Trane has a policy of continuous product and product data improvement, it reserves the right to www.trane.com change design and specifications without notice.
