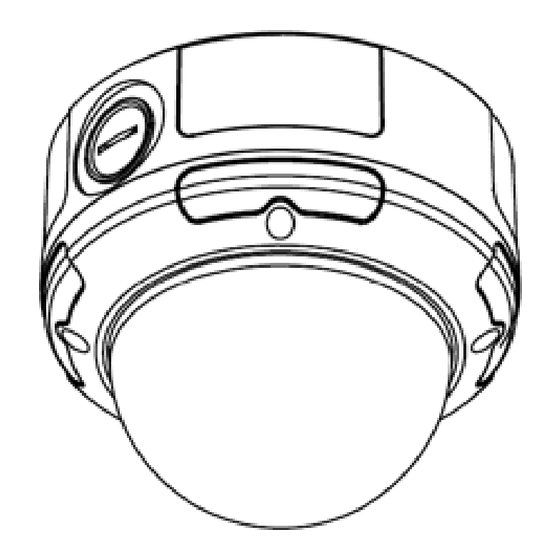

Okina TV8VDX-8AVF User Manual

Hd tvi 1080p icr osd 36 ir vandal dome camera
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
TV8VDX-8AVF
HD TVI 1080P ICR OSD 36 IR
FEATURES
•
HD TVI - 1920 x 1080 @ 30fps
•
1/2.8" Sony CMOS, 2.0 Megapixel
•
2.8~12mm Vari-focal Lens
•
36 IR LED; IR distance 80ft / 25m
•
0.02 Lux (F1.2 , AGC ON) / 0 Lux IR on
•
Dual Power 12V DC / 24V AC
12V DC: 720mA / 8.64W
24V AC: 535mA / 7.4W
•
IP66 Rating
Please read Manual before attempting to use this product.
Specifications and appearance are subject to change without notice.
Copyright © 2015. All Rights Reserved.
Vandal Dome Camera
USER MANUAL
TVI-14
R201502-V23

Advertisement

loading

Related Manuals for Okina TV8VDX-8AVF

Summary of Contents for Okina TV8VDX-8AVF

  • Page 1 TV8VDX-8AVF HD TVI 1080P ICR OSD 36 IR Vandal Dome Camera USER MANUAL FEATURES • HD TVI - 1920 x 1080 @ 30fps • 1/2.8" Sony CMOS, 2.0 Megapixel • 2.8~12mm Vari-focal Lens • 36 IR LED; IR distance 80ft / 25m •...

  • Page 2: Limited Warranty

    When the video product exhibits a distinct change in performance. LIMITED WARRANTY OKINA USA products are covered under warranty for one (1) year from the date of purchase. The warranty will automatically be voided if any of the following occurs: 1.

  • Page 3: Package Contents

    PACKAGE CONTENTS One (1) HD TVI Vandal Proof Dome Camera with power/video cable One (1) Allen Wrench Four (4) Mounting Screws Four (4) Wall Anchors Four (4) Screw Washers One (1) Mounting Sticker Template One (1) User Manual Optional Bracket: MB-8VD Manual * For any returns, please include all components listed above with original packaging in Resalable Condition.
  • Page 4 ↲ MAIN MENU 1. LENS MANUAL 2. EXPOSURE 3. BACKLIGHT ↲ 4. WHITE BAL ↲ 5. DAY&NIGHT 6. NR ↲ ↲ 7. SPECIAL ↲ 8. ADJUST 9. RESET 10. EXIT LENS INDOOR LENS OUTDOOR Manual (Default) Fixed or Vari-Focal lens can be installed on this camera. Manual –...
  • Page 5 SENSE UP Allow user selectable digital show shutter speed in order to allow extra light into a camera thereby providing higher sensitivity in low light conditions. ACCE (D-WDR) Stands for Adaptive Contrast and Color Enhancement which is equivalent to dynamic range reduction technique.
  • Page 6 2DNR OFF, ON (ON) 3DNR ON (ON) SMART NR OFF (OFF) SENSITIVITY 0~100 (50) RETURN RET / END LEVEL 0!100 (85) START AGC 0~100 (0) END AGC 0~100 (0) RETURN RET / END RETURN RET / END SMART NR Avoid over exposure problem when he camera is focused on a wall area. SPECIAL SPECIAL CAM TITLE...
  • Page 7 DEFAULT RETURN RET / END PRIVACY OFF (default) SELECT AREA1~AREA8 DISPLAY COLOR POSITION TOP, LEFT, TOP (default) RIGHT, BOTTOM LEFT, BOTTOM INV. RIGHT, RET, MOASTIC AGAIN COLOR 0~15 (2) TRANS 0~3 (3) DEFAULT RETURN RET / END LANGUAGE ENG / JPN / CHN1/ CHN2 / KOR / GER / FRA / ITA / SPA / POL / RUS / POR / NED / TUR / HEB / ARB DEFECT LIVE...

  • Page 8: Specifications
