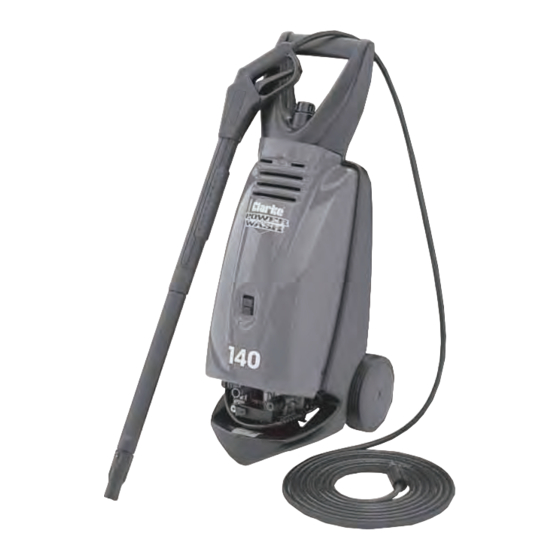

- Page 1 COLD WATER WASHER COLD WATER WASHER Model Nos. ELS140, 140R & ELS150 Part Nos. 7320610, 7320615 & 7320620 1203 OPERATING & MAINTENANCE INSTRUCTIONS...
- Page 2 Weight Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machines data plate PARTS &...
-
Page 3: Table Of Contents
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the dote of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. -
Page 4: Safety Precautions
Never operate the machine with the covers removed. Do not, attempt any electrical or mechanical repair. If you have a problem with your machine contact your local dealer or Clarke Customer Services Dept., tel: 020 8556 4443 Never supply any liquid other than water to the water inlet. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: THIS MACHINE MUST BE EARTHED. This product is provided with a standard 13 amp, 230 volt (50Hz). BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing at any time, ensure that a plug of identical specification is used. IMPORTANT: The wires in the mains lead should be wired up in accordance with the following colour code: Green &... - Page 6 ASSEMBLY AND PREPARATION The machine is supplied fully assembled except as detailed below. Model ELS140 Fig.1 The lance is in two sections, the high pressure hose being integral with the lance handle and trigger assembly. Assemble by slotting the spigot end of the lance into the handle assembly.
-
Page 7: Operation
Fig.4 All Models Screw the loose end of the high pressure hose from the Lance, into the high pressure outlet at the front of the machine, shown at C Fig. 2. Take care not to cross thread the fine threads. The low pressure water inlet, shown at D, Fig. - Page 8 ELS 140 Water pressure is regulated by turning the adjuster at the nozzle end of the lance, (as shown by the arrows on the ferrule), ANTICLOCKWISE to INCREASE pressure and CLOCKWISE to DECREASE, (looking from the handle end). Fig.5 If you desire a fan spray, turn the nozzle fully anticlockwise - for a high pressure pencil jet, turn it fully clockwise.
- Page 9 Max. provides a mixture strength of approx. 15:1...Min-approx. 1000:1. Use ONLY those detergents specifically designed for use with Power Washers. We recommend the use of CLARKE Traffic Film Remover, which is a powerful low foaming agent for car cleaning, patio cleaning etc., or CLARKE Wash & Wax, both available from your CLARKE dealer.
-
Page 10: Maintenance
MAINTENANCE WARNING: Ensure the plug is removed from the socket before carrying out any adjustment, servicing or maintenance. AFTER EACH USE When using chemical detergents, always ensure the system is thoroughly flushed out after use as described above. Ensure the hoses and power cable are coiled and properly stowed. DO NOT allow them to be left casually, in a heap. -
Page 11: Troubleshooting
3. No water due to clogged 3. Clean water filter inlet filter Oil leak Worn seals Contact your CLARKE Dealer 1. Plug is not connected 1. Check plug and lead and Motor does not start properly. have them replaced by a... - Page 12 FPELS14003 Motor w/Pump Assy. (ELS140) FPELS14004 Motor w/Pump Assy. (ELS150) FPELS15004 Hydraulic cut out FPELS14005 High Press. Hose w/Gun assy. (ELS140) FPELS14006 High Press. Hose w/Gun assy. 10M (ELS140R) FPELS140R06 High Press. Hose w/Gun assy. (ELS150) FPELS15006 Lance (ELS140) FPELS14007...
-
Page 13: Accessories
ACCESSORIES A range of accessories designed for use with your washer are available from your CLARKE dealer, as follows: ELS140 Part No. Rotary Brush ............7310010 Turbo Nozzle ............7310000 Car Brush ............. 7310020 Water Sandblaster ..........7310015 Drain Cleaner ............. 7310025 Foam Lance with Detergent Bottle ....
