Summary of Contents for Clarke POWER WASH EHD 130

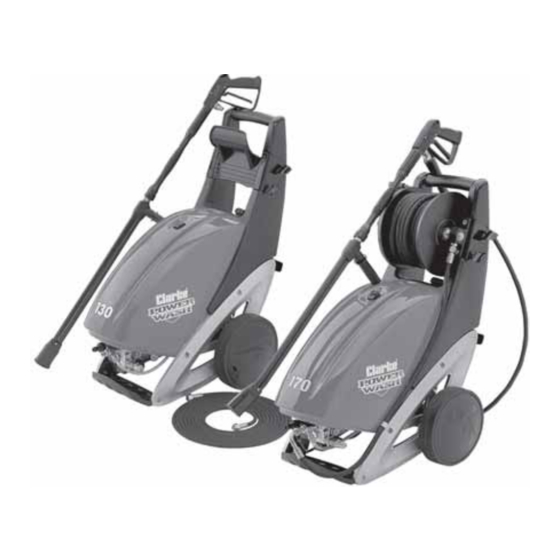

- Page 1 POWER WASHER POWER WASHER MODELS EHD 130, 160 & 170 MODELS EHD 130, 160 & 170 PART Nos. 7330560 , 7330565 & 7330570 OPERATING & MAINTENANCE INSTRUCTIONS 0205...
-
Page 2: Table Of Contents
Power Washer giving you long and satisfactory service. GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. -
Page 3: Safety Precautions
Never operate the machine with any of the covers removed. Do not, attempt any electrical or mechanical repair. If you have a problem with your machine contact your local dealer or Clarke Customer Services Dept., tel: 020 8998 7400 Never supply any liquid other than water to the water inlet. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: THIS MACHINE MUST BE EARTHED. EHD130 Connect the mains lead to a standard, 240 Volt (50Hz) electrical supply through a suitably fused isolator switch, preferably via a Residual Circuit Breaker (RCB). NOTE: A domestic 13 amp, BS1360 plug must NOT be used with this machine. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Green &... -
Page 5: Assembly And Preparation For Use
ASSEMBLY AND PREPARATION FOR USE The machine is fully assembled except for the lance and hose connections Fig.1 The lance is in two sections, assemble by screwing the two halves together. high pressure hose pressure regulator Fig.2 The high pressure hose is attached to the lance just forward of the trigger assembly, the other end to the high pressure outlet at the front of the machine. -
Page 6: Operation
IMPORTANT: Use ONLY those detergents specifically designed for use with Power Washers. We recommend the use of CLARKE Traffic Film Remover, which is a powerful low foaming agent for car cleaning, patio cleaning etc., or CLARKE Wash & Wax, both available from your CLARKE dealer. -
Page 7: Setting Water Pressure
In doing so the pump will stop and start again when the trigger is pulled once again. For the reasons given above, it is recommended that you ALWAYS set the lance to its LOW PRESSURE setting before switching ON. WARNING Ensure the operator is aware that when the trigger is pulled, water at high pressure can cause the lance to kick - it should therefore be held firmly. -
Page 8: Shutting Down The Machine
SHUTTING DOWN THE MACHINE If the chemical injection facility has been used, disconnect the plastic tube from the pick-up, and turn the pressure adjuster on the lance to HIGH pressure. Allow the pump to run for a short while to cleanse the hose and lance, then switch OFF the pump. Switch OFF at the mains electrical supply, and turn OFF the water supply - disconnect where appropriate. -
Page 9: Troubleshooting
No water due to clogged Clean water filter (never operate without filter) filter Worn seals Contact your CLARKE Distributor Oil leak Plug is not connected Check plug and lead and have Motor does not start them replaced by a qualified properly. - Page 10 29 Rubber Feet FP1 5903400 ** Quote model number when ordering. For all pump and motor spare parts, consult your Clarke dealer. PARTS & SERVICE CONTACTS For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers.
-
Page 11: Parts Diagrams
PARTS DIAGRAM... - Page 12 HOSE AND REEL ASSY. - EHD170 ONLY Description Part No. Hose FP68602400 Reel FP73041700 FP73042600A Spring FP73042500 Plug FP18107100 Bracket RH FP73132600 Screw FP10501700 Reel Locating Assy FP7303300 Outlet Connector FP73132900 FP73042400 O-Ring FP15103000 Washer FP15023500 O-Ring FP13300900 Nipple FP18000300 Screw FP10501300 Bracket LH...
-
Page 13: Accessories
7330560 7330565 7330570 ACCESSORIES A range of accessories designed for use with your washer are available from your CLARKE dealer, as follows: Part No. Rotary Brush .............. 7310107 Water Sandblaster ........... 7310108 Drain Cleaner ............7310109 Heavy Duty Extension Hose (10M) ......7310162 Traffic Film Remover 5 litre ........
