Operating Manual
for
250 AMP MULTIPROCESS WELDER WITH IGBT AND PFC AUTO
VOLTAGE TECHONOLOGY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProMTS 252i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Longevity ProMTS 252i

Summary of Contents for Longevity ProMTS 252i

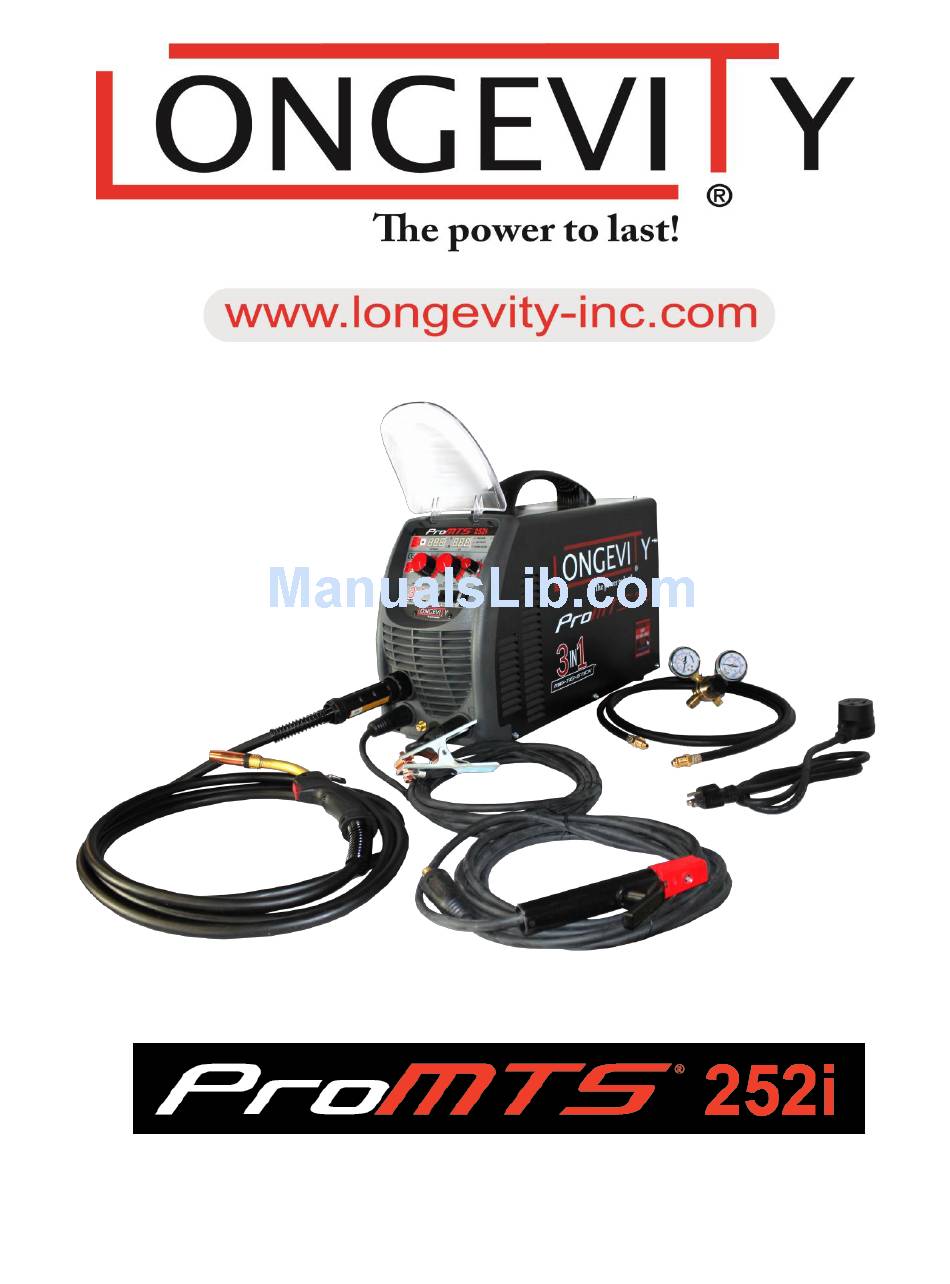

  • Page 1 Operating Manual 250 AMP MULTIPROCESS WELDER WITH IGBT AND PFC AUTO VOLTAGE TECHONOLOGY...

  • Page 2: Table Of Contents

    PROMTS 252i Table of Contents Table of Content Pg. 1 Thank you From LONGEVITY Pg. 2 Warranty/Shipping Damage/Order Information Pg. 3 Safety Information Pg. 4-5 Technical Specifications and Ratings Pg. 6 What’s Included? Pg. 7 Main Unit Knob/Button/Function Diagram Pg. 8-9 MIG Operation Pg.

  • Page 3: Thank You From Longevity

    PROMTS 252i THANK YOU! We, at LONGEVITY, want to thank you for purchasing our product. You are almost ready to experience Longevity Welding first hand. Longevity definitely appreciates your business and understand that this equipment may be overwhelming to setup and operate so we have prepared a manual that will assist you in understanding your new welder.

  • Page 4: Warranty/Shipping Damage/Order Information

    LONGEVITY customers with repairs, replacement, and service. If your unit is not manufactured by Longevity and you cannot receive service from your manufacturer or seller, Longevity will lend out hand. Our warranty policy is also available for all plasma cutters and welders.

  • Page 5: Safety Information

    PROMTS 252i Warnings and Safety Welding and plasma cutting may be dangerous to the operator and to bystanders, if the equipment is not operated properly. Welding or cutting must be performed in accordance with all relevant safety regulations. Carefully read and understand this instruction manual before installing and operating this equipment.
  • Page 6  Use a screen or curtain designed to keep passers by from viewing the arc.  The arc spray and metal spray from machine use may cause nearby fires. Use caution.  If, after reviewing this manual, you have any problems in setting up or operating your machine, contact us at help@longevity-inc.com.

  • Page 7: Technical Specifications And Ratings

    PROMTS 252i Technical Specifications and Ratings Single-phase, 110V/220V，50/60Hz Input Power Processes FCAW DC TIG STICK Mild steel MAX: 3/8” (9.5mm) Welding Capacity MIN:24 ga (0.8mm) With Speedadjust Spoolgun 8M Aluminum MAX: ¼” (6.4 mm) MIN:18 ga (1.2 mm) 110V RATED DUTY CYCLE MIG/MAG: 35% @ 160A 22v 100% @ 95A 18.5v...

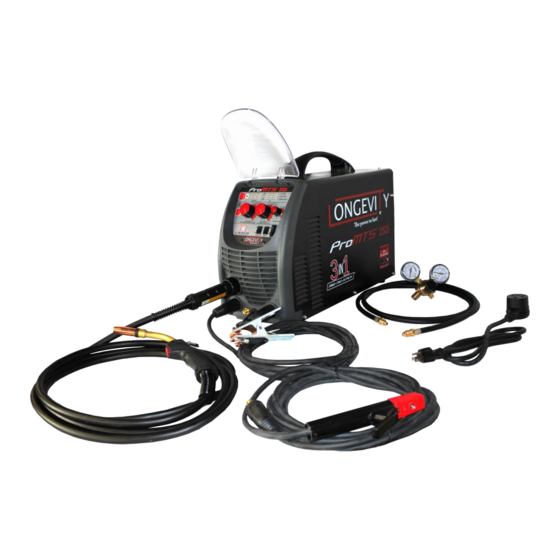

  • Page 8: What's Included

    PROMTS 252i What’s Included? 1 10 FT 24KD MIG GUN 1 13 FT GROUND CLAMP 1 5 FT AIR HOSE 1 5FT 220 TO 110 ADAPTER 1 CO2 REGULATOR 1 0.8,1.0 DRIVE ROLLER (INSIDE MACHINE)

  • Page 9: Main Unit Knob/Button/Function Diagram

    PROMTS 252i Main Unit Pictured: PROMTS 252i Multi Process Welder Main Unit Knob/Button/Function:...
  • Page 10 PROMTS 252i 1. Gas Connector From Tank To The Welder 2. ON/OFF Switch 3. Power Cord 4. MIG Gun Connection 5. Positive Dinse Connecter 6. Gas Connector (TIG) 7. Negative Dinse Connector 8. Process Selector: Press to select MIG, TIG or STICK.

  • Page 11: Mig Operation

    PROMTS 252i MIG Operation: 1. Shielding Gas Choice 1)When the wire material is Fe, the shielding gas should be 75% Ar + 25% CO2 2)When the wire material is Ss, the shielding gas should be 75% Ar + 25% CO2...
  • Page 12 PROMTS 252i Never let you electrode’s distance from you contact tube exceed ¼” to ¾”. If you do your weld will not be correct. Normal Too Long Too Short  Welding Wire Thin Metal= Thin Diameter. Thick Metal= Larger wire, with a larger machine.
  • Page 13 PROMTS 252i RECOMMENDED WIRE SIZES MIG Solid Wire Gasless Flux-Core Wire Material Thickness .024” .030” .035” .045” .030” .035” .045” 24 Gauge (.025) 22 Gauge (.031) 20 Gauge (.037) 18 Gauge (.050) 16 Gauge (.063) 14 Gauge (.078) 1/8” (.125) 3/16”...
  • Page 14 PROMTS 252i WELDING WIRES Shielding gas- C02 or 75%Argon/25% CO2 is recommended and will give you deeper penetration Solid 75%Argon/25% will give you less splatter and a nicer Carbon-Steel lookingbead ER70S-6 Should be used indoors, where wind cannot harm you weld.
  • Page 15 PROMTS 252i Aluminum should be used with Argon. Stainless steels can be used with a triple-mix, or Helium+Argon+Co2 Steel Penetration Patterns Argon + CO  Gun Techniques Drag/Pull= More penetration with a more narrow bead Push= Less penetration with wider bead...
  • Page 16 PROMTS 252i...
  • Page 17 PROMTS 252i  Fillet Welds The leg of your weld should be equal to the thickness of the materials you welded.  Aluminum MIG Welding Tips • It is highly recommended to use a spool gun when welding with aluminum.
  • Page 18 PROMTS 252i • Fill the crater at the end of the weld to avoid a crack. One way to do this is to dwell in the weld pool for a second at the end of the weld. STICK Welding Tips and Tricks (Also known as MMA-Manual Metal Arc or Shielded Metal Arc Welding-SMAW) Connect the Stick torch to the - terminal and Torch Control receptacles.
  • Page 19 PROMTS 252i flux and bare metal meet. A welding rod must have flux to shield the weld from the atmosphere or the weld will fail. 4. Use the Current control to change arc qualities. Adjust the amperage according to the recommendations of the electrode (welding rod) manufacturer for the type and size of the electrode used.
  • Page 20 PROMTS 252i Stick Electrode Chart Example: E 60 1 3 Strength 60--60,000 psi, 70--70,000 psi Weld Position 1--All positions: Flat, Vertical, Horizontal, & Overhead 2--Flat Position or Horizontal Fillets Only 3--Flat Position Only Weld Characteristics 0--Non-low hydrogen, DC Reverse polarity...
  • Page 21 PROMTS 252i washing of the weld bead into the sides or “toes” of the weld is important. Keep the welding electrode or the TIG tungsten and welding arc within the weld joint to prevent overlap. Pausing on the sides of the welds to wait for the sides to fill reduces the chance of undercutting, even if the current is a little too high.
  • Page 22 PROMTS 252i...
  • Page 23 PROMTS 252i...
  • Page 24 Medium (can be more spatter also); DCEP - Most penetration Catalog and Capabilities LONGEVITY has what you need for stick welding, from welders to welding supplies and protective clothing. Stick welders come in two basic classifications; 115V stick welders and 230/460V stick welders. Stick Electrodes or...
  • Page 25 PROMTS 252i LONGEVITY® Global, Inc. thanks you for your purchase and the opportunity to be able to serve you. If, after reviewing this manual, you have any problems in setting up or operating your machine, contact us at help@longevity-inc.com. LONGEVITY® Global, Inc.
