3. INSTALLATION (CONTINUED)
6 inch stainless flue
Adaptor
AURORA WOODFIRES INSTALLATION AND USER MANUAL

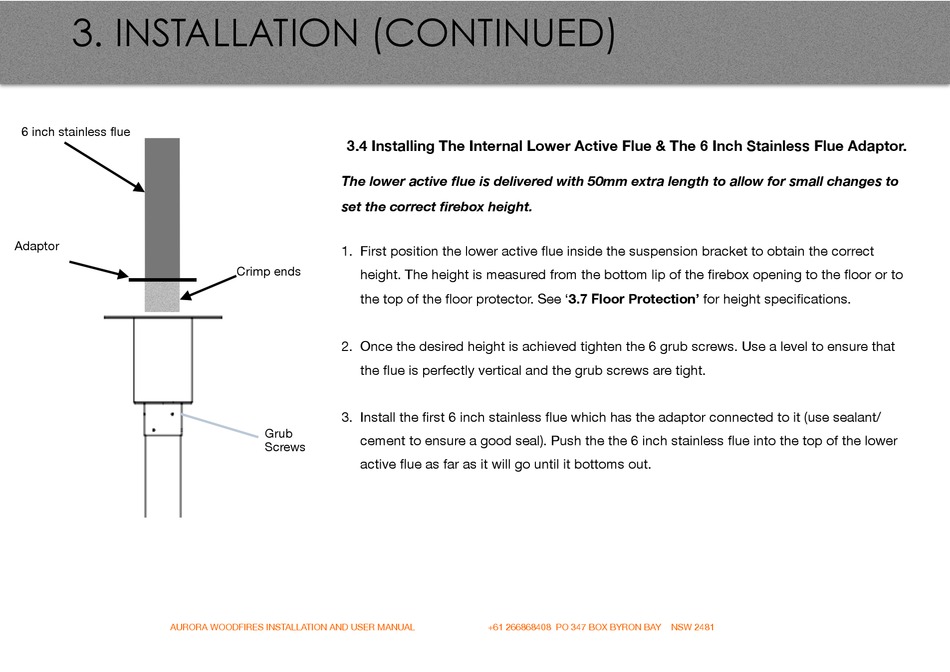

3.4 Installing The Internal Lower Active Flue & The 6 Inch Stainless Flue Adaptor.
!
The lower active flue is delivered with 50mm extra length to allow for small changes to
set the correct firebox height.
!
1. First position the lower active flue inside the suspension bracket to obtain the correct
Crimp ends
height. The height is measured from the bottom lip of the firebox opening to the floor or to
the top of the floor protector. See '3.7 Floor Protection' for height specifications.
!
2. Once the desired height is achieved tighten the 6 grub screws. Use a level to ensure that
the flue is perfectly vertical and the grub screws are tight.
!
3. Install the first 6 inch stainless flue which has the adaptor connected to it (use sealant/
Grub
cement to ensure a good seal). Push the the 6 inch stainless flue into the top of the lower
Screws
active flue as far as it will go until it bottoms out.
