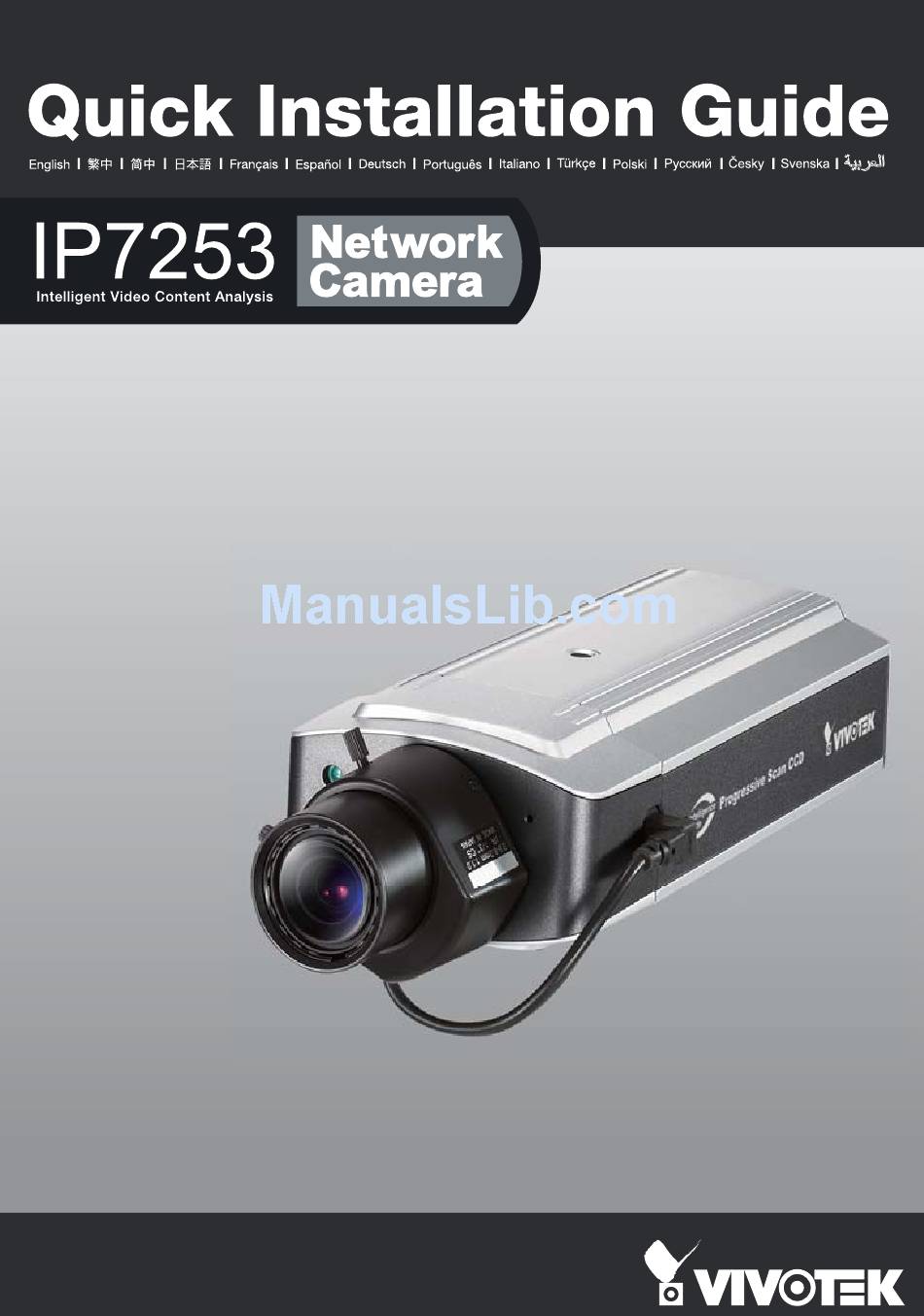

Summary of Contents for Vivotek IP7253

  • Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera soon as smoke or unusual odors away from water. If the Network are detected. Camera becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.
  • Page 3 Do not place the Network Camera Do not touch the Network Camera on unsteady surfaces. during a lightning storm. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert sharp or tiny objects into the Network Camera. EN - 2...
  • Page 4: Package Contents

    Package Contents IP7253 Power Adapter Camera Stand CS-mount Lens Software CD Quick Installation Guide Warranty Card L-type Hex Key Wrench / C-mount Ring (for C-mount Lens) EN - 3...
  • Page 5: Physical Description

    Physical Description Front Panel Light Sensor Built-in Microphone Status LED Back Panel External/Internal MIC Switch Audio Out Microphone In Ethernet 10/100 Power Cord Socket RJ45 Socket General I/O Recessed Reset Button Terminal Block Lens Focus Controller Zoom Controller EN - 4...
  • Page 6: Mounting The Lens To The Camera

    Mounting the Lens to the Camera 1. Mount the lens by turning it clockwise onto the camera mount until it stops. If necessary, turn the lens counterclockwise slowly to achieve the best optimum spacing. 2. Connect the lens cable plug to the camera connector. For further setup, please refer to the lens' instruction manual inside the lens package.
  • Page 7: Power Over Ethernet (Poe)

    Power over Ethernet (PoE) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and...
  • Page 8: Assigning An Ip Address

    "Next" button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer.
  • Page 9: Ready To Use

    Ready to Use 1. Access the Network Camera on the LAN. 2. Retrieve live video through the web browser or recording software. 3. Unscrew the zoom controller to adjust the zoom factor. Upon completion, tighten the zoom controller. 4. Unscrew the focus controller to adjust the focus range.
  • Page 10: Fine-Tune The Camera Focus

    Fine-tune the Camera Focus 1. Detach the CS-mount lens from the camera body. 2. Turn the camera body bottom up. 3. Use the supplied L-type hex key wrench to loosen the lens mounting screw; the CS-mount ring becomes rotatable. 4. Use a coin to turn the CS-mount ring; fi ne-tune the distance between the sensor and the lens.
