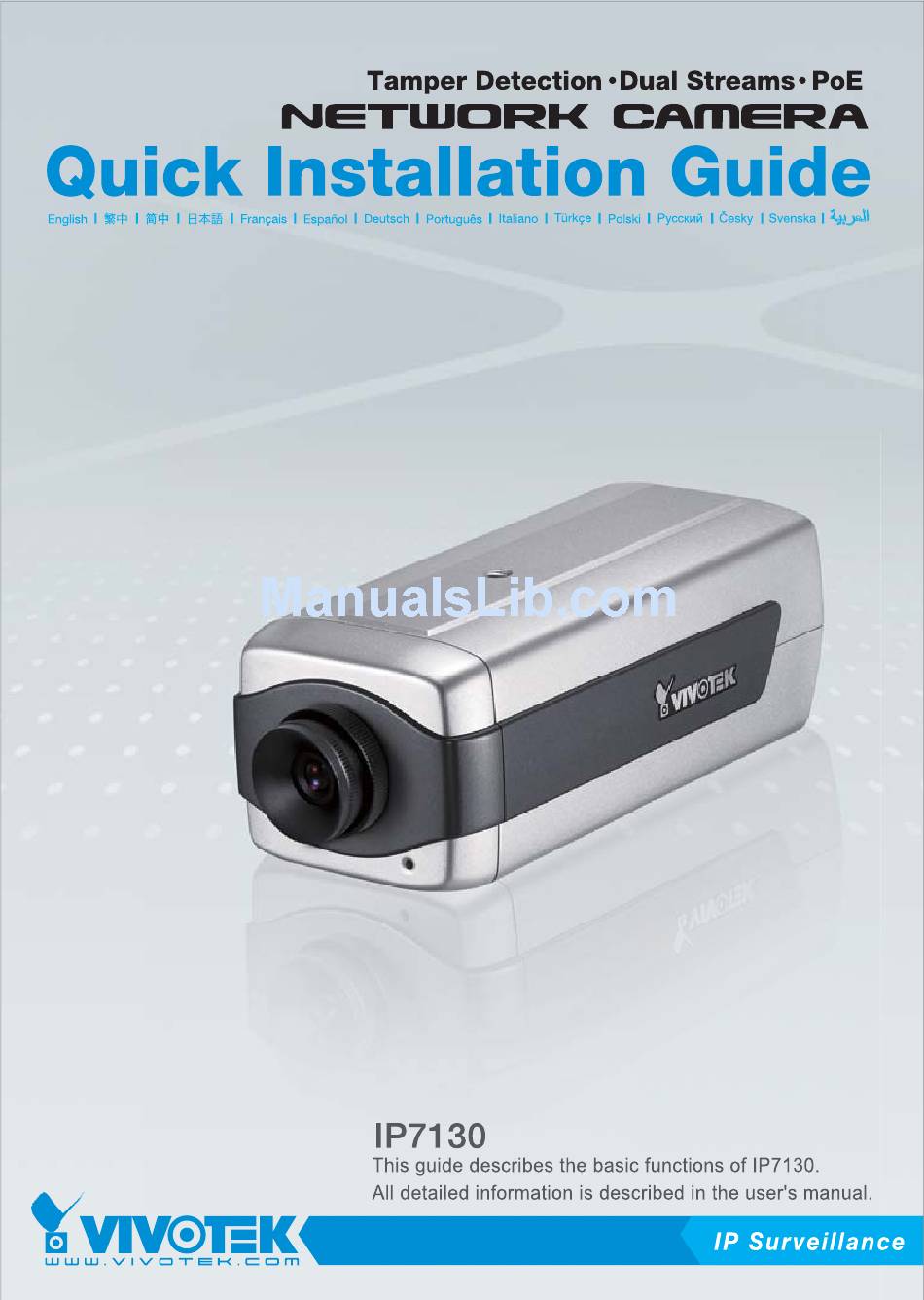

Tamper detection, dual streams, poe network camera
Hide thumbs Also See for IP7130:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP7130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek IP7130

Summary of Contents for Vivotek IP7130

  • Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera away soon as smoke or unusual odors are from water. If the Network Camera detected. becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.
  • Page 3 Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces. during a lightning storm. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert sharp or tiny objects into the Network Camera.

  • Page 4: Package Contents

    Package Contents IP7130 Power Adapter Camera Stand Software CD Warranty Card Quick Installation Guide...

  • Page 5: Physical Description

    Physical Description Front Panel Lens Built-in Microphone Back Panel Audio Out Status LED Microphone In Ethernet 10/100 Power Cord Socket RJ45 Socket General I/O Terminal Block Indented Reset Button External/Internal MIC Switch...

  • Page 6: Network Deployment

    Network Deployment General Connection (without PoE) 1. If you have external devices such as sensors and alarms, connect them to the general I/O terminal block. 2. Connect the camera to a switch via Ethernet cable. 3. Connect the supplied power cable from the camera to a power outlet. 1: Power +12V 2: Digital output 3: Digital input...

  • Page 7: Power Over Ethernet (Poe)

    Power over Ethernet (PoE) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the camera to a PoE- enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a...

  • Page 8: Assigning An Ip Address

    "Next" button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer.

  • Page 9: Ready To Use

    Ready to Use 1. Access the Network Camera on the LAN. 2. Retrieve live video through a web browser or recording software. For further setup, please refer to the user’s manual on the software CD.
