UltraRes Quick Start Guide
Introduction
Once the UltraRes display has been installed and mounted, there are several
important steps that you need to take in order to get the display up and running. This
document is intended to give you a quick overview of the steps needed to connect
cables, turn on your display and attach sources. For more in-depth information, see
the Installation Guide that is on the USB drive in your accessory kit box.

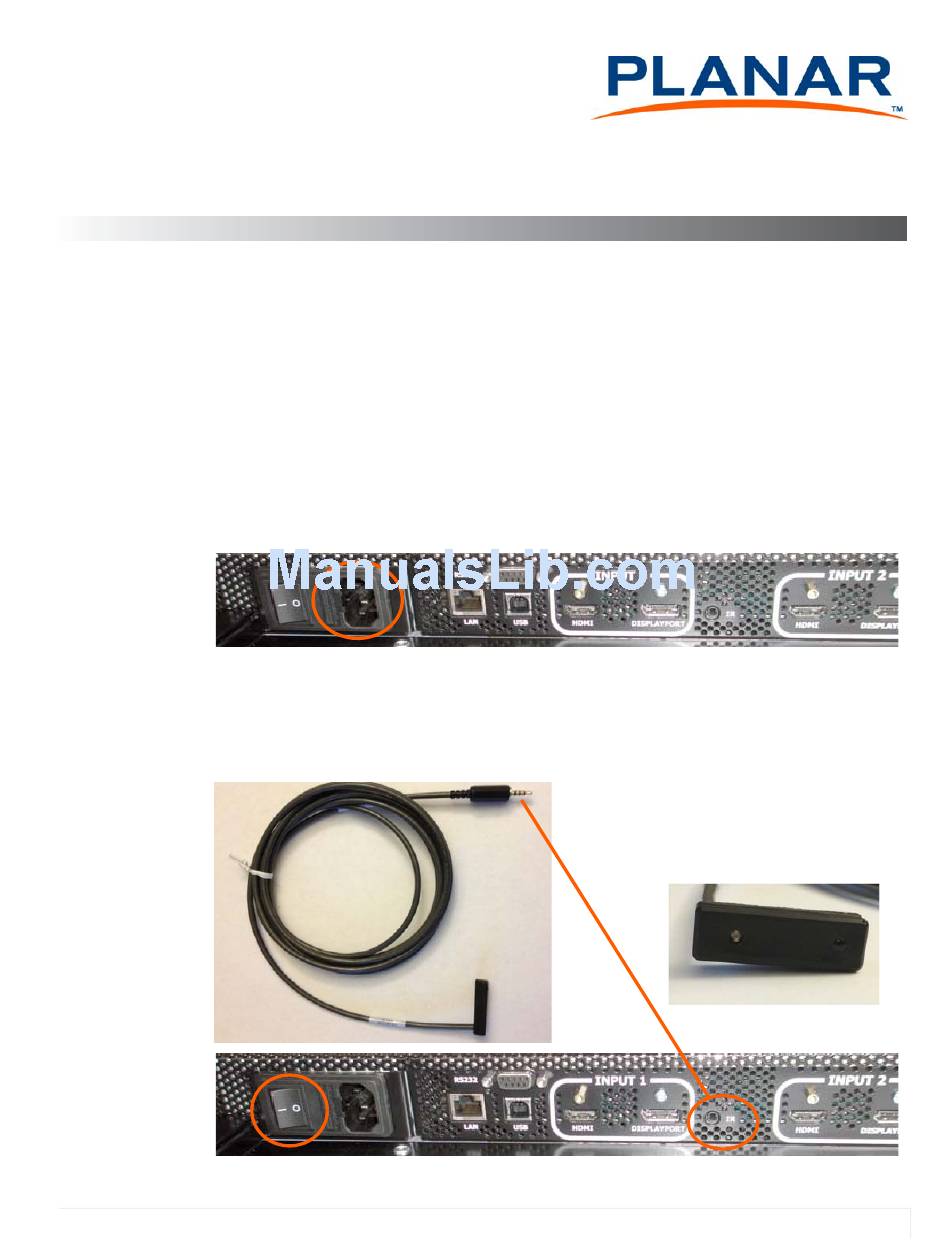

1 Using the supplied AC power cord, connect one end to a grounded outlet and the
other to the AC power input next to the I/O panel the bottom of the UltraRes
display.
2 The IR module has and LED status and an IR receiver on the same module. In
order for the remote control to work, you need to connect the wired IR module to
the display, also on the bottom of the I/O panel. Then place the IR receiver in the
desired place on or near the display.
008-0161-00A
1
