Installation and Operating Instructions

Read this entire manual before you install and use your new room heater. If this room
heater is not properly installed, a house fire may result. To reduce the risk of fire, follow
the installation instructions. Failure to follow instructions may result in property damage,
bodily injury, or even death.
Contact local building officials about restrictions and installation inspection-equirements
in your area.
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: stoves@morsoe.com · Website: www.morsoe.com
1011 Highway 52 West - Portland TN - 37148 - USA

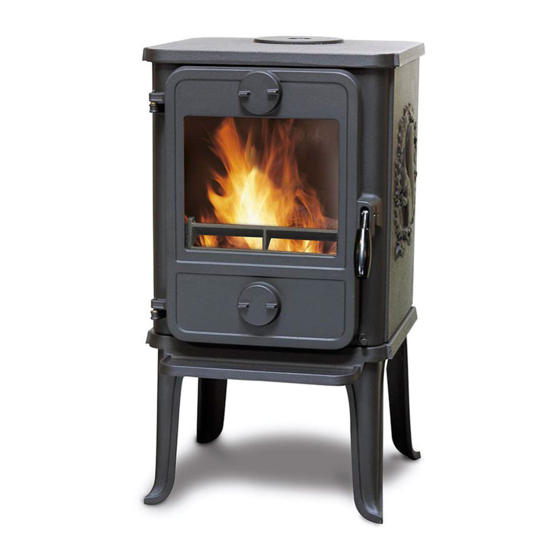

1410 Coal Heater
For use in North America
Save these instructions
Distributed by: MORSO US LLC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Morso 1410

Summary of Contents for Morso 1410

  • Page 1: Installation And Operating Instructions

    Contact local building officials about restrictions and installation inspection-equirements in your area. Save these instructions MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com Distributed by: MORSO US LLC 1011 Highway 52 West - Portland TN - 37148 - USA...
  • Page 2 Morsø stove. They help with day-to-day running and maintenance. Contact your Morsø dealer for more information. The Morsø 1410 squirrel Coal Heater is listed by OMNI-Test Laboratories, Inc. The test standards are ULC-S627 for the United States.

  • Page 3: Table Of Contents

    CONTENTS: Installation of your Morsø stove Checking loose parts in the stove The chimney / flue system Flue Connection Connection to existing chimney Positioning the stove Operation Before you start firing Lighting and loading intervals Maintenance Exterior maintenance Internal maintenance Cleaning the Stove and the Flue Leaving the stove for extended periods Parts diagram...

  • Page 4: Installation Of Your Morsø Stove

    1.0 Installation of your Morsø stove Installation of coal heaters must be safe and legal. If your Morsø stove is not installed correctly, it may cause a house fire. To reduce the risk of fire, the installation instructions must be followed carefully. Contact the local building officials about restrictions and installation inspection in your area.

  • Page 5: The Chimney / Flue System

    1.2 The chimney / flue system Note that the flue system must be independently secured and must not rely on the stove for support. The stove must not be connected to a chimney flue serving any other appliance. (Several flues may run up a single chimney stack; use one flueway per appliance). Use a residential type masonry or listed type HT factory-built chimney.

  • Page 6: Flue Connection

    1.3 Flue Connection The stove is supplied from the factory with a flue collar fitted to the top plate and a round blanking plate blocking off the rear flue exit (behind the rear shield plate). The flue collar is 6 inches in dia. Use a 24 MSG black or blue chimney connector or listed double wall chimney connector.

  • Page 8: Positioning The Stove

    1.5 Positioning the stove Distance to walls When the stove is positioned near combustible materials, observe all current local and national building regulations with regards to clearances. Whatever regulations apply to your area, do not in any case install the stove within 8 inches of combustible materials around the sides or 16 inches above the top of the stove.
  • Page 9 FLOOR PROTECTION REQUIREMENTS NON-COMBUSTIBLE MATERIALS BENEATH STOVE CANADA EXTENDING DISTANCE, BACK 200 mm. EXTENDING DISTANCE, RIGHT SIDE 8’’ 200 mm. EXTENDING DISTANCE, LEFT SIDE 8’’ 200 mm. EXTENDING DISTANCE, FRONT 16’’ 450 mm. Distance to furniture The recommended minimum distance from stove to furniture is 30 inches. Note that some furniture is more easily affected by heat and may need to be moved to a greater distance.

  • Page 10: Operation

    2.0 Operation 2.1 Before you start firing For Use with Coal Only. Do Not Overfire, If Heater or Chimney Connector Glows You Are Overfiring. Inspect and Clean Chimney Frequently. Under Certain Conditions of use creosote buildup may occur rapidly. Because of risk of smoke and flame spillage, operate only with door fully closed.
  • Page 11 extinguish the fire. The smaller the pieces of fuel, the smaller layer is required. Add only new fuel in small quantities and make sure that enough/sufficient secondary air is drawn in in order to burn off the released gasses. The heat output is controlled mainly by the primary air inlet. The primary air inlet controls the fire best between the fully closed position and one or two revolutions, but this depends largely on the atmospheric conditions as well as the chimney design.

  • Page 12: Exterior Maintenance

    Do not for any reason attempt to increase the firing of your heater by altering the air control adjustment range outlined in these directions. Warning: Coal heaters must never be left unattended with doors open. If door are left partly open, gas and flame may be drawn out of the fireplace stove opening, creating risks from both fire and smoke.
  • Page 13 Replace broken glass immediately. Do not operate your stove if the glass in the door is damaged. If you need to replace the glass, it must be replaced with the high temperature ceramic glass supplied by Morsø, contact your Morsø dealer. Installing the glass Never install the glass when the stove is in function.

  • Page 14: Cleaning The Stove And The Flue

    To reduce the risk of breaking the glass, avoid striking the glass or slamming the door. Internal service parts The flame-path equipment - consisting of the ashpan, grate, firebricks, glass, baffle and flue collar - are subject to the extremes of heat produced by the fire. From time to time, one or other of these parts may need replacing as a matter of routine maintenance.
  • Page 15 Ash disposal Empty the ashpan on a daily basis or as needed. Ash allowed to build up towards the underside of the grate will trap heat and could cause premature failure of the grate. Empty the ashpan according to this procedure: When the door is closed, the grate can be operated by means of the riddling bar.

  • Page 16: Leaving The Stove For Extended Periods

    If you do experience a chimney fire, act promptly and: Close the air controls. Get everyone out of the house. Call the Fire Department. Annual maintenance Before the heating season, perform a thorough cleaning, inspection and repair: Thoroughly clean the chimney and chimney connector. Inspect the chimney for damage and deterioration.

  • Page 17: Parts Diagram

    3.5 Parts diagram for the model Morsø 1410 squirrel Coal Heater...

  • Page 18: Parts List

    3.6 Parts list for the model Morsø 1410 Squirrel Coal Heater Pos.No. Parts Base plate 44140121 Side plate w. squirrel 44140621 Top plate 44140721 Cover 44141021 Front grate 44141400 Attachment for front grate 44141600 Flue collar 44145921 Front frame 44142221...
  • Page 20 Morsø Jernstøberi A/S - 05.07.2010 - 72146600...
