Linn AKUBARIK Quick Start

AKUBARIK
QUICKSTART

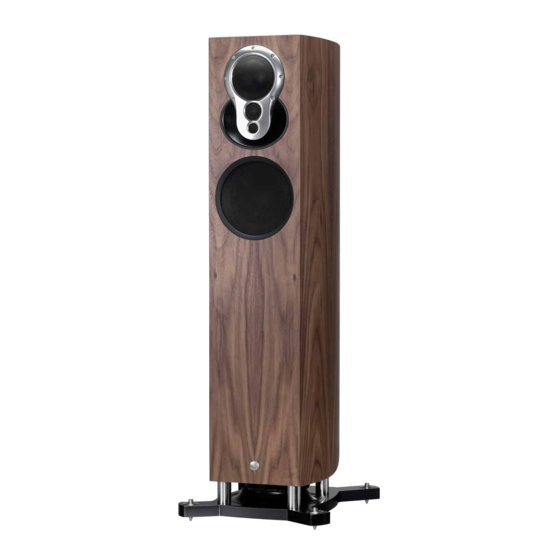

Thank you for purchasing the Linn Akubarik loudspeakers. This guide provides
basic unpacking and connecting information to get you started - contact your Linn
Specialist for full installation support.
IMPORTANT:
Please refer to the printed Safety Information booklet for important safety
information and www.linn.co.uk/akubarik for further information on
your Linn Akubarik loudspeakers.

Unpacking

IMPORTANT:
The Akubariks are heavy; take great care when moving them. When unpacking,
lifting or moving them, we recommend using two people to avoid personal injury.
Do not lift your Akubarik using the amplifier module, this will cause damage
to your loudspeaker.
• Loudspeakers are packed individually
with a separate package containing
both speaker stands.
• Carefully remove products from
packaging and place on a flat surface
- take care when unpacking to avoid
damage to the cabinets.
Do not lay the loudspeakers on their
•
front face or the amplifier on the rear
as this will damage the loudspeaker.
• Please retain all packaging for future
transport of your Akubarik loudspeakers.

Installing

1. On a clean, level surface that will not
damage the loudspeaker; carefully stand
the speaker upside-down without laying
it on its front or rear face.
2. Remove the transit plinth using a
13mm socket spanner.
3. Retain the transit plinth and keep with
product packaging.
4. Position the speaker stand above the
speaker as shown and attach using the 5
bolts removed in step 2.
Take care not to over tighten the bolts.
5. Without laying the speaker on its front or rear face, carefully return the
speaker to its upright position.
6. Screw the spikes into the corners of the stand.
7. Adjust the spikes to level the speaker, using a spirit level placed on the stand.
8. Once the speaker is level, fit and tighten the lock nuts with the spanner provided.
(6) (7) (8)
