LINN KABER
O W N E R S
M A N U A L

Advertisement

Table of Contents
loading

Related Manuals for Linn KABER LS500

Summary of Contents for Linn KABER LS500

  • Page 1 LINN KABER O W N E R S M A N U A L...
  • Page 2 Year 2000 Compliant in such circumstances. Except to the extent implied by law and which by law cannot be excluded, Linn shall not be liable to any party for any costs, claims, losses (including indirect and consequential losses) or liabilities arising from the failure of Linn’s software to be Year 2000 Compliant if used in...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION Explanation of symbols used in this manual and on the product : This symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the enclosure of sufficient magnitude to cause electric shock. This symbol is intended to alert the user to the presence of important maintenance and servicing information in the instruction and service manuals.

  • Page 4: Warranty And Service

    In addition to any statutory rights the customer may have we undertake to replace any parts which have failed due to faulty manufacture. To help us please ask your Linn retailer about the Linn warranty scheme in operation in your country.
  • Page 5 The addition of any Linn component will improve the sound quality of your system. Linn has a policy of continuously improving its equipment allowing customers to retro-fit most product upgrades.
  • Page 6 NTRODUCTION Thank you for choosing our Linn KABER LS500 loudspeakers, which join the family of Linn loudspeakers, and use much of the technology of the KEILIDH and the KELTIK. The KABERS are the result of extensive development work and reach what we believe to be new standards of performance in loudspeakers at this price level.

  • Page 7: Eneral Information

    If you have chosen to install your KABERs yourself, follow the detailed INSTALLATION GUIDE further on in this manual. If you have any problems, please ask your Linn retailer to help. Linn retailers and their staff have been extensively trained...
  • Page 8 CONFIGURATION The Linn KABERs are an extremely versatile loudspeaker, and can be used in a particularly wide range of configurations, each with a distinct performance advantage. This makes it easy for you to develop your system over its lifetime, without having to change any substantial component.
  • Page 9 Although the highest quality components are used in Linn loudspeakers, they have to handle extremely high power without overheating, and are less suitable for handling the fine details of music.
  • Page 10 NSTALLATION GUIDE Lift the cabinets from the carton by their sides to avoid damaging the drive units. If you can, keep the packing for possible future transportation. COMPOSITE BASE To install the composite base, lay the speakers on their back or on top of a soft surface.

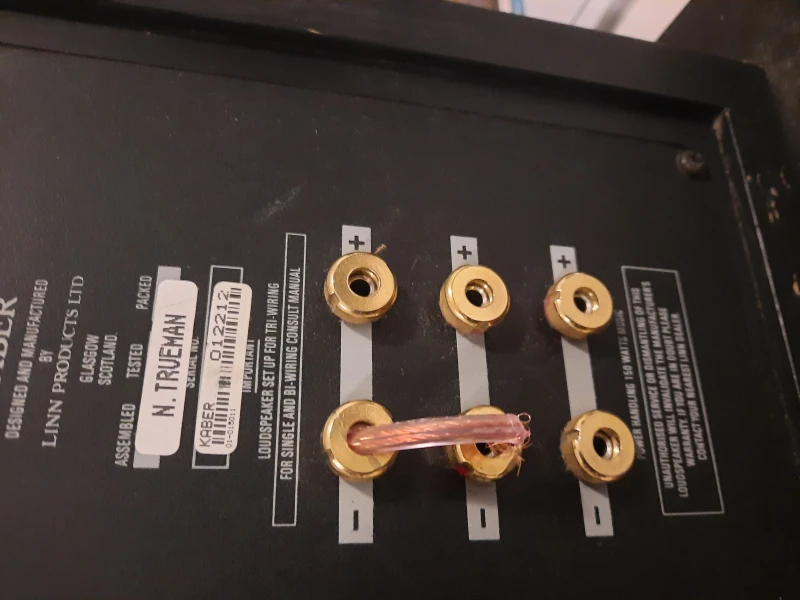

  • Page 11 CONFIGURATION As previously mentioned under GENERAL INFORMATION, KABERs are supplied configured for use in TRI-WIRED mode. (see below) To convert KABERs to BI-WIRED mode remove the black-ringed (negative) input terminal collars using the key provided. Fit the two way plate supplied over the bottom two sockets and replace the terminal collars.
  • Page 12 GRILLES To fit the grille, ensure that the shiny side of the material is to the outside. Find the knotted part of the grille elastic, and locate it in the slot below the bass driver that separates the top and bottom baffles. Place the knot about a third of the way in from a corner, then pull the grille up evenly over the baffle.

  • Page 13: Connection

    CONNECTION Connection of the loudspeaker to the amplifier should be made with good quality cable. Linn K600 series cable is ideal for tri-wiring. The leads should be terminated with the connectors supplied. These ensure optimum contact and the use of other connectors could degrade the signal.

  • Page 14: Maintenance

    MAINTENANCE The Linn KABERs normally need no maintenance, other than occasionally polishing the cabinet with a soft, slightly damp cloth. Take care not to touch the drive units behind the grille cloth. If you have to transport your speakers, remove the spikes and use the original packing.

  • Page 15: Specifications

    SPECIFICATIONS Type 3-way Infinite baffle loudspeaker Frequency response Active: 40Hz-20kHz +/- 2dB Passive: 60Hz-20kHz +/- 3dB Input Impedence Active: 8 Ohms per drive unit Passive: 4 Ohms Efficiency 87dB for 1W at 1m (1kHz) Amplifier requirements At least 60W per channel into 4 Ohms Wiring options Single-Wiring, Bi-Wiring, Bi-Amplification, Tri-Wiring, Tri-Amplification,...

  • Page 16: Guarantee And Service

    WARNING Refer all enquiries to authorised dealers only. Unauthorised servicing or dismantling of the product invalidates the manufacturer's warranty. If you are in any doubt, please contact your nearest Linn dealer. For information on your nearest dealer, contact the Linn factory in Scotland or your national distributor.
