OPERATION
5.4

CONTROL

The MasterView Easy is a monitoring and control
panel for the MasterBus network.
The display guides you through the different menus,
starting with the selection of device you wish to
monitor. See the example on these two pages.
System level
Off
M M
ASTERVOLT ASTERVOLT
On
Distribution
MasterShunt
MV Easy
M M
ASTERVOLT ASTERVOLT
Locked
MasterShunt
100%
Distribution
OK
MV Easy
On
Mastership
M M
ASTERVOLT ASTERVOLT
=
Press shortly: 0-2 sec.
Press long: longer than 2 sec.
=

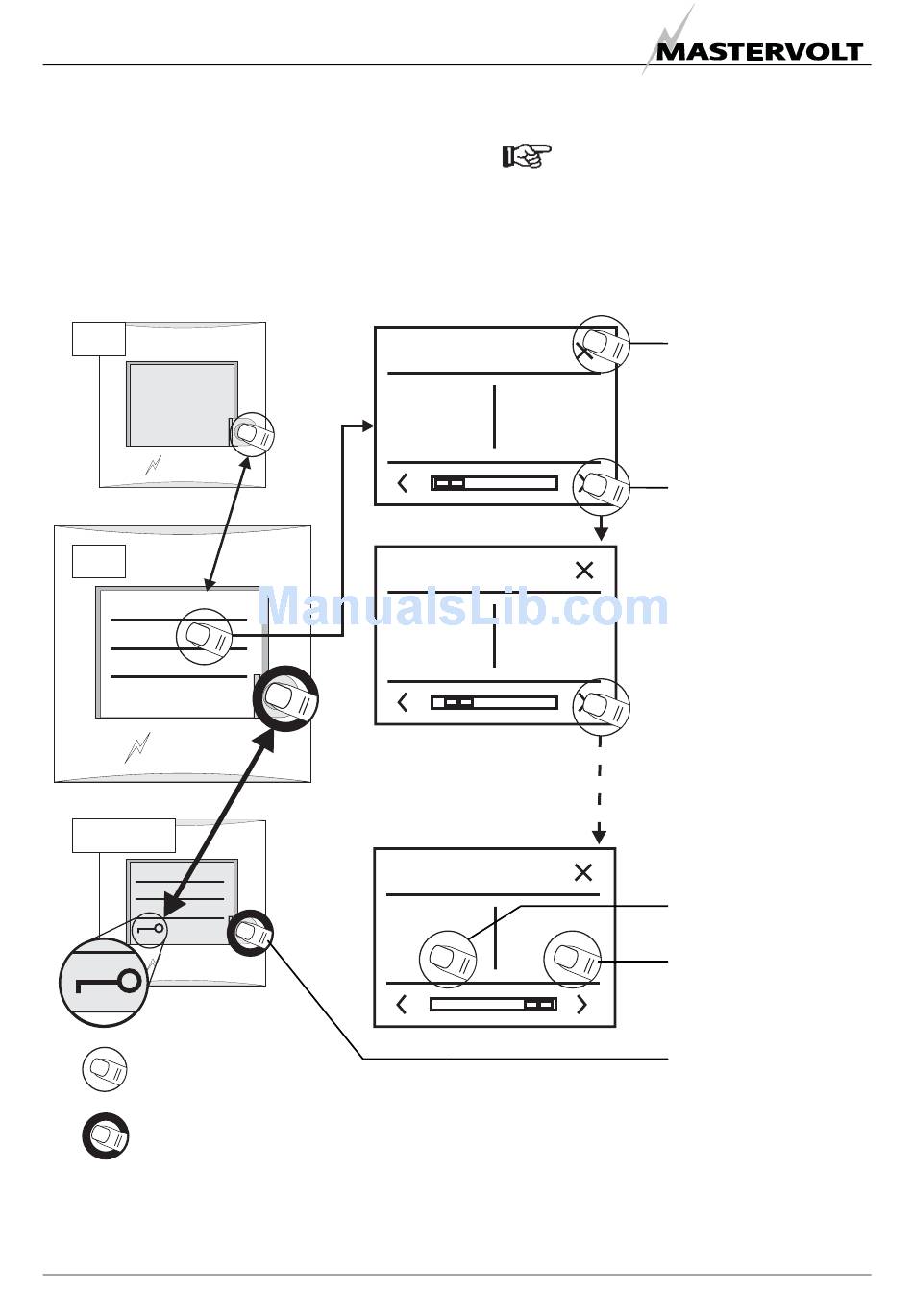

Figure 10: Operation of the MasterView Easy, opening screens
10
MSH MasterShunt
MSH MasterShunt
100%
remaining
OK
On
MSH MasterShunt
Configuration
Product level
State of
Charge
100%
Time Cap.
consumed
12:34:56 0 Ah
Go to
Go to
Alarm
NOTE: The screens shown may differ
from the screens on your own
MasterView Easy.
Exit Product level,
Go to system level
Scroll through
Product menus
Go to
Product Configuration
Go to
Product Alarms
Unlock
