Intermec EasyCoder 401 – User's Manual

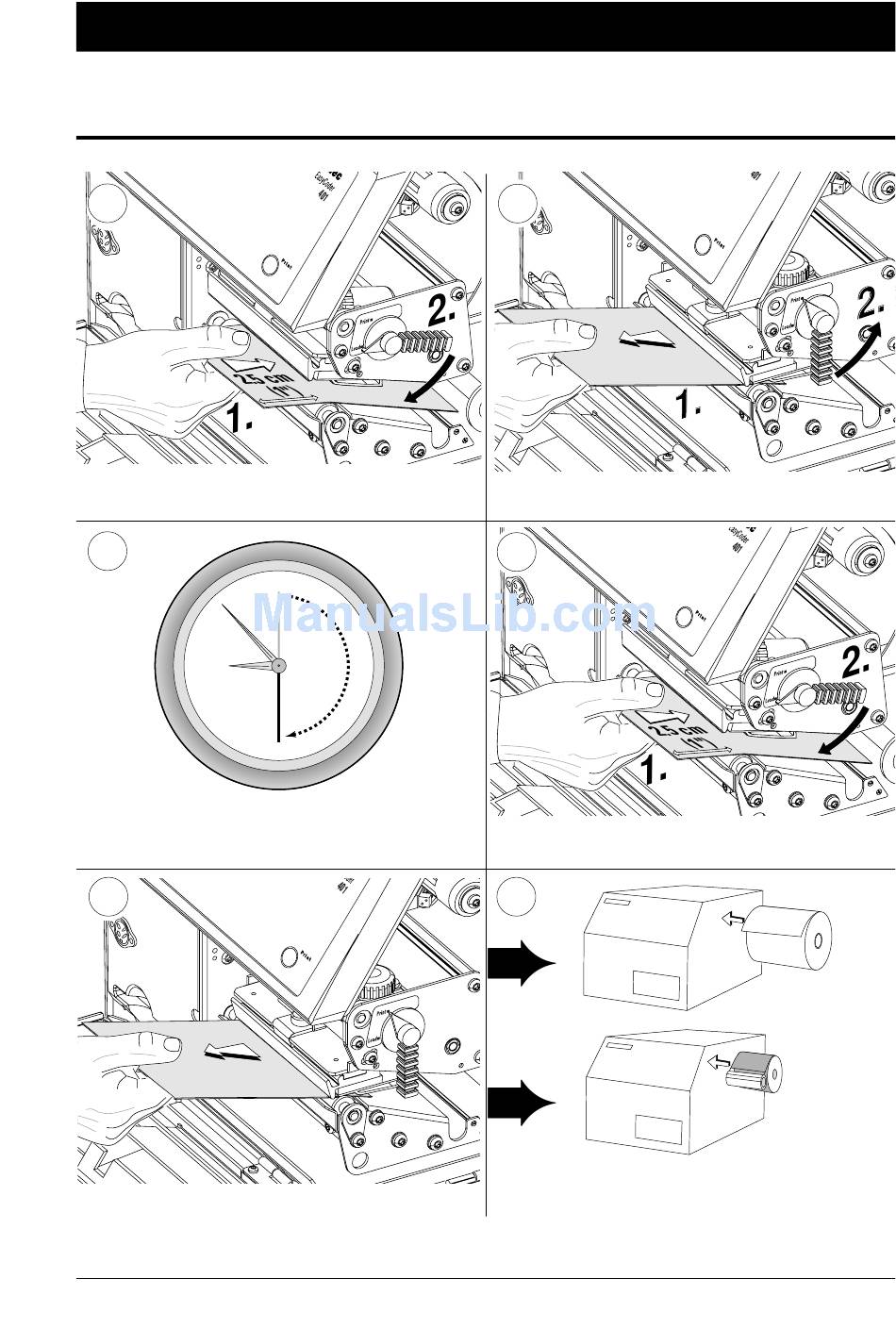

PRINTHEAD CLEANING, cont'd.
5 6
Insert most of the cleaning card under the printhead (1). Pull out the cleaning card (1) and turn the printhead
Turn the printhead lift knob to "Print" position (2). lift knob to "Load" position (2).
7 8
12
11 1
10 2
9 30 s. 3
8
4
7 5
6
Insert the cleaning card under the printhead again (1).
Wait for approx. 30 seconds. Turn the printhead lift knob to "Print" position (2).
9 10
Allow the cleaned part to dry before loading the printer
with paper and thermal transfer ribbon.
Pull out the cleaning card. Repeat if necessary.
