Intermec EasyCoder 401 – User's Manual

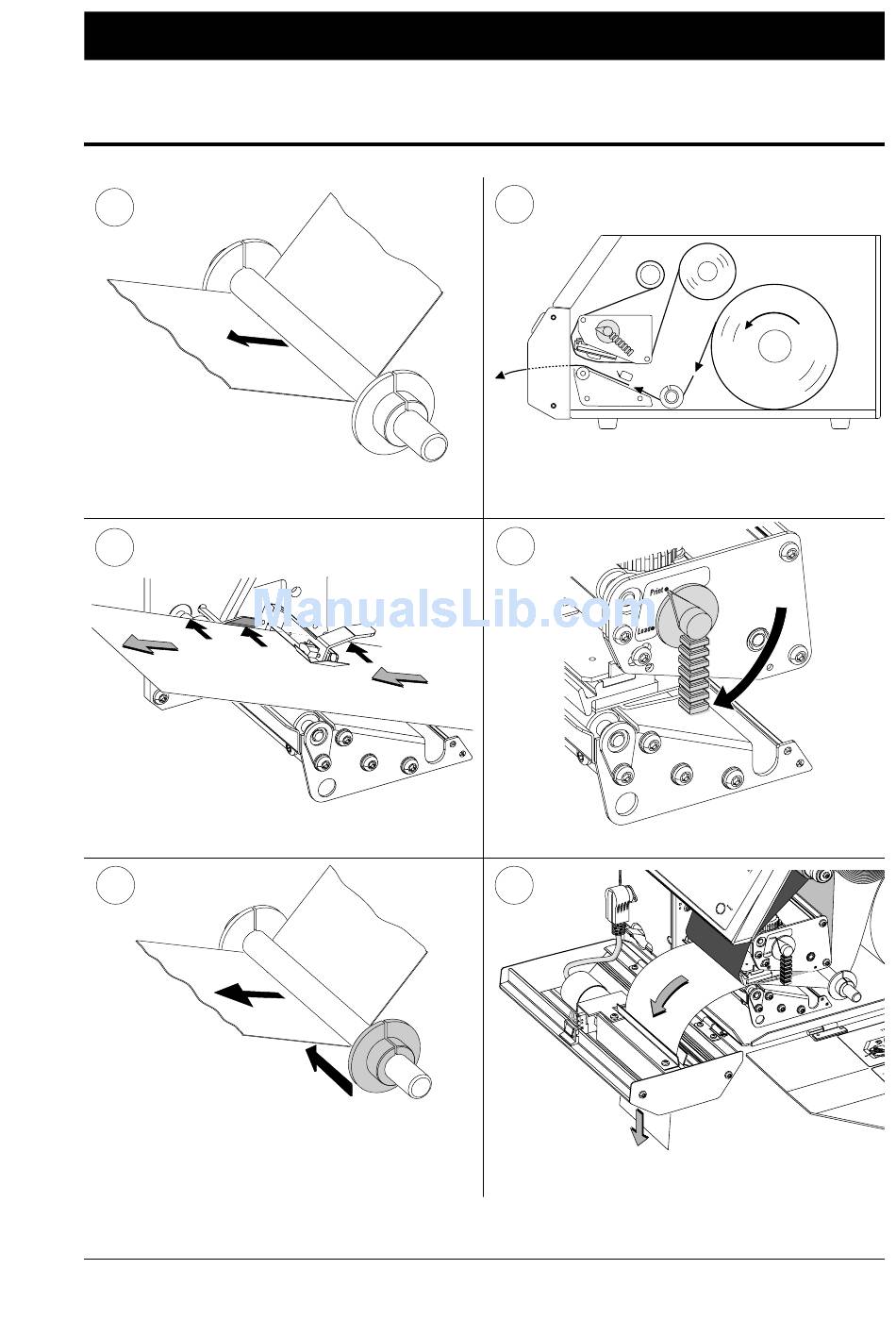

PAPER LOAD – CUT OFF, cont'd.
7
6
Thread the paper underneath the guide shaft behind the
print mechanism. This diagram shows the path of the paper web.
9
8
Push the paper inwards as far as it will go. Turn the printhead lift knob to "Print" position.
10 11
Adjust the green guide ring so the paper is guided with a Thread the paper through the cutter between the two
minimum of play. guide plates.
9
