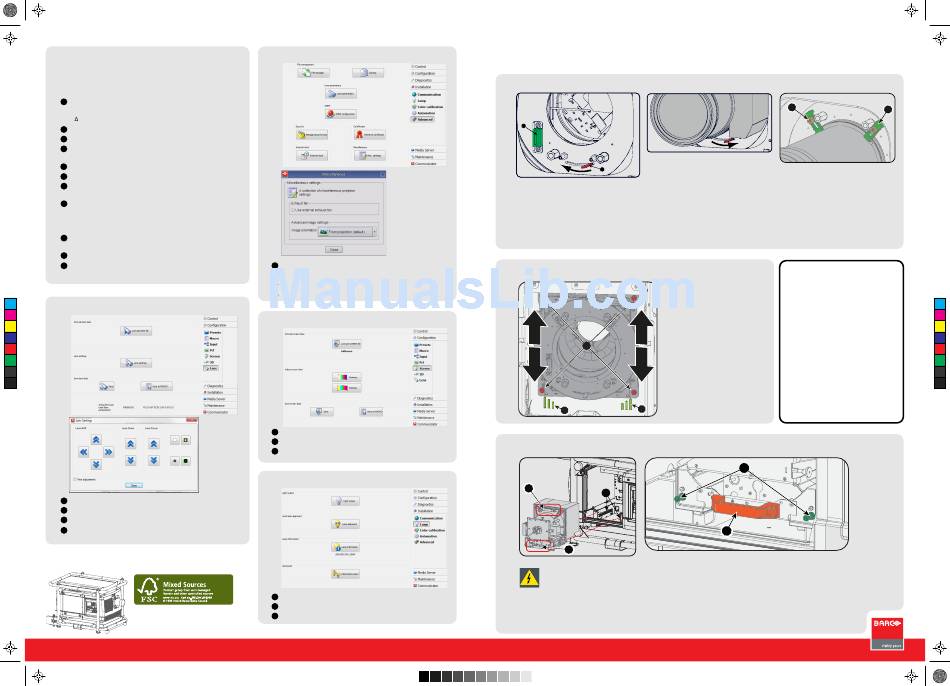

Quick Setup and operation
The following summarizes HDQ setup and operation. For
errorfree installation always refer to the "User and Installation
manual".
Connect power. Ensure that the power is properly
1
connected to the power input sockets.
Y- (wye-delta) configuration possible.
Connect available sources to the appropriate input terminal.
2
Switching on. Turn the mains switch to on.
3
Start up sequence starts. Communicator on touch panel
4
starts up.
Press standby key on te local keypad.
5
Image of the latest selected input appears.
6
Adjust the lens settings via the local keypad keys or via
7
Communicator.
Orientation of the unit is set as standard in table front
8
projection mode. Change the projector set up with
Communicator (Installation - Advanced settings - Misc.
settings.
If geometrical distortion occurs this can be corrected with
9
Communicator (Configurator - Screen).
Lamp management in Communicator (Installation - Lamp)
10
Switching off the unit can be done by pressing the STBY
11
button for 3 sec. An aftercool up to 300 sec will start.
Communicator Touch Panel: Lens settings
C
M
Y
CM
MY
CY
CMY
K
To open the lens settings, click Configuration.
1
Select Lens.
2
Select Lens settings.
3
Adjust lens zoom, lens focus and lens shift.
4
Printed on FSC certified paper (www.fsc.org)
R5905854 Rev. 00
Communicator Touch Panel: Orientation
To open the Image orientation settings, click Installation.
1
Select Advanced.
2
Select Misc. settings.
3
Select the correct Image orientation.
4
Communicator Touch Panel: Distortion
To adjust the distortion, click Configuration.
1
Select Screen.
2
3 Select Resizing or masking.
Communicator Touch Panel: Lamp manage
To manage the lamp, click Installation.
1
Select Lamp.
2
Select the desired lamp function.
3
HDQ 4K35 Quick start guide
Mounting the lens
B
A
• Remove the plastic cap in the lens • Insert the lens until the connector seats
opening. into the socket.
• Place lens holder in unlock position. • Secure the lens in the lens holder. Move
Handle A towards socket B. handle A into the lock position (away
• Gently insert the lens in such a way that from socket B).
the lens connector matches the socket B.
Additional vertical shift
• To extend lens shift in a specific
direction.
• Loosen the 4 screws (1) until
central part of lens holder
becomes loose.
• Shift the central part up or
down.
• Lowermost, middle and
1
uppermost shift positions are
marked on the lens holder (2).
• Tighten the 4 screws.
2
2
Mounting the lamp house
1
2
1
Before installing the Lamp • Remove housing on lamp house side.
House, disconnect the power to • Grip the lamp house by both handles (1)
the projector mains terminals • Place the lamp house on the base plate
and unplug the power cord at inside the lamp compartment.
the UPS INLET for removal of all • Line up the foot of the lamp house with the
power from the projector. slots on the base (2).
1
1
• Check if lens touches the front plate
of the lens holder.
• Check if the lens is really secured by
trying to pull the lens out of the lens
holder.
• Place the 2 lens fixation brackets (1)
into position and secure with a nut on
each bracket.
IMPORTANT
• Remove the lens before transporting
the projector.
• Remove lamp house before
transporting the projector.
• To save lamp lifetime, first switch the
projector to standby mode and wait
until the after cooling is finished to
switch off the main power.
• Ensure that the projector is operating
with clean filters.
• Do not block the ventilation in and
outlets.
• Laser light can cause severe damage
to the DMD. This damage is not
covered by warranty.
3
1
• Push the lamp house fully in.
• Secure both retaining screws.
• Mount the housing
