HEM-907XL Rev B
3/2/07
1:41 AM
INSTRUCTION MANUAL
IntelliSense
Model
Thank you for purchasing the OMRON
IntelliSense
®
Please thoroughly read this Instruction Manual
before using this monitor to ensure safe and
accurate use.
Please keep this manual near the monitor all
the time for future reference.
Page 1
Blood Pressure Monitor
®
HEM-907XL
Blood Pressure Monitor.

Table of Contents

Be Sure to Read This Section
Exemptions ........................................2
®
Notes on Safety .................................3
Know Your Unit
Features of the Product .....................7
Components of the Product ...............8
Options ...........................................9
Features and Functions ...................10
Names of the Parts ......................10
while the unit is in use ..................12
Preparations before Measurement
How to Apply the Cuff ......................14
of Battery Pack .............................17
SINGLE Mode ..............................20
AVG Mode ....................................22
MANU Mode .................................24
List of Error Codes ...........................28
Troubleshooting................................29
Specifications
Caution.............................................30
Specifications ...................................31
16
............

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEM-907XL IntelliSense and is the answer not in the manual?

Questions and answers

Related Manuals for Omron HEM-907XL IntelliSense

Summary of Contents for Omron HEM-907XL IntelliSense

  • Page 1: Table Of Contents

    List of Measurement Modes ....19 SINGLE Mode ......20 AVG Mode ........22 MANU Mode .........24 How to Check Pressure Accuracy..26 How to Clean the Unit after Use..27 Thank you for purchasing the OMRON List of Error Codes ......28 IntelliSense ® Blood Pressure Monitor. Troubleshooting........29...

  • Page 2: Exemptions

    2. We have prepared the contents of this Instruction Manual thoroughly. However, if an inadequate description or error is found, please let us know. 3. Reproducing or copying any or all of this Instruction Manual without OMRON’s written consent is prohibited.

  • Page 3: Notes On Safety

    HEM-907XL Rev B 3/2/07 1:41 AM Page 3 NOTES ON SAFETY • The warning signs and the sample icons shown here are listed to insure safe and accurate use. • The icons and meanings are as follows. Warning sign Contents Indicates matters in which death or severe bodily damage may arise as a result of incorrect handling.
  • Page 4 After cleaning this unit, dry it well before plugging the AC adapter in the electric outlet. If this unit fails to perform as indicated, discontinue use, turn off the unit, unplug the AC adapter from the electric outlet, and contact OMRON’s repair department. Do not disassemble or modify this unit.
  • Page 5 HEM-907XL Rev B 3/2/07 1:41 AM Page 5 NOTES ON SAFETY Do not use a cellular phone near this unit. Do not use this unit in a vehicle. Do not install the parts and/or instruments not specified for this unit. Do not use a broken power cord or AC adapter.

  • Page 6: Troubleshooting

    (1) Remove the cuff from the patient's arm. (2) Turn off the power of the unit and unplug the AC adapter from the electric outlet. (3) Display "Out of use" on this unit so that it cannot be used. (4) Contact Omron Healthcare’s Customer Service at 1-877-216-1336.

  • Page 7: Features Of The Product

    HEM-907XL Rev B 3/2/07 1:41 AM Page 7 FEATURES OF THE PRODUCT OMRON IntelliSense ® Blood Pressure unit, Model HEM-907XL is developed to measure blood pressure and pulse rate accurately and simply in a doctor's office, examination room, or patient bedside.

  • Page 8: Components Of The Product

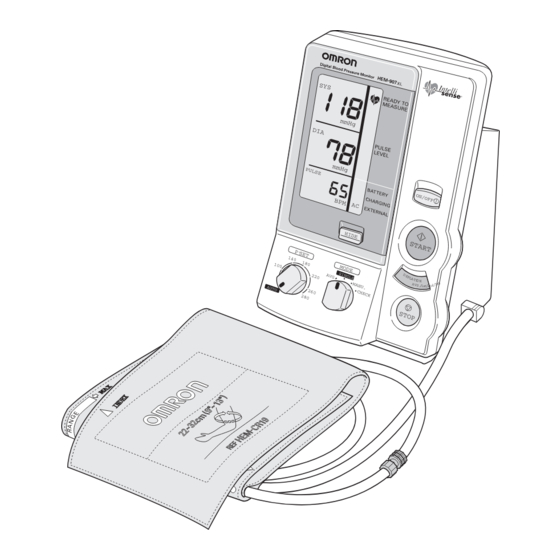

    HEM-907XL Rev B 3/2/07 1:41 AM Page 8 COMPONENTS OF THE PRODUCT Main unit IntelliSense ® Blood Pressure Monitor, Model HEM-907XL ® ® Accessories (Included and also available separately) Cuff / bladder set Large (with built-in bladder) * Model: HEM-907-CL19 Applicable arm circumference: 13"...

  • Page 9: Options

    HEM-907XL Rev B 3/2/07 1:41 AM Page 9 COMPONENTS OF THE PRODUCT (not included) Options Cuffs without bladder * Bladders * Extra Large Bladder For use with the Extra Large Cuff HEM-907XL only. For use with the Model: HEM-907-BLDRX HEM-907XL only. Model:HEM-907-CUFFX Large Cuff Large Bladder...

  • Page 10: Features And Functions

    HEM-907XL Rev B 3/2/07 1:41 AM Page 10 FEATURES AND FUNCTIONS Names of the Parts Main unit 1. Display (See Page 11 for detail) 6. ON/OFF (power) ® Button 2. HIDE (non-display) Button 7. START Button 8. DEFLATION (deflation control) /Measurement Result Display Switch Button...
  • Page 11 HEM-907XL Rev B 3/2/07 1:41 AM Page 11 FEATURES AND FUNCTIONS Display Systolic blood pressure Ready to Measure / Pulse synchronization Diastolic blood pressure Pulse level / Number of irregular pulses Number of irregular pulse waves: The pulse wave having a difference of more than 25% from the average interval of pulse waves is determined irregular.

  • Page 12: Functions And Setting

    HEM-907XL Rev B 3/2/07 1:41 AM Page 12 FEATURES AND FUNCTIONS Functions setting (1) Inflation level setting P - SET AUTO (Automatic setting): Can be used when the SINGLE, AVG, or MANU Mode is selected. The unit estimates the systolic blood pressure during inflation and inflates to a proper cuff pressure (approximately 30-40 mmHg above the patient’s systolic pressure).
  • Page 13 HEM-907XL Rev B 3/2/07 1:41 AM Page 13 FEATURES AND FUNCTIONS List of Functions for each Mode Measurement Single (SINGLE) Average Auscultation Check Mode Mode (AVG) Mode (MANU) Mode (CHECK) Mode Function Inflation level set- ting Non-display func- tion Manual deflation control (4) AVG Function setting You can set the number of measurements, the waiting time until the 1st measurement, and the...

  • Page 14: How To Apply The Cuff

    3/2/07 1:41 AM Page 14 HOW TO APPLY THE CUFF The cuff of OMRON IntelliSense ® Blood Pressure Monitor HEM-907XL plays an important role of collecting the information on blood vessels. Please wrap the cuff according to the procedure, below.
  • Page 15 HEM-907XL Rev B 3/2/07 1:41 AM Page 15 HOW TO APPLY THE CUFF 3. Place the right or left hand of the patient with the palm of hand facing upward. 4. Align the Artery Position Mark with the brachial artery. 5.

  • Page 16: How To Use The Power Source

    HEM-907XL Rev B 3/2/07 1:41 AM Page 16 HOW TO USE THE POWER SOURCE How to use the AC adapter Do not use this unit in the presence of Be sure to use the AC adapter from the flammable gas, or anesthetics, or in a high power supply of 110 VAC.

  • Page 17: Installation And Replacement Of Battery Pack

    HEM-907XL Rev B 3/2/07 1:41 AM Page 17 HOW TO USE THE POWER SOURCE Installation and Replacement of Battery Pack If battery fluid gets into your eye or comes in contact with skin, wash the affected area with water repeatedly. Immediately consult a doctor for treatment.
  • Page 18 HEM-907XL Rev B 3/2/07 1:41 AM Page 18 HOW TO USE THE POWER SOURCE Battery life • You can use the unit for approximately three hundred measurements with one charge. • Approximate life of battery is two years. However the battery life from each charging may be shortened depending on the state of using.

  • Page 19: How To Measure Blood Pressure

    HEM-907XL Rev B 3/2/07 1:41 AM Page 19 HOW TO MEASURE BLOOD PRESSURE Confirm readings with the stethoscope when If cuff inflation does not stop, remove the cuff an irregular pulse wave is displayed or when or pull out the air tube from the main unit. the measured value is questionable or erratic.

  • Page 20: Single Mode

    HEM-907XL Rev B 3/2/07 1:41 AM Page 20 HOW TO MEASURE BLOOD PRESSURE (IN SINGLE MODE) 1. Push the ON/OFF (power) Button to turn on the power. 2. Set the MODE Selector to "SINGLE". 3. Set the P-SET (inflation level) Knob to "AUTO"...
  • Page 21 HEM-907XL Rev B 3/2/07 1:41 AM Page 21 HOW TO MEASURE BLOOD PRESSURE (IN SINGLE MODE) 5. Push the START Button to start the measurement. • Do not push the START Button without wrapping the cuff. • If you want to stop measurement, push the STOP Button.

  • Page 22: Avg Mode

    HEM-907XL Rev B 3/2/07 1:41 AM Page 22 HOW TO MEASURE BLOOD PRESSURE (IN AVERAGE MODE) 1. Push the ON/OFF (power) Button to turn on the power. 2. Set the MODE Selector to "AVG". The factory-set values are set as follows: •...
  • Page 23 HEM-907XL Rev B 3/2/07 1:41 AM Page 23 HOW TO MEASURE BLOOD PRESSURE (IN AVERAGE MODE) 5. Push the START Button to start the measurement. After the pre-select waiting time, the unit takes the 1st measurement. After displaying the results of 1st measurement, subsequent measures occur automatically at the specified intervals.

  • Page 24: Manu Mode

    HEM-907XL Rev B 3/2/07 1:41 AM Page 24 HOW TO MEASURE BLOOD PRESSURE (IN MANUAL MODE) 1. Push the ON/OFF (power) Button to turn on the power. 2. Set the MODE Selector to "MANU". 3. Set the P-SET (inflation level setting) Knob to "AUTO"...
  • Page 25 HEM-907XL Rev B 3/2/07 1:41 AM Page 25 HOW TO MEASURE BLOOD PRESSURE (IN MANUAL MODE) 5. Place the stethoscope on the patient's arm. 6. Push the START Button to start the measurement. • Do not push the START Button without wrapping the cuff.

  • Page 26: How To Check Pressure Accuracy

    7. Compare the pressure values displayed on the monitor to the one on the manometer. Check result Accuracy of the monitor is validated to be ±3 mmHg or 2% of standard manometer reading. If your result shows a difference exceeding the tolerance, contact Omron Healthcare’s Cusomer Service at 1-877-216-1336.

  • Page 27: How To Clean The Unit After Use

    HEM-907XL Rev B 3/2/07 1:41 AM Page 27 HOW TO CLEAN THE UNIT AFTER USE General advice When cleaning this unit, unplug the AC • Do not clean this unit with gasoline, paint thinner, or adapter from the electric outlet. high concentration alcohol.

  • Page 28: List Of Error Codes

    Pulse rate error • Check the patient for arrhythmia. • Pulse rate did not stay within the range of 30 to 199 beats/min. Device error • Contact Omron Healthcare’s Cusomer Service • Main unit malfunction. toll-free at 1-877-216-1336.

  • Page 29: Troubleshooting

    HEM-907XL Rev B 3/2/07 1:41 AM Page 29 TROUBLESHOOTING If the unit malfunctions during use, please check the following: Trouble What to inspect How to correct Wrap the cuff correctly, and Is the cuff wrapped correctly? measure again. (Refer to Page 14 and 15.) Ask the patient not to move Is the patient moving during The unit inflates to...

  • Page 30: Caution

    This warranty extends only to the original retail purchaser. To obtain warranty service contact Omron Healthcare’s Customer Service by calling 1-877-216-1336 for the address of the repair location and the return shipping and handling fee. Information for warranty service is avalable on our website at www.omronhealthcare.com...

  • Page 31: Specifications

    HEM-907XL Rev B 3/2/07 1:41 AM Page 31 SPECIFICATIONS Name: OMRON Digital Automatic Blood Pressure Monitor Model: HEM-907XL Display: Digital display Measurement: Oscillometric method Measurement Range: Pressure; 0 to 299 mmHg Pulse rate; 30 to 199 beats/min Accuracy: Pressure; Within ±3 mmHg or 2% Pulse rate;...
  • Page 32 HEM-907XL Rev B 3/2/07 1:41 AM Page 32 For Customer Service Call Toll Free 1-877-216-1336 Manufactured by OMRON HEALTHCARE Distributed by: OMRON HEALTHCARE, INC. 1200 Lakeside Drive Bannockburn, Illinois 60015 www.omronhealthcare.com Copyright © 2007 OMRON HEALTHCARE, INC. HEM-907XLINST Rev B 1628519-0B...
