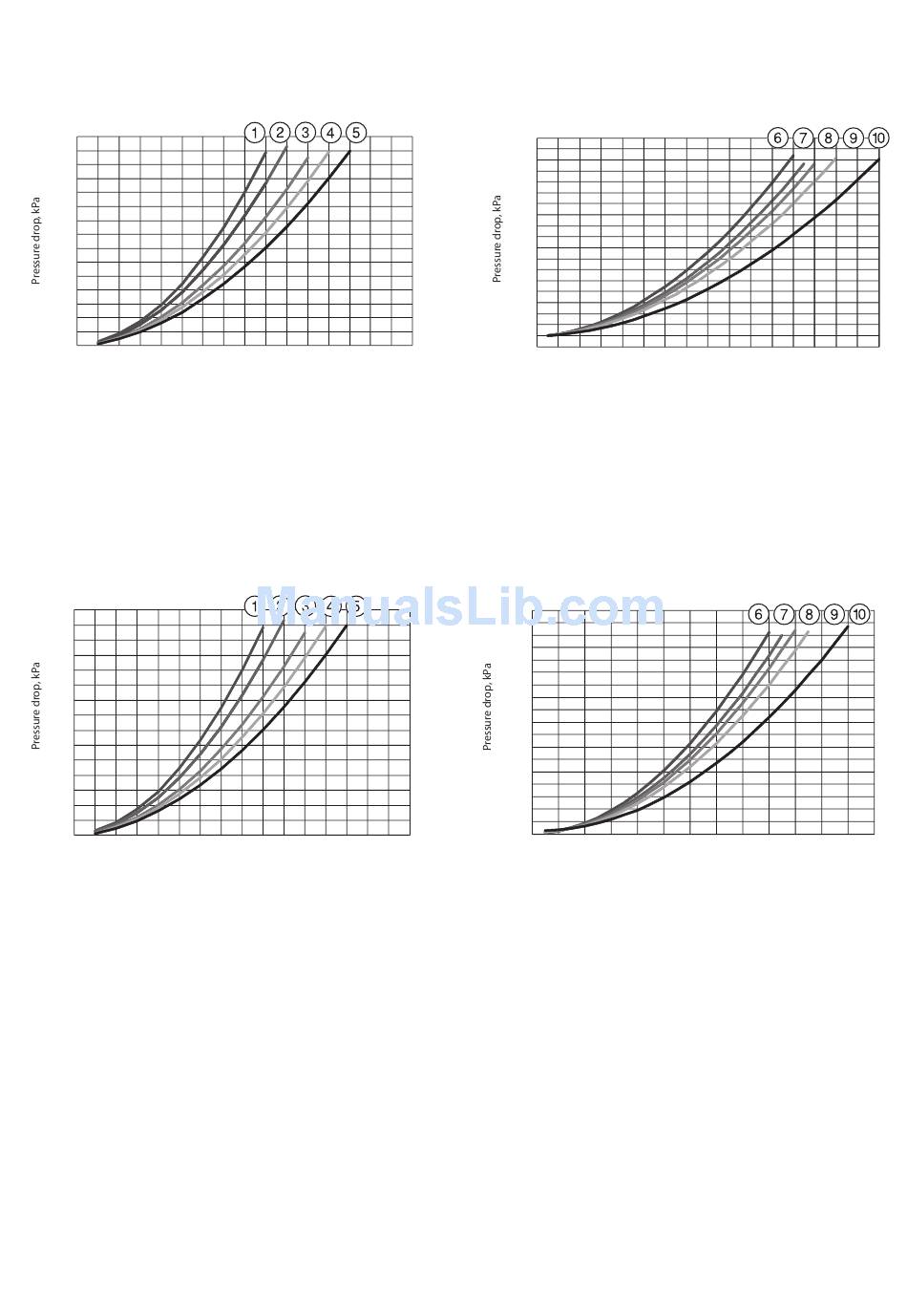

5.12 - Plate heat exchanger pressure drop (includes internal piping)

Evaporator - standard unit without hydronic module
BW10 020-045
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0
Water flow rate, l/s
1 BW10 020
2 BW10 025 to BW10 030
3 BW10 035
4 BW10 040
5 BW10 045
Condenser - standard unit without hydronic module
BW10 020-045
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0
1 BW10 020
2 BW10 025 to BW10 030
3 BW10 035
4 BW10 040
5 BW10 045
Water flow rate, l/s
BW10 050-090
180
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
-10
0 1 2 3 4 5
6 BW10 050
7 BW10 060
8 BW10 070
9 BW10 080
10 BW10 090
BW10 050-090
180
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
0 1 2 3 4
6 BW10 050
7 BW10 060
8 BW10 070
9 BW10 080
10 BW10 090
6 7 8 9 10 11 12 13 14 15 16
Water flow rate, l/s
5 6 7 8 9 10 11
Water flow rate, l/s
12 13
