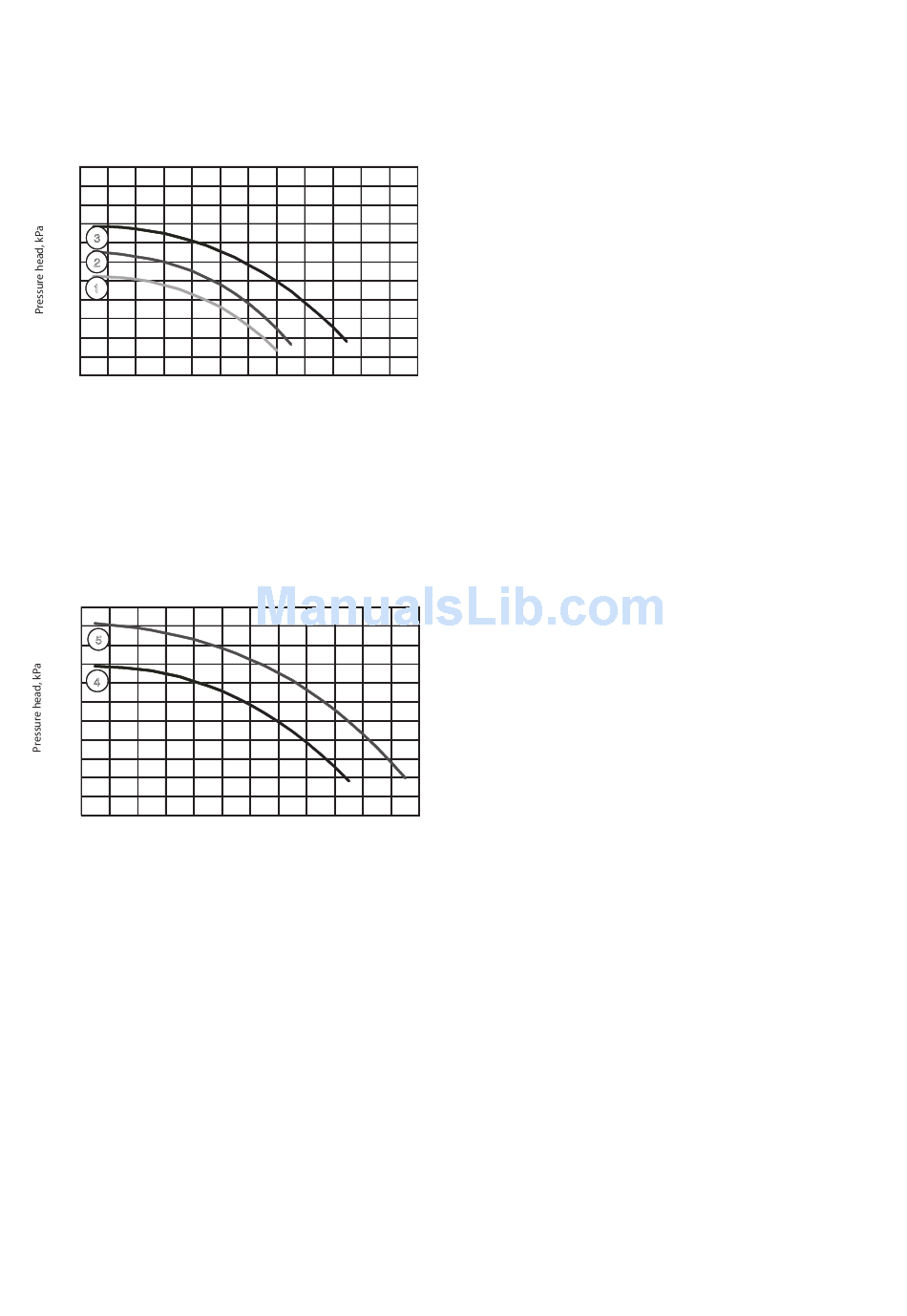

9.4 - Available static pressure for pumps only (units with
hydronic modules)
9.4.1 - Fixed-speed pump
Low-pressure pumps BW10
(options 116F - 270F)
220
200
180
160
3
140
120
2
100
1
80
60
40
20
0
0 1 2 3 4
1 BW10 020-050
2 BW10 060-080
3 BW10 090
9.4.2 - Variable-speed pump
High-pressure pumps BW10
(options 116J - 270J)
220
200
5
180
160
4
140
120
100
80
60
40
20
0
0 1 2 3 4
4 BW10 020-045
5 BW10 050-090
5 6 7 8 9 10
Water flow rate, l/s
5 6 7 8 9 10
Water flow rate, l/s
