Marshall Electronics V-R104DP-HDA User Manual

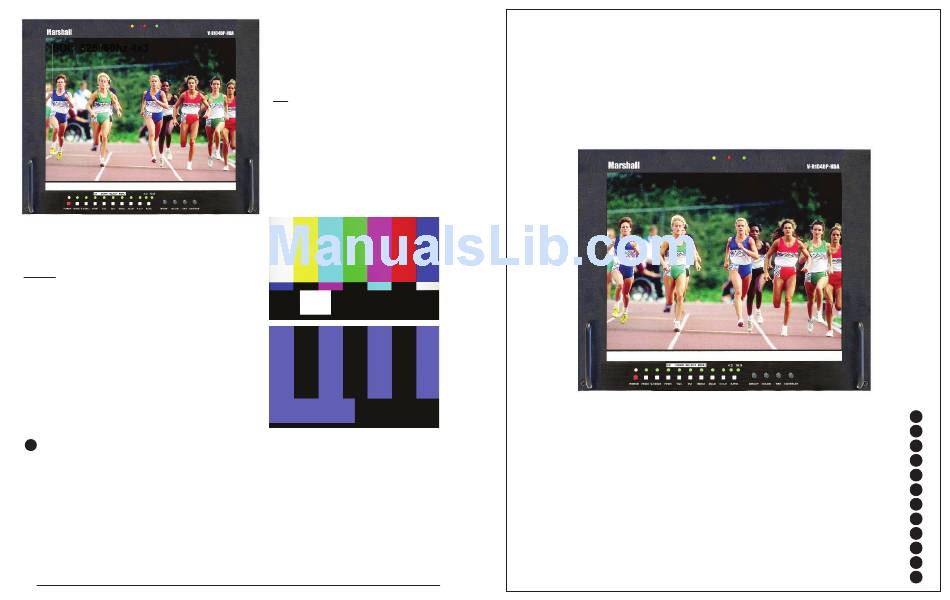

SDI: 525i/60hz 4x3
Blue Only
SELECT to adjust SMPTE or split fi eld color bars.
1. Allow monitor to warm up for 5-10 minutes minimum.
2. Display SMPTE color bars on monitor. Turn on off Color with control.
3. Find the PLUGE (superblack, black, and gray bars) at the lower right
of the pattern.
Adjust BRIGHTNESS until there is no difference visible between the super-
black and black bars, but is still visible.
4. Adjust CONTRAST control to achieve a balanced gray scale across
top bars.
5. Turn up CHROMA (color level) control until the two outermost bars
(white and blue appear to match in brightness.
6. NTSC Only -Adjust COLOR PHASE (tint or hue) control until the third
bar from the left (cyan) and the third bar from the right (magenta) appear to
match in brightness.
12 Warranty

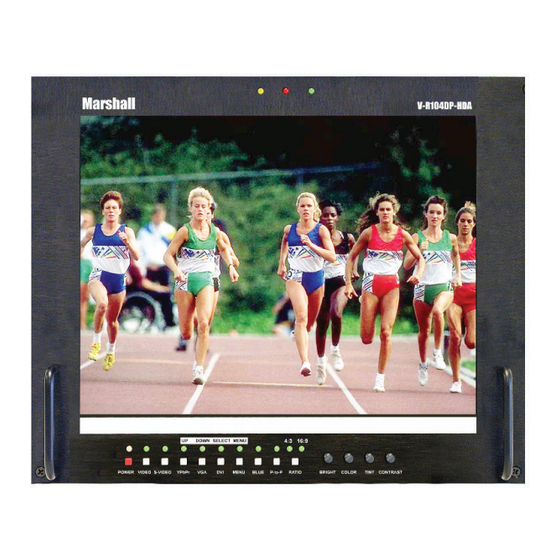

Marshall Electronics warranties to the first consumer, that this V-R104DP-HDA Dual 10.4-inch LCD rack mounted monitor set will, under
normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the
purchase date.
This warranty is extended to the purchasing end user only and proof of purchase is necessary to honor the warranty. If there is no proof
of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore,
labor and parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifica-
tions in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any war-
ranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time
period described above.
An extra note about LCD displays: It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of
the display active viewing area. Marshall Electronics has the option to reserve service for display pixel failure if deemed unobtrusive to
effective use of the monitor by our technicians.
Due to constant effort to improve products and product features, specifications may change without notice.
8
OSD
Use SELECT to enable the On Screen Display
for input and function status
Ver. 2010-0216
Marshall Electronics
V-R104DP-HDA

Users Guide

Video - Screen Formats and Frame Rates
Switch Settings, Adjustments and Indicators
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • 310-333-0606
Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
1
Product Overview
2
Features
3
4
Electrical Specifications
5
Mechanical Specifications
6
Operational Setup
7
Connectors
Faceplate Cleaning 8
Optional Accessories
9
10
Menu Functions
11
Warranty 12
