TYM T233 HST Service Manual page 91

2. Rear Transmission

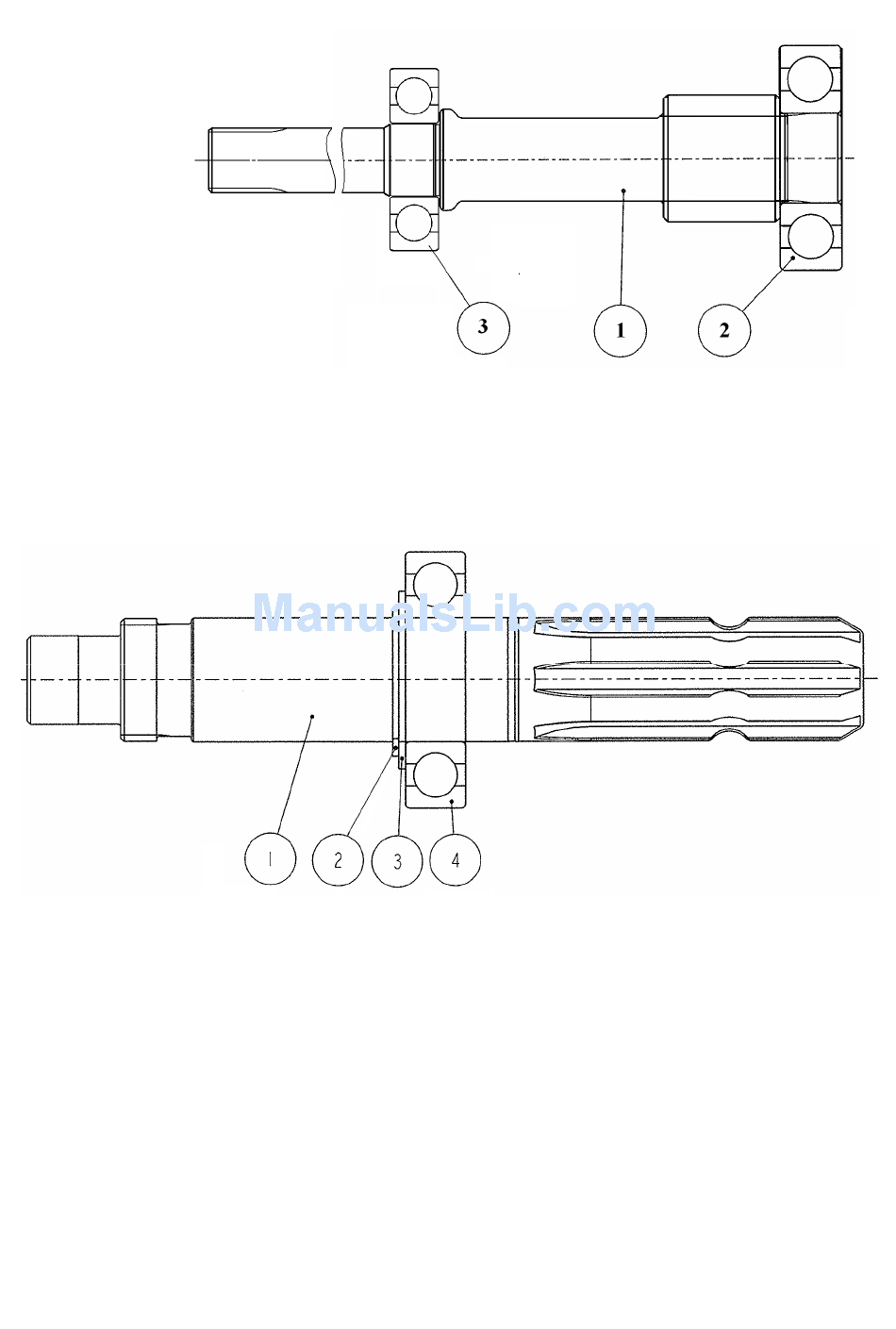

1) PTO counter shaft Sub ASS'Y
1.PTO counter shaft 11T
2.Bearing,Ball(6305)
3.Bearing,Ball(6204)
(1) Pay attention to the direction of installation and check to see all the parts turns smoothly.
(2) When pushing the BRG's (6204, 6305)in to the shaft, be careful only to push their inner races.
(3) When installing the PTO Clutch assembly, Apply a thin coat of grease to the seal rings and install it
taking care not to damage these rings.
(4) When installing seal rings, Apply fresh oil ahead of time and install them carefully so as not to
damage them.
2) PTO shaft comp
1. PTO Shaft
2.Snap ring
3.Collar(35x55x3t)
4.Bearing,Ball(6207)
(1) When pushing the BRG's (6207)in to the
(2) Pay attention to the direction of installation and check to see all the parts turns smoothly.
Fig.5-6
shaft, be careful only to push their inner races.
5-6
Fig.5-7
