Chapter 9 Hydraulic system
SECTION 1. GENERAL DESCRIPTION
The hydraulic system is composed of a gear pump, valves, oil filter, cylinder (actuator), piping, etc.
The implement lift is operated by a control valve which is actuated by the control lever through a link
mechanism.
ON and OFF of the PTO is controlled by a hydraulic, wet, multi-disc clutch whose circuit is opened and
closed by an electromagnetic valve in the flow-divider.

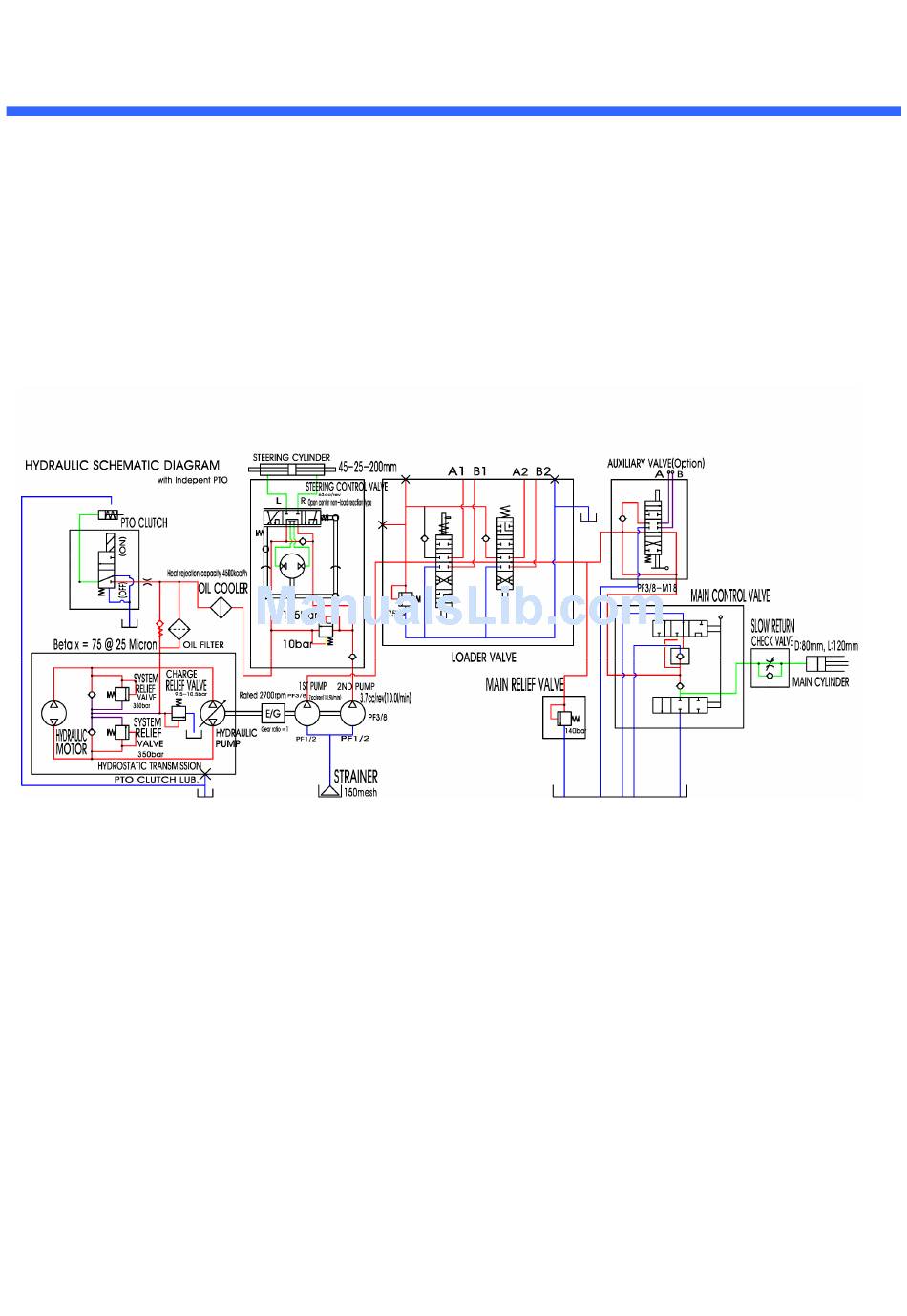

The construction and circuit of the hydraulic system are shown in Fig.9-1 and 9-2
Fig.9-1 hydraulic system construction
9-1
