Summary of Contents for TYM T290

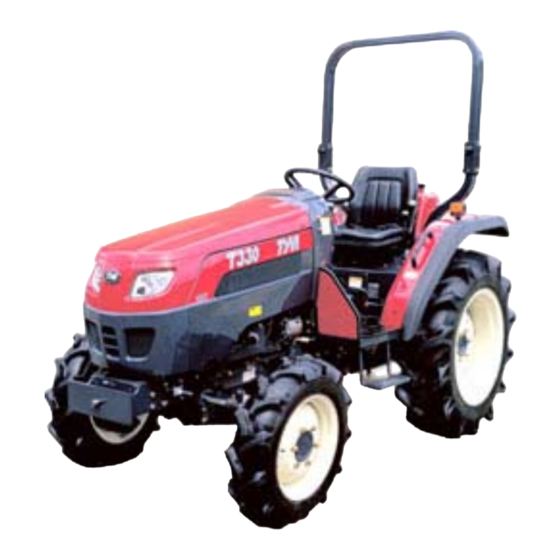

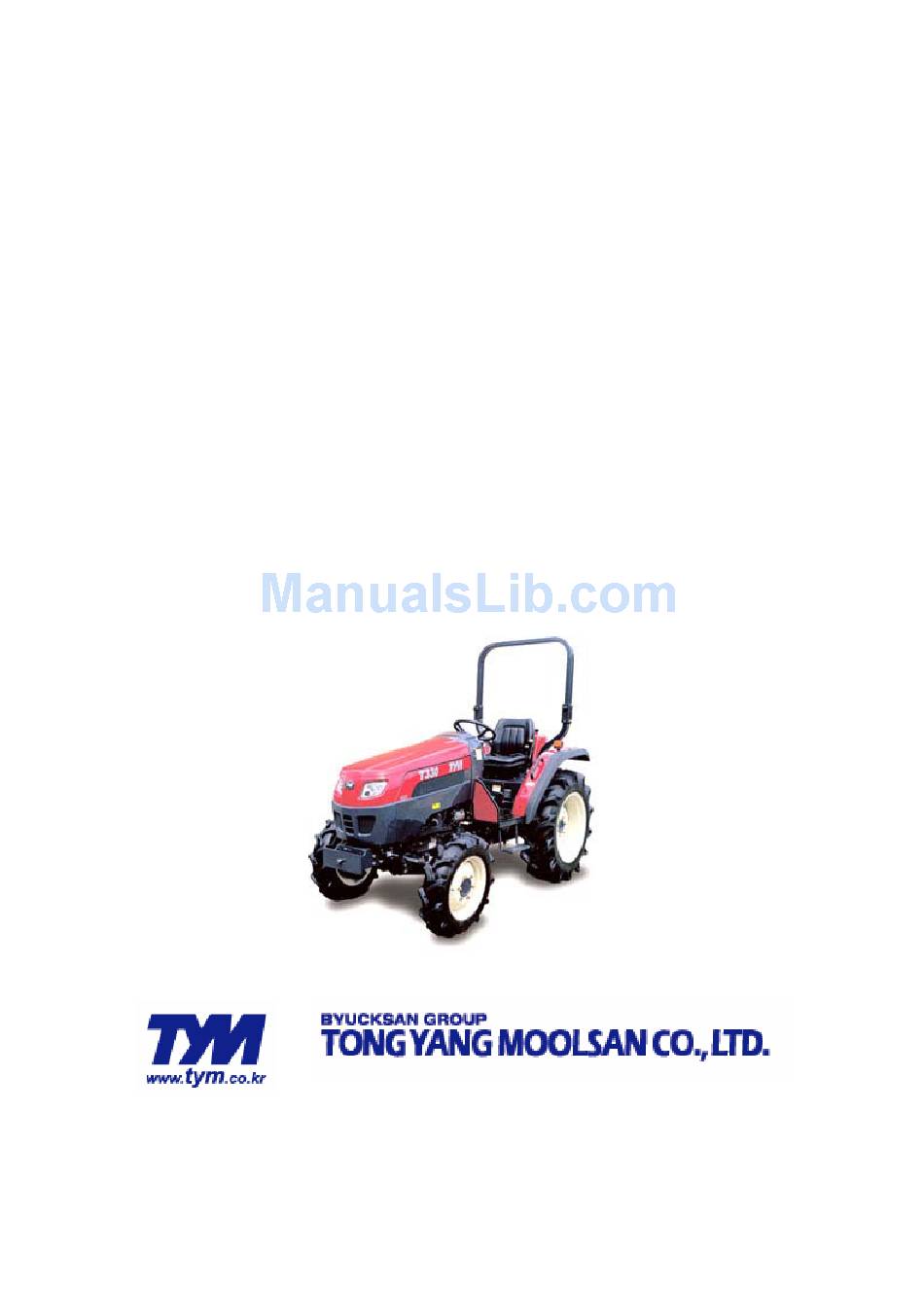

- Page 1 OPERATOR’S MANUAL TRACTORS (T290/T300/T330) 2~3 Floor Daeyong B/D #90, Nonhyeon-dong, Kangnam-gu, Seoul, Korea FAX:82-2-3014-2850 ■TEL:82-2-3014-2800, ■www.tym.co.kr...
- Page 3 KUBOTA FEDERAL AND CALIFORNIA EMISSION CONTROL SYSTEMS LIMITED WARRANTY NON-ROAD ENGINES (CI) The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), And KUBOTA Corporation are pleased to explain the Federal and California Emission Control System Warranty on your non-road engine. In California, new 1995 and later small off-road engines must be designed, built and equipped to meet California’s stringent anti-smog standards.
- Page 4 (c) You are responsible for presenting your engine to the nearest dealer or service station authorized by KUBOTA when a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities or the location of the nearest authorized dealer or distributor, you should contact KUBOTA ENGINE AMERICA CORPORATION, Service Department at (847) 955-2500, KUBOTA TRACTOR CORPORATION, National Service...
- Page 5 MAINTENANCE REQUIREMENTS The owner is responsible for the performance of the required maintenance as defined by KUBOTA in the operator’s manual. LIMITATIONS This Emission Control System Warranty shall not cover any of the following; (a) Repair or replacement required because of misuse or neglect, improper maintenance, repairs improperly performed or replacements not conforming to KUBOTA specifications that adversely affect performance and/or durability, and alteration or modifications not recommended or approved in writing by KUBOTA.
- Page 7 FOREWARD Thank you very much for purchasing our tractor, which, we feel sure, will give you many years of troubling the service. The introduction in this manual set out the correct manner of operating, maintaining and checking the tractor to ensure long-term durability. Please ensure correct operation of the tractor as incorrect operation can cause substantial mechanical damage as well as cause accidents with the associated injuries.
- Page 8 CONTENTS Sr. No. Description Page No. Tractor Identification About this manual Introduction & description Owner assistance ROPS (Roll over protection structures) 9~11 Safety instructions, Do’s & Don’ts 12~25 Safety signs 26~28 Universal symbols Section A Controls, Instruments & Operations 31~51 Section B Lubrication &...
- Page 9 The manufacturer warrants this product and full details of the warranty are provided on a separate warranty schedule. SERVICE. Service is available from any TYM dealer in the country. PARTS. To obtain spare parts please contact your nearest dealer and give him the details listed below.
- Page 10 Prior to delivery, The tractor was carefully inspected, both at the factory and by your TYM Dealer/Distributor, to ensure that it reaches you in optimum conditions .To maintain this condition and ensure trouble free performance. it is important that the routine services, as specified in this manual, are carried out at the recommended intervals.
- Page 11 Power Take or PTO shaft. In this book the operating, maintenance and storage instructions for all models of TYM Diesel Tractors has been complied. This material has been prepared in detail to help you in the better understanding of maintenance and efficient operation of the machine.
- Page 12 Presently, TYM Tractors are fitted with partial synchro mesh type gears. ■ Brakes TYM tractors are provided with independent disc brakes operated by two road travel. A foot brake lever is fitted for parking. ■ Rear axle & Wheels This is mounted on ball bearings and is enclosed in removable housing which are bolted to the transmission case.
- Page 13 ■ Steering It consists of Hydrostatic Power steering system, which has a hydraulic cylinder and tandem type hydraulic pump ■ Electrical System A 12 Volt Lead Acid Propylene Battery is used to activate the Engine through the Starter Motor and the Electrical system comprising Horn, Head Lamp, Side indicator Lamps, Plough Lamp, Brake Light, Gauge lamp, Hazard Lamp.
- Page 14 • Nature of problem Before contacting TYM.CO.,LTD. office, be aware that your problem will likely to be resolved in the Dealership using the Dealer’s/Distributor’s facilities, equipment and personnel. So it is important that your initial contact be with the Dealer/Distributor.
- Page 15 (ROPS) Roll Over Protective Structures Roll Over Protective Structures (ROPS) TYM CO.,LTD Tractors are fitted with a frame for the protection of Operators of Tractors to minimize the possibility of serious operator injury result from accidental upset. These are called as...
- Page 16 Damage of the ROPS If the tractor has rolled over or the ROPS has damaged (such as striking an overhead object during transport), It must be replaced to provide the original protection. After an accident, check for damages to the 1.ROPS.2.Seat 3.seat belt &...
- Page 17 Seat Adjusting Lever Figure 1 NOTE: Do not use solvents to clean the seat. Use warm water with a little detergent added. Before operating a Tractor it is important to adjust the seat to the most comfortable position & check whether it is properly locked in its position.
-
Page 18: Safety Instructions
SAFETY INSTRUCTIONS RECOGNIZE SAFETY INFORMATION This symbol means ATTENTION! YOUR SAFETY IS INVOLVED. The message that follows the symbol contains important information about safety. Carefully read the message SIGNAL WORDS. A signal word―DANGER, WARNING OR CAUTION―is used DANGER with safety alert symbol. DANGER identifies the most serious hazards. - Page 19 USE OF ROPS AND SEAT BELT The Roll Over Protective Structure(ROPS) has been certified to industry and/or government standards. Any damage or alternation to the ROPS, mounting hard-ware, or seat belt voids the certification and will reduce or eliminate protection for the operator in the event of a roll-over. The ROPS, mounting hardware, and seat belt should be checked after the first 100 hours of Tractor and every 500 hours thereafter for any evidence of damage, wear or cracks.
- Page 20 HANDLE FUEL SAFELY-AVOID FIRES Handle fuel with care; it is highly flammable. Do not refuel the Tractor while smoking or near open flame or sparks. Always stop engine before refueling Tractors. Always keep your tractor clean of accumulated grease, and debris. Always clean up spilled fuel.
- Page 21 AVOID HIGH-PRESSURE FLUIDS Escaping fluid under pressure can penetrate the skin causing serious injury. Keep hands and body away from pinholes and nozzles, which eject fluids under high pressure. If ANY fluid is injected into the skin. Consult your doctor immediately. PREVENT BATTERY EXPLOSIONS Keep sparks, lighted matches, and open flame away from the top of battery.
- Page 22 WORK IN VENTILATED AREA Do not start the Tractor in an enclosed building unless the doors & windows are open for proper ventilation, as tractor fumes can cause sickness or death. If it is necessary to run an engine in an enclosed area remove the exhaust fumes by connecting exhaust pipe extension.
- Page 23 SAFE OPERATION OF YOUR TRACTOR The manufacturer of your tractor has made every effort to make it as safe as is humanly possible. Beyond this point it is the responsibility of the operator to avoid accidents and we ask that you read and implement our suggestions for your safety.
- Page 24 SAFETY TIPS DURING MAINTENANCE 1. At least on a daily basis check all oil levels. Water level in the radiator and electrolyte level in the battery and perform services according to the service schedule. 2. Ensure tire pressure are even and the correct pressure for the job being done is maintained. 3.
- Page 25 ► MOUNTING AND DEMOUNTING IMPLEMENTS (1)Ensure that all mounting and removal of implements is done on safe flat ground. Ensure no one is between the Tractor and implement and do not get under the implement to avoid accidental injuries. (2) After mounting the implement, ensure that all sway chains are correctly adjusted and, where PTO shafts are used that the shaft is fitted and secured correctly.
- Page 26 The following precautions are suggested to help prevent accidents. A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. Read and take the following precautions before operating the Tractor to prevent accidents. Tractor should be operated only by those who are responsible and properly trained to do so.
- Page 27 On some models shuttle shifter lever and PTO button should also be in neutral position for completing the starting circuit. Do not bypass the safety starter switch. Consult your TYM Tractor Dealer/Distributor if safety- starting switch malfunctions. 4. Avoid accidental contact with the gear shifter lever while the engine is running. Unexpected Tractor movement can result from such contact.
- Page 28 ■ Driving the tractor 1. Watch where you are going especially at row ends, on roads, around trees and low hanging obstacles. 2. To avoid upsets, drive the tractor with care and at speeds compatible with safety, especially when operating over rough ground, crossing ditches or slopes, and when turning at corners. 3.
- Page 29 7.Wipe up spilled fuel immediately. 8.Always tighten the fuel cap securely. 9.If the original fuel tank cap is lost, replace it with genuine cap. A none approved cap may not be safe. 10.Do not drive equipment near open fire. 11.Never use fuel for cleaning purpose. 12.Arrange fuel purchases so that winter grade fuel are not held over and used in the spring.
- Page 30 DO’S AND DON’T’S DO’S-For Better performance DO-Ensure that safety shields are in place and in good condition. DO-Read all operating instructions before commencing to operate Tractor. DO-Carry out all maintenance tasks without fail. DO-Keep the air cleaner clean. DO -Ensure that the correct grade of lubricating oils is used and that they are replenished and changed at the recommended intervals.
- Page 31 DON’T-Run the engine if it is not firing on all cylinders. DON’T-Ride the brake or clutch pedal. This will result in excessive wear of the brake lining, clutch driven member and clutch release bearing. DON’T-Use the independent brakes for making turns on the highway or at high speeds. DON’T-Refuel the tractor with the engine running.
- Page 32 SAFETY SIGNS (Replace all missing, damaged or illegible signs) GENERAL SAFETY INFORMATION IMPORTANT: This “General safety Information” should be kept with the machine at all times as reference data. This symbol means ATTENTION! YOUR SAFETY IS INVOLVED. The message that follows the symbol contains important information about safety. Follow recommended precautions and safe operating practice.
- Page 33 Location: On Radiator shroud Location: On Radiator side LH&RH Part No.: 1200-910-015-0 Part No.: 1200-910-012-0 Location: On Dash cover Side RH Part No.: 1200-910-023-0 CAUTION DANGER TO PROTECT ENGINE AND HYDRAULIC COMPONENTS. Rotating driveline contact can cause ● Idle engine for 1 minute Death before shut down for full load KEEP AWAY !
- Page 34 DANGER WARNING ● Pull only from drawbar. Pulling from any BLINDNESS CAN RESULT FROM BATTERY EXPLOSION. other point can cause rear overturn. KEEP SPARKS OR OPEN ● Do not operate with unshielded PTO. FRAMES AWAY FROM ● Disengage PTO and stop engine before BATTERY.
- Page 35 UNIVERSAL SYMBOLS Some of the universal symbols have been shown below with an indication of their meaning Engine speed Pressured- Corrosive rev/minX100) open slowly substance Hours, Continuous ”Tortoise” recorded variable Slow or minimum Setting Engine ”Hare” fast or coolant Warning maximum temperature setting...
- Page 37 It is too late to learn once the Tractor is moving. If in doubt about any aspect of the operation of the tractor consult your TYM Co., LTD Tractor Dealer/Distributor. Particular attention should be paid to the recommendations for running-in to ensure that your tractor will...
- Page 38 DESCRIPTION OF TRACTOR CONTROLS INSTRUMENT AND SWITCHES ►Main switch [OFF]-The key can be inserted or removed [ON]- The electric circuit is on. [Glow]-Glow plugs preheat the combustion chamber [START]-The starter motor is engaged. When the key is released it will return to the ON position...
-
Page 39: Hour Meter
►LIGHT SWITCH, INDICATORS AND HORN High and low beam are operated On the main switch Position 1. High beam Position 2. Low beam ►TACHOMETER This meter shows the revolutions of the engine and the PTO shafts as well as the travel speed in top gear. (1) Right needle Indicates speed in top gear. - Page 40 ►WARNING LIGHTS Charge lamp This light will go off as soon as the engine starts to run to indicate that the alternator is changing. (Please note, as broken fan belt can cause the light to come on, please stop the engine as overheating can occur if not rectified immediately) Oil pressure lamp Will go out as soon as the engine starts if the oil pressure is correct.
- Page 41 ►Independent PTO ■ The PTO monitor lamp on the dash panel indicates the state of the PTO shaft. 1. If the monitor glows: The PTO is rotating 2. If the monitor is off: The PTO is off 3. If the monitor blinks: The PTO is presently stationary but will instantly start rotating of the clutch pedal is released or the implement is lowered PTO monitor Lamp Two switches operate the independent PTO.
- Page 42 First select the specified speed for the PTO by using the PTO shifter on the LHS, below the driver seat. Clutch Pedal. Hydraulic PTO Monitor PTO SHAFT Position ON/OFF Control Lamp on the Control Lever. dash panel Switch Switch Manual Either pressed Either raised Glows...
- Page 43 TRACTOR CONTROLS ►Hand Throttle Pulling the hand throttle towards the driver increases revolutions. Pushing it away from the driver decreases revolution. ►Clutch disconnecting arm For long term storage of the Tractor it is possible to latch the clutch in the disengaged position.
- Page 44 ► BRAKE PEDAL Right and left brake pedals are provided to assist in turning the tractor in the field. A connecting latch is provided to connect the right and left brake pedals for high speed or road use. In the interest of safety always use it on the road or at high speed as using one side only can cause rollovers.
- Page 45 When changing from toward to reverse or back to forward again while in high range make sure the tractor comes to a stop before changing direction. Failure to do so is likely to result in damage to the mechanism and place the driver at risk of injury.
- Page 46 Do not use high engine RPM when engaging Diff lock If the diff lock does not release after removing the foot from the diff lock pedal alternatively brake with the left and right brake until it gets released. important Never use the diff lock at high speed or on the road as this can cause roll over and injury.
- Page 47 PTO GEAR SELECTION LEVER Your tractor is equipped with 1 speeds PTO to suit range of applications and conditions. (T290/T300/T330) PTO : 540 rpm @ E/G 2541 rpm Always use the clutch when engaging or disengaging the PTO or changing PTO speed.
- Page 48 To raise the implement: Pull the lever back To lower the implement: Push the lever forward. After finishing the work, always lower the implement to the ground and switch off the engine, Set the parking brake to avoid injuries and accidents . Warning ▶Lowering speed control knob for the 3 point hitch This knob controls the downward speed of the hydraulics three point linkage and is positioned at the front of...
- Page 49 OPERATING THE 3 POINT LINKAGE (TPL)
- Page 50 ▶ADJUSTING THE CHECK CHAIN To adjust the check chain turn the turnbuckle to lengthen or shorten the chain and tighten the lock nut when the correct adjustment is achieved. ▶ADJUSTMENT OF THE TOP LINK Lengthening or shortening the top link will change the angle of the implement.
- Page 51 ▶ USE OF THE RETENTION SPRING When not using implements on the three point linkage use the rubber as shown to prevent tire damage. Only use drawbar to tow and keep the 3 point linkage in raised position when towing with the drawbar. Position can create unbalance causing the Tractor to roll-over &...
- Page 52 DRIVING THE TRACTOR STARTING THE ENGINE Before starting the engine carry out the pre-operational checks as set out on page 16. (1) Sit on the driver seat (2) Apply the footbrake. (3) Put the hydraulic lever in the down position. (4) Push down the clutch to activate the safety-starting switch.
- Page 53 WARMING UP When starting the engine allow it to warm up to operating temperature by allowing it to idle 5-10 minutes to ensure full lubrication and operating temperature. Failure to do so can shorten engine life substantially. ▶WARMING UP IN COLD WEATHER Cold weather will change the viscosity of the oil, resulting in a reduced oil pumping capacity, which can cause damage to the engine if it is not warmed up correctly.
- Page 54 Do not ”ride” the clutch to control speed, use a lower gear. Do not travel with your foot on the clutch pedal. Caution Always connect the brake pedals when traveling on the road. Never tow anything except with the drawbar. Do not tow loads which are too large for the tractor’s capacity to brake effectively especially in hilly terrain.
- Page 55 UPHILL STARTS ON A STEEP SLOPE With the pedals connected together push down on the brake pedals and push down the clutch. Set all gear levers to low and the throttle to medium engine speed. Release the clutch and as it engages release the brake pedals. Adjust the throttle to the required speed.
- Page 56 ▶Fuel gauge. To avoid excessive condensation in the fuel tank refill at the end of each day’s work and ensure during the day that it does not drop to a low level where the fuel system will require bleeding to expel air in the system after refilling the tank.
- Page 57 ▶ Track adjustment As some models of TYM are front wheel assist the front track can be set in 2 position. The rear track can be set in 5 positions as illustrated.
- Page 59 Section-B Lubrication & Maintenance This section gives full details of the service procedures necessary to maintain your Tractor at peak efficiency while the lubrication and maintenance chart provides a ready reference to these requirements.
-
Page 60: Engine Oil
CHECKS AND SERVICE PRE-START CHECKS To avoid problems it is recommended that a range of checks be carried out daily before starting the tractor. For full details of the items and frequency please refer to the tables on page 57, 58 and ▶Engine coolant Remove the radiator cap and ensure that the coolant is up to the filler neck and that it is clean with the correct anti-freeze or anti... - Page 61 ▶ Fuel Use the fuel gauge to check the fuel level and top up if too low. It is a good practice to refill the tank immediately after use to avoid condensation ▶ Tire pressure The air pressure used in the tires has a direct bearing on the life of the tire and its performance in the field.
- Page 62 ▶ Steering Ensure that the steering wheel does not have excessive free play. ▶ Brake Ensure that the left and right brakes are adjusted correctly so they operate simultaneously. The correct free play on the brake is 1.18-1.57 in. ▶ Clutch Ensure that the clutch is adjusted correctly.
- Page 63 MAINTENANCE AND ADJUSTMENT SCHEDULE Periodical check and service table ○ Check, Top-up or adjust ● Replace △ Clean or wash ★ Consult the service Dealer Item Service interval(hour meter,mark) Frequency Comment Engine Change every To correct level on ○ ● ●...
- Page 64 Item Service interval(hour meter,mark) Frequency Comment Trans Change every ○ ● ● 300 hours after mission oil first 50 hours Free play Check daily (0.78-1.18in) ○ of clutch pedal Free play Check daily (1.18-1.57) ○ of brake pedal State of Check daily Adjust so that both ○...
- Page 65 600 hours ○ Check every year Without loose or Check the electric broken terminals. wiring Without damaged or missing wiring. Correctly clamped DIVISION SIZE Air pressure (PSI) MODEL Front 7~16 25.6 psi T290 T300 Rear 11.2~24 17 psi T330...
- Page 66 FILLING DIAGRAM & CAPACITY TABLE Filling point Fillings Quantity Liter (gal.) MODEL T290/T300/T330 RADIATOR Fresh clean Water(L.L.C) 7ℓ (1.85 US gal) ENGINE API : CD/CE grades 5.7ℓ (1.51 US gal) Above:25°C(77°F)…SAE30 or 10W-30 0°C to 25°C(32°F to 77°F)…SAE20 or 10W30 Below 0°C(32°F)…SAE 10W or 10W-30...
- Page 67 ▶ Recommended Transmission oil ① RPM Tractor Hydraulic Fluid or Textron TDH Premium (CALTEX) ② TDH Oil or TDH Oil special (TEXACO) ③ Chevron 1000THF (CHEVRON) Opening method of each cover ▶ Opening method of fan cover Pull the Handle lock of the front grille, pull the lower edges of hood panel upward, and pull the whole side panel forward.
- Page 68 BLEEDING THE FUEL SYSTEM 1) Fuel filter cock 「 ON 」 2) Open the cock on the fuel injection pump 3) Fill the tank with fuel and turn the ignition key to on. 4) Start the engine and allow it to run for a while 5) Close the fuel injection pump cock.
- Page 69 When changing the oil always change the filter. Always use the same oil, as using different oils or specifications can cause damage. important Dispose off the old oil as per local regulations. ▶ Changing the transmission oil Remove the drain plug from bottom of the transmission and drain the oil.
-
Page 70: Oil Filter
CLEANING AND CHANGING FILTERS ■ OIL FILTER Using a filter wrench turn the filter anti clockwise to remove it. Lightly smear the rubber seal on the new filter with oil to ensure, turn it clockwise until the seal contacts the base and then turn it another 2/3 turn to tighten it. - Page 71 ▶ HYDRAULIC OIL FILTER Remove the filter with a filter wrench. To replace, apply oil or grease on the seal, fit by hand until seal contacts bare, then turn it 2/3 turn further to tighten it check for leaks.
- Page 72 CHANGING THE COOLANT (1) Open the tap in front of the gear pump to drain the coolant. (2) Open the radiator cap at the same time. (3) To give a thorough clean run a hose into the radiator and flush it out. (4) Close the tap and refill the radiator with a coolant mixture of water and corrosion inhibitor or anti freeze.
- Page 73 Water or air under high pressure can distort the cooling fins on the radiator and reduce its efficiency. important GREASING THE TRACTOR Grease the tractor according to the service schedule (page 60) Ensure that grease nipples are cleaned well before any attempt is made to grease them. Grease nipple...
- Page 74 GAP ADJUSTMENT ON THE FRONT AXLE Lift the front with a hydraulic jack to get the wheels of the ground. Bolt Then loosen the nut and tighten the bolt fully and turn the bolt ½ to loosen again in order to roll the center pivot metal freely and tighten the nut again.
- Page 75 ▶Adjustment method. Loosen the locknuts at each end and turn the rod to adjust the brake. Turning it anticlockwise increases the free play, clockwise decreases it. Tighten the locknuts. Check that the free play is correct and the same on both pedals to ensure even braking Uneven adjustment of the left and right pedal will result in one sided braking when the pedals are connected and can cause serious accidents, especially at high speeds.
-
Page 76: Battery Maintenance
▶BATTERY MAINTENANCE Low temperatures will affect the performance of batteries so take particular care of it in winter. For long-term storage of the tractor remove the battery and keep it in a cool dry room. If it is on the tractor while stored, disconnect the negative terminal. Batteries will self discharge if left for a period of without use time. - Page 77 SERVICING THE AIR CLEANER To remove the dust from the evacuator valve squeeze it between thumb and fingers to let excess dust out and wipe around the valve to keep it clean from outside. Vacuity valve To clean the main element, remove the right fan cover.
- Page 78 CHECKING THE WIRING HARNESS AND FUSES Loose wires make inferior connections and damaged wires can cause short circuits, fires burnt wiring or reduce efficiency of components. Replace or repair any faulty wiring or insulation. If a fuse burns out again after it has been replaced, do not replace it with wire or a high capacity fuse, find the cause and rectify it or get an auto electrician to do so.
- Page 79 3.MAINTENANCE For daily or short term storage Clean the tractor and remove all dirt from field work. Fill the fuel tank to avoid condensation and rust. Lower the implement to the ground.. Keep it in a machinery shed or, if not available cover the unit if left outside. In very cold conditions it is advisable to remove the battery and keep it inside in a warm environment.
- Page 80 Long-term storage. When the tractor will not be used for a long time carry out the cleaning as for short term storage. Drain the oil and replace with new oil. Run the engine for approx. 5 min. to ensure that it has new oil throughout the engine. Drain the coolant from the radiator and remove the ignition key.
-
Page 81: Specifications
Tractor and equipment, consult your Authorized TYM CO., LTD Dealer/Distributor. TYM CO., LTD policy is one of continuous improvement and the right to change prices, specifications or equipment at any time without notice is reserved. All date given in this book is subject to production variations. Dimensions and weights are approximate only and the illustrations do not necessary show Tractors in standard condition. - Page 82 SPECIFICATIONS T290/T300/T330 ENGINE CLUTCH Four strokes, Direct injection, water-cooled Type : Dry single plate Diesel Engine. Model D1503-M Outer dia. X Inner dia. : 8.86 X 5.9″ No. of cylinders TRANSMISSION Swept Volume 91.47 in³ Bore :3.26 in Type : synchro mesh Stroke :3.64 in...
- Page 83 ▶ MAIN SPECIFICATIONS Model T290/T300/T330 Traveling Speed Overall length (mm) 3290 (129") Forward Reverse (mile/h) (mile/h Overall width(mm) 1320 (52") Overall height(mm) 2360 (92") 0.55 0.53 Distance between shafts(mm) 1640(64") 0.75 0.73 Front 1067 (42") Tread(mm) 0.96 0.94 Rear 1029~1345 1.33...
-
Page 84: Fuel Saving Tips
FUEL SAVING TIPS To save fuel & oil in your tractor, following things should always be kept in mind. A) Air cleaning system 1) Clean the air cleaner regularly so that dust does not settle down. 2) For every 50 hours & everyday in sandy/dusty conditions. (a) Clean the air cleaner filter element with compressed air. - Page 85 E) Engine Oil 1) Always use recommended grade of oil. 2) Everyday before starting the engine, check the oil level with a dipstick & refill between the minimum & maximum level. 3) Charge the engine oil, Replace filter & “O” ring, as & when required. F) Cooling system 1) Check the fan belt tension regularly.
- Page 86 FAULT TRACING SYMPTOM CAUSE REMEDY Turning the main switch Clutch not pushed in Push the clutch in will not operate the starter Battery flat Charge or replace the battery Dealer to repair or replace Switch faulty Contact dealer for repair or replace Starter operates but not Low battery...
- Page 87 SYMPTOM CAUSE REMEDY White smoking from the Oil level too high Reduce to correct quantity exhaust Shortage of or faulty fuel Contact dealer for repair Reduced performance of The injectors are clogged, Contact dealer for repair the engine carbon coated and sticking Low compression Leaking valve seat Contact dealer for repair...
- Page 88 SYMPTOM CAUSE REMEDY The clutch slips Incorrect adjustment Adjust to correct free play Worm or burnt lining Contact dealer for repair The clutch does not Incorrect adjustment Adjust to correct free play Contact disengage Rusty clutch lining dealer for repair Brake not working Incorrect free play Worm Adjust to correct free play Contact...
- Page 89 SYMPTOM CAUSE REMEDY Steering wheel shaking Wrong toe-in Adjust toe-in Unequal tire pressure Inflate both to correct pressure Loose component Tighten or replace if worn Excessive play in the Worn steering shaft Contact dealer for repair steering Worn components Contact dealer for repair Flat battery Faulty wiring Repair,reconnect or tighten as...
- Page 91 T290/T300/T330 WIRING DIAGRAM...
- Page 93 ▶Drawing for fixing position of the fuse ▶Wiring diagram of the electric instrument Fuse box 3 pieces of fuse blinks Head lamp 12V45/45W Power for the working Direction signal lamp 12V21W Units for direction Stop lamp back light 21/5W Signal relay for the power Meta panel light 12V3.4W PTO monitor...
- Page 94 Wiring diagram of Independent PTO...
- Page 95 ◎ T290 /T300/T330 POWER TRAIN...
- Page 96 TRACTOR HISTORY CARD DATE JOB CARD NATURE OF PARTS REPLACEMENT W/CLAIM NO. REMARKS DEFECT AND DATE...
- Page 97 SERVICE RECORD DATE TRACTOR HOURS NATURE/TYPE OF REPAIR/SERVICE CARRIED OUT...
- Page 98 DAILY OPERATION LOG DATE JOB DONE MACHINE HOURS FUEL ENGINE OIL CONSUMPTION TOPPED UP REMARKS START...
- Page 99 PART REPLACEMENT RECORD DATE PART COST DATE PART COST DESCRIPTION DESCRIPTION...
- Page 100 T290/T300/T330 OPERATOR’S MANUAL FOR TRACTORS CODE NO. 1350 – 912 – 002 – 0 Printed on Dec. 2005 4th EDITION...
