E3 Path+, Venture, Detour
This manual is meant to be read together with the owner's manual, also included with
your bicycle. The owner's manual contains important safety and use information about your
bicycle. Be sure to read both manuals before riding for the first time, or performing any
assembly. If you did not receive an owner's manual, the most recent version can always
be found online at www.CurrieTech.com.
10/29/14
System Operation Manual
EBCC Technical and Customer Service: +1 800-377-4532
1
/16
Advertisement
Table of Contents
Related Manuals for Currie tech E3 Path+
Summary of Contents for Currie tech E3 Path+
- Page 1 System Operation Manual E3 Path+, Venture, Detour This manual is meant to be read together with the owner’s manual, also included with your bicycle. The owner’s manual contains important safety and use information about your bicycle. Be sure to read both manuals before riding for the first time, or performing any assembly.
-
Page 2: Table Of Contents
System Operation Manual - E3 Path+, Venture, Detour C on t ents Section 1 Electrical System Components ....4 Section 2 General information ......8 Section 3 Basics . - Page 3 System Operation Manual - E3 Path+, Venture, Detour Not ic e! Fuse cover Your bike ships without the battery fuse installed. This helps keep the battery in top condition during shipping and storage. Before using your bike for the first time, you’ll need to install the fuse, as shown in the diagram above.
-
Page 4: Electrical System Components
System Operation Manual - E3 Path+, Venture, Detour Electrical System Components Battery and rack Battery charging port Battery lock Control pad CONTROL PAD BUTTONS Assist level Light Power Info Cruise control C, D Operational details, see p .12-14 DP12D DP12C MY2015 M07/M35: MY2015 M19: Peak, Peak DS, Sumo, Protour... - Page 5 System Operation Manual - E3 Path+, Venture, Detour Display DISPLAY FUNCTIONS Ambient light sensor Main display area Speed Odometer Distance Range Maintenance indicator Distance unit Assist level indicator Cruise control indicator Low battery warning indicator Battery level indicator Throttle 10/29/14...
-
Page 6: Battery Charger
System Operation Manual - E3 Path+, Venture, Detour Battery charger LED indicator Charging plug Wall plug Power cord Charging cord Power socket Power plug Rear wheel Motor connector 10/29/14... - Page 7 System Operation Manual - E3 Path+, Venture, Detour 10/29/14...
-
Page 8: General Information
System Operation Manual - E3 Path+, Venture, Detour General information USE RESTRICTIONS Intended Condition 2 (General purpose riding) Minimum 16 years rider age Maximum 110 Kg (242 lbs) permissible weight 1. This bicycle is intended to be used under the guidelines of the stated condition, found in the intended use section of your owner’s manual. - Page 9 System Operation Manual - E3 Path+, Venture, Detour TECHNICAL SPECIFICATIONS Motor Type Rear hub drive Rated power 500w Peak torque 42 Nm Battery Voltage 48V nominal Capacity 8.8Ah Energy 422Wh Cycle life ~700 (expected) Charger Input voltage 110-240V AC (auto-sensing) Frequency 50/60Hz Input current...
-
Page 10: Basics
System Operation Manual - E3 Path+, Venture, Detour Basics IMPORTANT: The owner’s manual included with your bike contains most of the important safety and usage information about this bike, which is not included in this system operation manual. Be sure to read the owner’s manual before you begin riding or working on your bike. Charge time Battery charging The amount of time needed to charge the... -
Page 11: Using The Battery

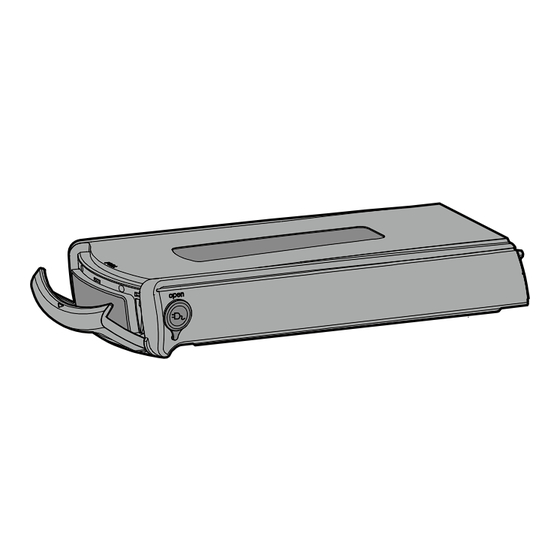

System Operation Manual - E3 Path+, Venture, Detour Using the battery Installing the battery First, make sure the battery is unlocked. If needed, unlock the battery by turning the key 45° counter-clockwise until it stops. Then, slide the battery into the rack from the rear; the end of the battery will be flush with the battery receiver when fully inserted. -
Page 12: Riding And Use
System Operation Manual - E3 Path+, Venture, Detour Riding and use Be sure to read the “Electric Bikes” section of your owner’s manual, and specifically pay attention to the sections on “Riding an electric bike” and “Riding a high-speed electric bicycle”... -
Page 13: Cruise Control
System Operation Manual - E3 Path+, Venture, Detour Cruise control The display and control While in “T”/throttle-only mode, cruise control can be turned on with the button: First, pedal or use the throttle to reach The display serves both as a cyclecomputer, your desired cruising speed. -
Page 14: The Display's Electrical System Functions
System Operation Manual - E3 Path+, Venture, Detour The display’s electrical system functions The display shows information about the bike’s electric assist, and gives the rider access to several important functions: Assist level The current assist level is shown on the display (assist level indicator). Battery level The battery level indicator shows the current charge level of the battery. -
Page 15: Troubleshooting
System Operation Manual - E3 Path+, Venture, Detour Troubleshooting Error codes SYSTEM ERROR CODES In the event of a system error, these codes will appear on the display. Motor internal error Cadence sensor error Motor speed sensor malfunction Brake lever cut-off sensor malfunction Throttle malfunction Most of the time, these errors can be resolved easily by checking the wiring connections for the affected component. -
Page 16: Misc Issues
System Operation Manual - E3 Path+, Venture, Detour Stop using the battery and charger immediately. Check for obvious external shorts on the charging plug and battery charging port. If no Solution obvious short exists, the battery or charger may be damaged. Bring them to your dealer for inspection.
