1
/16

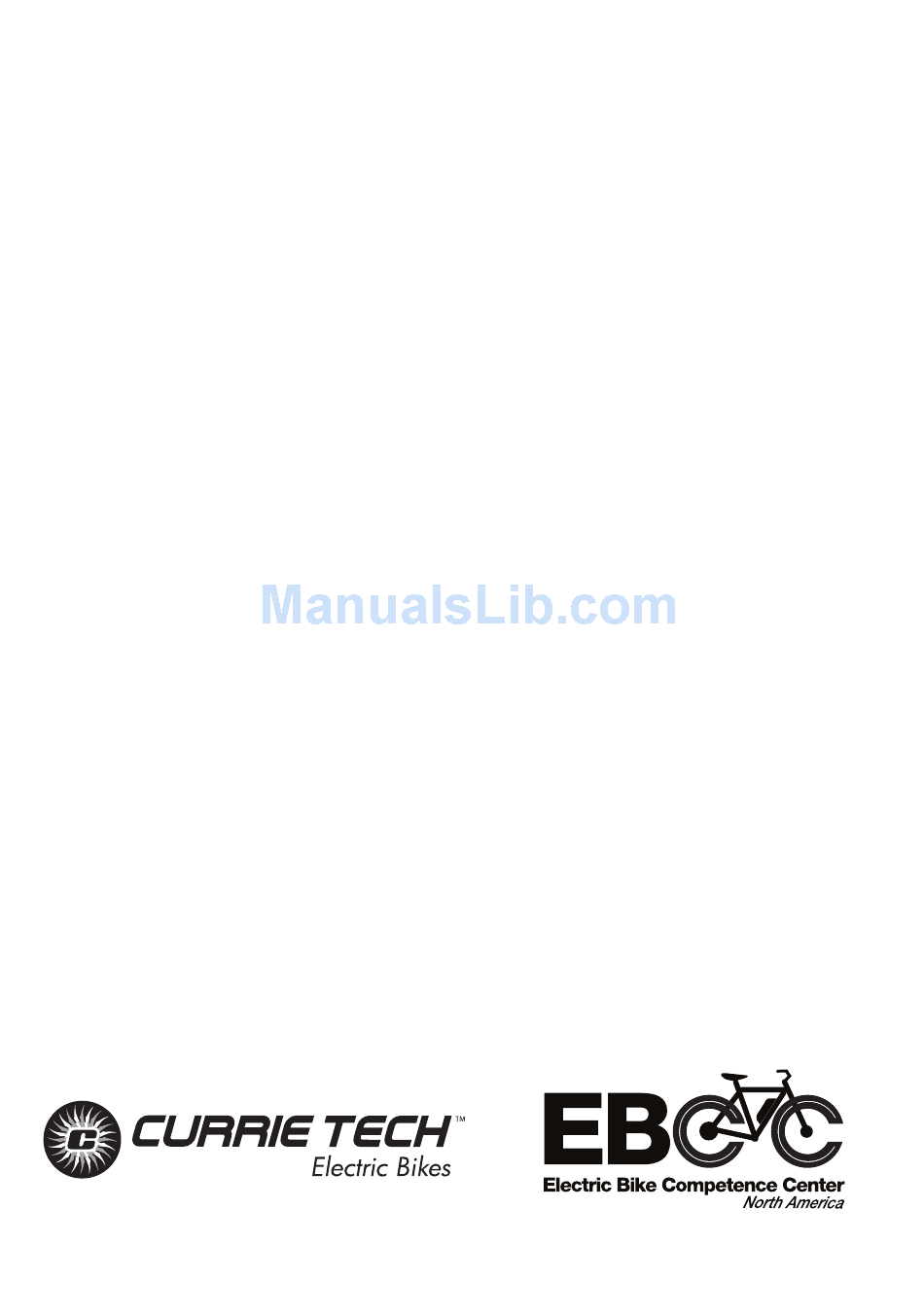

System Operation Manual
Peak, Peak DS, Sumo, Tekoa
This manual is meant to be read together with the owner's manual, also included with
your bicycle. The owner's manual contains important safety and use information about your
bicycle. Be sure to read both manuals before riding for the first time, or performing any
assembly. If you did not receive an owner's manual, the most recent version can always
be found online at www.CurrieTech.com.
EBCC Technical and Customer Service: +1 800-377-4532
10/29/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Peak and is the answer not in the manual?

Questions and answers

Related Manuals for Currie tech Peak

Summary of Contents for Currie tech Peak

  • Page 1 System Operation Manual Peak, Peak DS, Sumo, Tekoa This manual is meant to be read together with the owner’s manual, also included with your bicycle. The owner’s manual contains important safety and use information about your bicycle. Be sure to read both manuals before riding for the first time, or performing any assembly.

  • Page 2: Table Of Contents

    System Operation Manual - Peak, Peak DS, Sumo, Tekoa Co n te n t s Section 1 Electrical System Components ....4 Section 2 General information .
  • Page 3 System Operation Manual - Peak, Peak DS, Sumo, Tekoa No t ic e! INSTALL BATTERY FUSE! Fuse cover Your bike ships without the battery fuse installed. This helps keep the battery in top condition during shipping and storage. Before using your bike for the first time, you’ll need to install the fuse, as shown in the diagram above.

  • Page 4: Electrical System Components

    System Operation Manual - Peak, Peak DS, Sumo, Tekoa Electrical System Components Overview Battery, detail Upper battery holder Drive unit Battery lock Battery BATTERY BUTTONS charging port Battery power button Lower Battery level indicator battery holder Control pad CONTROL PAD BUTTONS...
  • Page 5 System Operation Manual - Peak, Peak DS, Sumo, Tekoa Display DISPLAY FUNCTIONS Ambient light sensor Main display area Speed Odometer Distance Range Maintenance indicator Distance unit Assist level indicator Low battery warning indicator Battery level indicator Throttle 10/29/14...

  • Page 6: Battery Charger

    System Operation Manual - Peak, Peak DS, Sumo, Tekoa Battery charger LED indicator Charging plug Wall plug Power cord Charging cord Power socket Power plug Wheel speed sensor Speed sensor ~5mm Spoke magnet 10/29/14...
  • Page 7 System Operation Manual - Peak, Peak DS, Sumo, Tekoa 10/29/14...

  • Page 8: General Information

    System Operation Manual - Peak, Peak DS, Sumo, Tekoa General information USE RESTRICTIONS Intended Condition 3 (Cross-country, Marathon, Hardtails) Minimum 16 years rider age Maximum 110 Kg (242 lbs) permissible weight 1. This bicycle is intended to be used under the guidelines of the stated condition, found in the intended use section of your owner’s manual.
  • Page 9 System Operation Manual - Peak, Peak DS, Sumo, Tekoa TECHNICAL SPECIFICATIONS Motor Type Center drive Rated power 350W Peak torque 73 Nm Battery Voltage 48V nominal Capacity 8.7Ah Energy 417Wh Cycle life ~700 (expected) Charger Input voltage 110-240V AC (auto-sensing)

  • Page 10: Basics

    /16 System Operation Manual - Peak, Peak DS, Sumo, Tekoa Basics IMPORTANT: The owner’s manual included with your bike contains most of the important safety and usage information about this bike, which is not included in this system operation manual. Be sure to read the owner’s manual before you begin riding or working on your bike.

  • Page 11: Using The Battery

    System Operation Manual - Peak, Peak DS, Sumo, Tekoa that it engages the holder and locks into place. The key does not need to be used when installing the battery. Removing the battery To remove the battery, unlock the battery lock with the key, pull the battery out of the upper battery holder, then lift it out of the lower battery holder.

  • Page 12: Riding And Use

    /16 System Operation Manual - Peak, Peak DS, Sumo, Tekoa Riding and use Be sure to read the “Electric Bikes” section of your owner’s manual, and specifically pay attention to the sections on “Riding an electric bike”, “Riding a high-speed electric bicycle”, and “Riding a center-drive bike”...

  • Page 13: The Display And Control Pad

    System Operation Manual - Peak, Peak DS, Sumo, Tekoa The display’s electrical system The display and control functions The display shows information about the bike’s electric assist, and gives the rider The display serves both as a cyclecomputer, access to several important functions: displaying speed and distance information, and as an interface to the bike’s electrical...

  • Page 14: Control Pad Functions

    /16 System Operation Manual - Peak, Peak DS, Sumo, Tekoa Control pad functions The control pad is used to control the various functions of the bike and display. The control pad’s four buttons perform the following functions: CONTROL PAD FUNCTIONS Increase assist level (1–4)

  • Page 15: Charging Issues

    System Operation Manual - Peak, Peak DS, Sumo, Tekoa SYSTEM ERROR CODES Solution: Ask your dealer to check the function of your throttle. The throttle connection may be loose, or the throttle itself may need service. Charging issues ISSUE: Charger LED indicator flashes red LED flashes red after charging for a while:  Battery is not responding to charging.

  • Page 16: Misc Issues

    /16 System Operation Manual - Peak, Peak DS, Sumo, Tekoa ISSUE: Charger LED indicator stays green when plugged into the battery.  There is no connection between the charger and the battery.  Check for damage: battery charging port, charging plug, charging cord, and power cord.
