RID

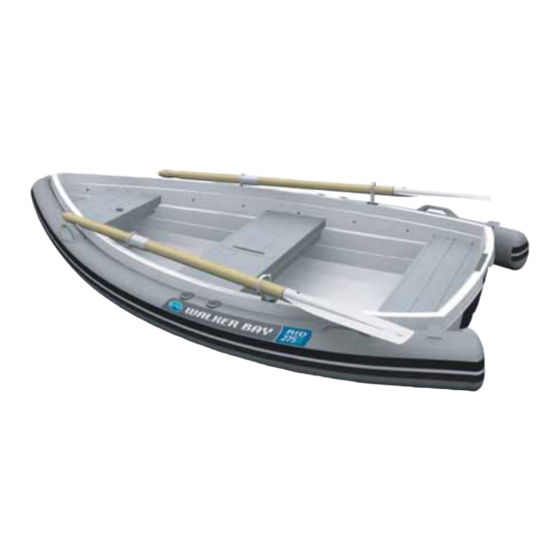

:275R, 275H Assembly Instructions
™
Toll Free Phone (U.S.A & Canada) 1-888-44WALKER (449-2553) or 604-682-5699 Fax (U.S.A & Canada) 1-888-228-7222 or 604-683-1877
Walker Bay Boats Inc. 717 Butterfield Rd, Yakima, WA 98901, USA
web: www.walkerbay.com email: info@walkerbay.com
RID Kit Part #91701 Instruction Book Part #14031 Rev #SR.01.16.06
PARTS LIST
(Specifications and contents subject to change without notice)
Description
A. RID Track .........................................................
B. Connection Plate..............................................
C. Bolts (10-32 x 3/4") ..........................................
D. Bolts* (10-32 x 5/8") .........................................
E. Rubberback Washers* (#12 )...........................
F.
Nylock Nuts* (10-32) .......................................
G. RID Tube
275R: ......................................................................
275H: ......................................................................
H. Davit Lifting Eyebolts (with washer & nut) .......
I.
Pump ...............................................................
J.
Repair Kit (with valve wrench) .........................
K. Capacity Plate ..................................................
*Extra bolt, washer & nut included for convenience.
®
Part #
#17326
#11110
#11122
#11043
#11076
#11067
#17340
#17353
#21021
#91601
#975000
#10053
Advertisement
Related Manuals for Walker Bay 275R
Summary of Contents for Walker Bay 275R
-
Page 1: Parts List
#10053 *Extra bolt, washer & nut included for convenience. Walker Bay Boats Inc. 717 Butterfield Rd, Yakima, WA 98901, USA Toll Free Phone (U.S.A & Canada) 1-888-44WALKER (449-2553) or 604-682-5699 Fax (U.S.A & Canada) 1-888-228-7222 or 604-683-1877 web: www.walkerbay.com email: info@walkerbay.com... - Page 2 RETROFIT RID TRACK ASSEMBLY INSTRUCTIONS FOR NON RID READY BOATS Tools you will need: Drill with bit #11 Screwdriver Cut out template on corner of page. Using a drill gun & bit #11, drill first Remove paper template. Align port (left) template with outside of hole.
- Page 3 RID TRACK ASSEMBLY INSTRUCTIONS FOR RID READY BOATS Once RID plugs are dislodged, carefully pry plugs out with claw of hammer On assembled boat, locate RID plugs along each side of the hull. Gently tap RID plugs out with a hammer.
- Page 4 TUBE INSTALLATION INSTRUCTIONS NOTE: If alone, try sliding tube on with boat upside down. Before you begin the installation process, make sure your boat hull is completely stabilized. The boat should not be able to move freely in any direction. Partially inflate tube (1/4 full) and apply liquid soap and water to track runner on tube to help feed tube into track with greater ease.
- Page 5 Using wrench provided in repair kit, hand tighten each valve. DO NOT OVERTIGHTEN VALVE. Inflate chambers in sequence shown until wrinkles disappear. Peel backing from capacity plate and apply new plate on inside of the stern, over top of existing plate. WARNING TUBE PROVIDES FLOTATION AND STABILITY.
-
Page 6: Maintenance
For longterm or winter storage you may remove the tube. Apply 303 Aerospace Protectant at least once per season to protect tube from UV (ultra violet) rays. Walker Bay® recommends 303 because it is free If you store the boat with the tube attached you must release some air... - Page 7 For large tears or repairs to seams or bulkheads it is recommended that tube and the patch. Wait 5 minutes between each coat. the tube be returned to Walker Bay® or your dealer for repair by a trained professional. Contact Walker Bay® customer service for return 5.
- Page 8 RID RETROFIT TEMPLATE STARBOARD (RIGHT) SIDE RID RETROFIT TEMPLATE PORT (LEFT) SIDE...
