Hardware Installation

This section deals with installing Image4 cards and spreading the Windows desktop across all the screens. If
you are intending to use the Image4 cards with other Datapath products, you should follow this section to
gettheWindowsdesktopworkingcorrectlyfirst.

System Requirements

• APentiumPCIebuscomputerwithsufficientfreePCIeslots.
• A least 1GByte of RAM.
• Windows® Vista, XP, Server 2008, Windows® 7 (Server 2008 or Windows® 7 64-bit required for greater
than 8 screen support).

Unpacking

Yourpackingboxshouldcontainthefollowingitems:
• The Image4 PCIe plug-in card.
• Two VGA-Y-cables or two DVI-Y-cables depending on model purchased
• A Genlock cable.
• Installation CD-ROM
Cables are provided depending on which card you have purchased for
example:
• Image4
• Image4-DVI
VGA-Y-Cable
DVI-Y-Cable

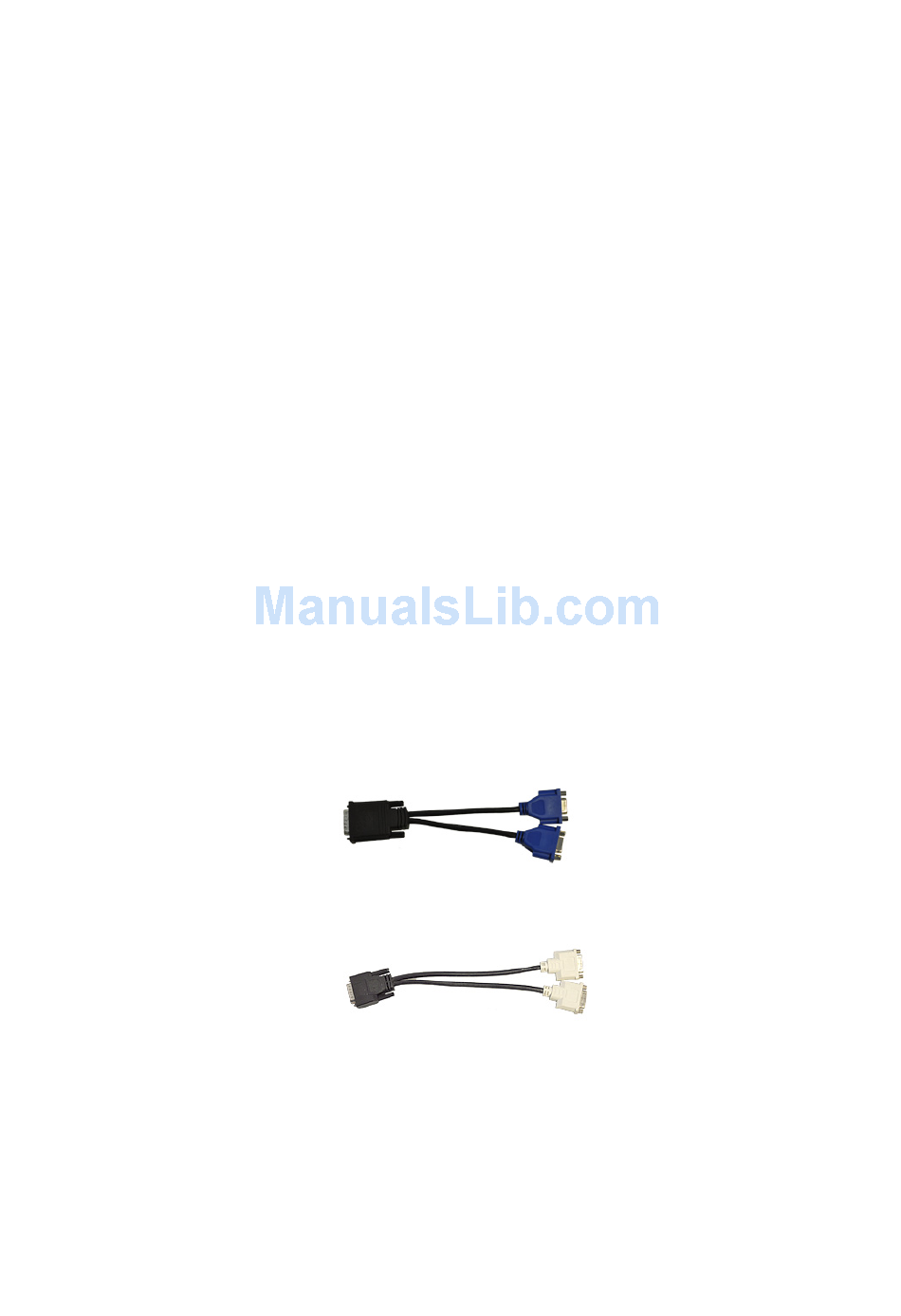

Image4 supplied with two VGA-Y splitter cables.
Image4 supplied with two DVI-Y splitter cables.
