Connecting up to 40 Screens

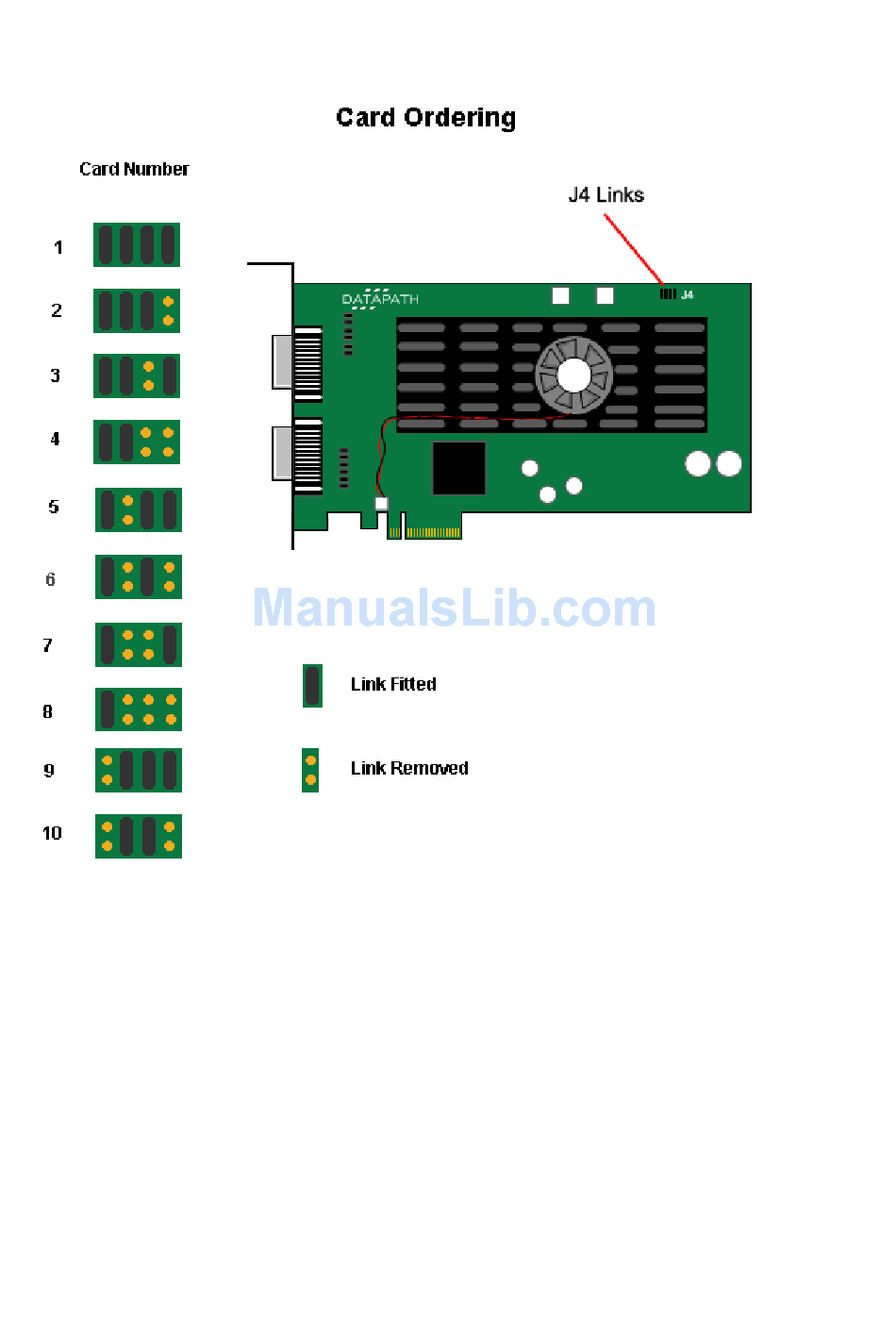

Toconnectupto40screenstoImage4cards,configurethelinksasshowninthediagrambelow:
The links control the order in which the display driver uses the Image4 cards. Knowing the order in which
the Image4 cards are used is useful when connecting the screens and the outputs from video switches.
Notethatifyouhavenotconfiguredyoursystemtoboot-uponon-boardVGAgraphicsdeviceor
another plug-in VGA card the system will boot-up on the master head of one of the Image4 cards but it is
not possible to control which output will be used, this is motherboard BIOS dependent.
Insert the Image4 cards into the PCIe slots.
Connect Genlockcablesasfollows:
