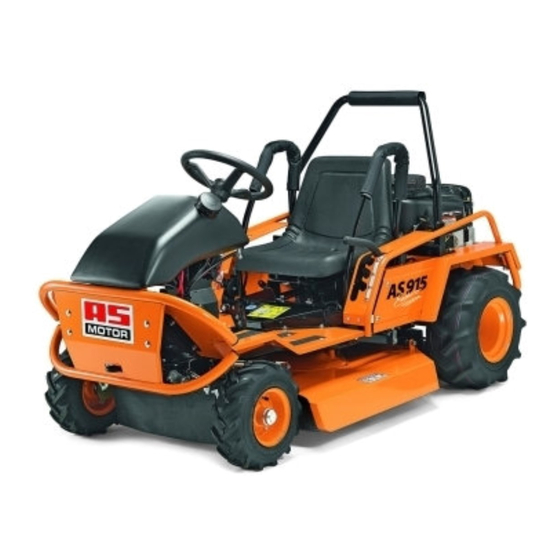

Operating Instructions

Ride-on Allmäher®
AS 915 ENDURO
From serial number:
Issued:
01821110001
21 December 2011,V16.0
EN-Translation of the Original Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS 915 ENDURO and is the answer not in the manual?

Questions and answers

Related Manuals for AS MOTOR AS 915 ENDURO

Summary of Contents for AS MOTOR AS 915 ENDURO

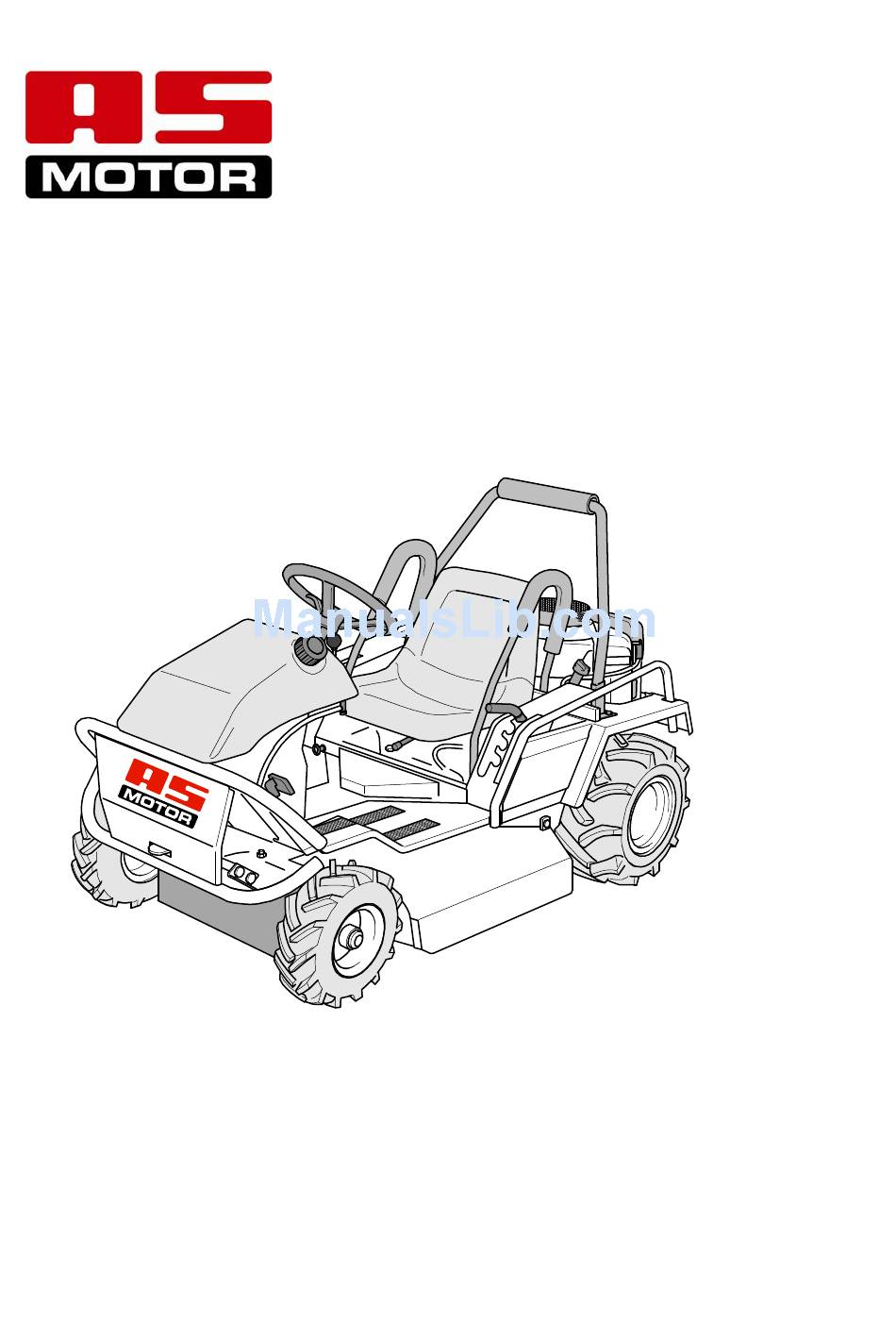

  • Page 1: Operating Instructions

    Operating Instructions Ride-on Allmäher® AS 915 ENDURO From serial number: 01821110001 Issued: 21 December 2011,V16.0 EN-Translation of the Original Operating Instructions...

  • Page 2: Preface

    Preface Intended use Please fill in all data referring to your device. The device is intended for cutting and When ordering spare parts, provide your mulching grass or similar vegetation in dealer with the device and engine number. agriculture, forestry, and landscape conservation.

  • Page 3: Table Of Contents

      Starting ............16 Contents   Safety switches ........16   Starting the engine ........16   Preface ............2   Engaging the blade ......... 17   Intended use ..........2   Oil pressure switch ........17   Explanation of the symbols......4  ...

  • Page 4: Explanation Of The Symbols

    Risk of injury caused by rotating Explanation of the symbols components! Symbols in the instructions In these operating instructions, the following Danger of bursting while tires symbols are used to denote special dangers. are inflated. Observe the admissible tire pressure (see Warning.
  • Page 5 Warning! Risk of injury caused by rotating blades or parts. Objects can be ejected. Make sure that no Lubrication chart one is within the danger zone of the blade (at Position of grease nipples for grease least 50 metres). lubrication. Observe the maintenance instructions.

  • Page 6: Safety Instructions

    Safe handling of fuel Safety instructions Danger! Get informed! Fuel is toxic and highly inflammable. For your safety, read these operating Danger of fire and explosion! instructions with care. Familiarize yourself Keep the fuel away from ignition with the control elements and the proper use sources and do not smoke while of the device.

  • Page 7: Check The Device Prior To Use

    Switch off the blade and wait until the blade Measures in case of a fire comes to a standstill, In case of a fire, use foam, dry powder extinguisher, or carbon dioxide (CO ). Never  when you drive on surfaces other than douse with water! grass.
  • Page 8 When mowing slopes, Danger! Risk of injury caused by thrown out there is a risk of slipping objects. and tilting! max. 17° Never mow while persons,  children, pets, or property are in Do not mow excessively steep slopes. the vicinity. For safety reasons, use the device only on less than 17°slopes.

  • Page 9: Caution When Using Accessories

      abrupt braking. Do not take tight corners.   an inappropriate task for the device. Be extremely cautious when moving in reverse.  poor knowledge of the area.  slope angles that are too steep. When work is completed Risk of tilting After each mowing, close both fuel valves.

  • Page 10: Device Description

    Device description Front impact protection Tank cap Side supports Fuel valve 1 Fuel valve 2 Engine oil filler neck Ventilation grid Fuses circuit protection Side plates impact protection Engine Type plate Support tube...

  • Page 11: Control Elements

    Ignition lock (5) Control elements The ignition lock has three positions. Front area 1: Ignition off. The key can be removed. 2: Ignition on. Control lamp ( 4 ) illuminates. 3: Electro starter on. Brake Differential lock (1) With the left foot pedal, actuate the differential lock.

  • Page 12: Control Lever At The Seat

    Control lever at the seat Accelerator (4) Via the accelerator, you change the engine speed. Highest speed (full throttle): Press the accelerator all the way down. Lowest speed (idling speed): Pull the accelerator all the way Drive lever (5) The drive lever is required for driving forward and in reverse as well as to stop the mower.

  • Page 13: Drive/Idle Mode

    Drive/idle mode Transport To push the mower without engine drive, Transport the device on a freight vehicle or a unlock the drive below the driver seat and trailer which is designed for a carrying release the parking brake. Subsequently, the capacity of at least as great as the empty mower can only be braked via the foot brake.

  • Page 14: Assembly

     Screws, nuts and discs for assembly of Loading the steering wheel, support tube, and the Use suitable ramps for loading that side supports.  can carry the empty weight of the device  Operating instructions of the engine + 100 kg. manufacturer.

  • Page 15: Information On Mowing

    3. Bolt both side supports to the device. Information on mowing Prior to mowing, check your device for completeness, proper functioning, and cleanliness. A dirty ventilation grid can damage the engine and a dirty protective grid at the silencer poses a fire hazard. Frequent engagement and disengagement of the clutch increases wear of the blade drive belt and the blade brake.

  • Page 16: Prior To Starting

    Prior to starting Starting Danger! Checking the oil level During startup, there is a risk of Caution ! Before mowing, always check the injury caused by the rotating blade. engine oil level and the oil level in the Make sure that no one is within the hydrostat (see Maintenance).

  • Page 17: Engaging The Blade

    If the engine does not start after 5 seconds, Oil pressure switch release the key and wait for approx. 15 Danger! seconds before trying to start the device If the engine cuts out while the again. device is used, the device can roll away.

  • Page 18: Driving

    foot brake is pressed quickly and fully, the Switching off and parking drive lever swivels all the way to neutral position. 1. Move the drive lever slowly to neutral position. Use the actuation via foot pedal only in exceptional circumstances because the 2.
  • Page 19 Component Action Maintenance interval Before Annually and after or every each use 50 h Device Check for safe working condition. ■ ▲ Clean. ■ Customer service. ▲ Fuel Check fuel level. ■ Is the tank cap closed? ■ Tank, fuel valves, Check parts for leaks and proper condition.
  • Page 20 Component Action Maintenance interval Before Annually and after or every each use 50 h Label Condition of the labels. ■ ▲ Engine See operating instructions of the engine ■ ▲ manufacturer. Check oil level (see operating instructions of the ■ ▲...

  • Page 21: Preparations

    General inspection Preparations To ensure proper working order of the device, Prior to all maintenance and cleaning regularly check all nuts, bolts, screws, fuel work: line connections, air filters, etc. for firm 1. Let the device cool down for at least seating.

  • Page 22: Grease Lubrication

    Grease lubrication Twisted cutting blades On the lubrication chart, the position of the grease nipples are marked. 1. Clean the grease nipples. If the cutting blades ( 2 ) strike a foreign object, 2. Lubricate the grease nipples with a hand they can be twisted (overload protection).

  • Page 23: Maintaining The Engine

    It is absolutely necessary to change the Maintaining the engine cutter bar ( 1 ), the mulching blade ( 5 ), the Danger! cutting blades ( 2 ) and the fastening parts If the speed of rotation is set too ...

  • Page 24: Cleaning The Air Filter

    Tighten the spark plug using the correct required charging current and terminate the torque (see operating instructions of the charging process when the battery is full. engine manufacturer). Charge the battery before you put the device Always check both spark plugs. away for winter storage.

  • Page 25: Storage

    Restarting Storage If you want to start the device after a longer Storing the device storage, carry out the tasks described in chapter Maintenance. Keep the device in a closed, dry, and well ventilated room and out of reach of children. Always eliminate all problems of the device Spare parts before you store it so that the device is...

  • Page 26: Accessories

    Accessories Available accessories: Trailer: E09311 Trailer hitch: E09313 Snow blade: E09315 Snow chains: E09316 (set) Front lawn tires: E09318 (set) Rear lawn tires: E09319 (set) Spray paint 400 ml, colour orange: E04606 Adjustable seat unit: E09348 Clinometer E11835 Disposal The device cuts and shreds the plant material in a single operation.

  • Page 27: Troubleshooting

    You can find an authorised service centre on Troubleshooting our home page www.as-motor.de. The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. Problem Possible cause Remedy  Drive lever to neutral position. Safety switches are not Starter does not turn ...
  • Page 28 Problem Possible cause Remedy Spark plugs are sooted, Clean spark plugs and check damaged or incorrect electrode electrode gap (see also Maintenance gap. and cleaning) If necessary, replace the spark plugs. Housing of the mower is See also Maintenance and cleaning. jammed.
  • Page 29 Problem Possible cause Remedy Engine fastening is loose. Authorised service centre. Blade fastening is loose. Authorised service centre. Loose fastening elements. Authorised service centre. Irregular noises Silencer defective. Authorised service centre. Air filter is soiled or drenched Clean or replace the air filter (see Engine is smoking with oil.
  • Page 30 Problem Possible cause Remedy Engine speed too low despite Authorised service centre. full power. Brake is adjusted incorrectly, Authorised service centre. The device does not worn, or defective. stop when brake is actuated Switching off system is Close the fuel valve. The engine does not defective.

  • Page 31: Technical Data

    Technical data AS 915 Enduro Type 5 – 30 °C Range of application (temperature) Engine , type Two cylinder four stroke engine Manufacturer Briggs & Stratton Type Professional Series 7220 Cylinder capacity 656 cm Performance 13,3 kW (18 PS) Engine speed...
  • Page 32 AS 915 Enduro Type Capacities Fuel tank 15 litres (lead-free regular petrol) Engine oil ca. 1,9 Liter SAE 30 (see also Checking the oil level) Transmission oil 1.9 litres 80 W90 Oil in hydrostat 1 litre SAE 15W50 or 20W50...

  • Page 33: Declaration Of Conformity

    Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Declaration of conformity We declare that the lawnmower type AS 915 ENDURO with serial number starting from 01821110001 as brought into circulation by us conforms to all relevant - 2006/42/EG, L76, 16.03.2007 safety and health requirements of the EC directives listed.
  • Page 36 AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Professional technology for gardens and landscapes Allmäher® Manoeuvrable meadow mower for extensive green area care. The Allmäher reliably shreds high grass, scrub, and weeds also on steep slopes and in difficult terrain. The grass cuttings are left to fertilise the ground so there is no more raking grass.
