Summary of Contents for HDL MPL8.48
-
Page 1: User Manual
User Manual DLP Series MPL8.48 MPL8.46 www.hdlautomation.com... - Page 2 User Manual HDL-MPL8.48/MPL8.46 Document updates: Version Date Description V1.0 2015.01.20 Finish new document DLP – User Manual...
-
Page 3: Table Of Contents
1.2 Description Of Functions....................1 1.3 Device Description......................2 Technical Data.......................... 2 Installation..........................3 3.1 Attachment and mounting ....................3 3.2 HDL BUS Pro Description....................4 3.3 Commissioning........................4 Software Configuration......................5 4.1 Basic settings........................5 4.1.1 Changing the device ID..................5 4.1.2 Remark........................5 4.1.3 LED intensity......................6... -
Page 4: Overview

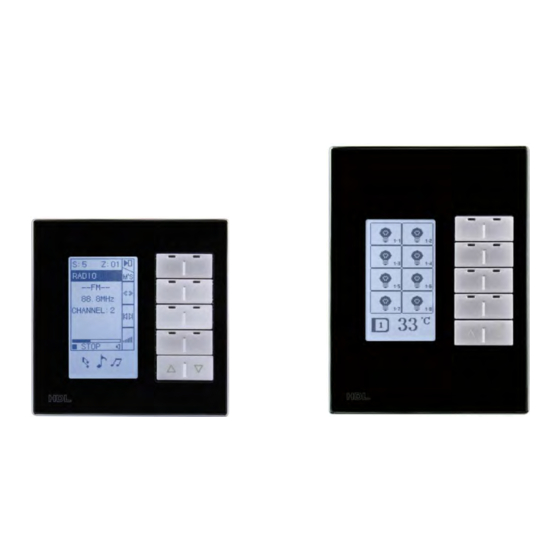

User Manual HDL-MPL8.48/MPL8.46 1. Overview 1.1 General Information 1.1.1 Description The multi-functional LCD panel is a new generation of wall mounted switch, with a total of 8 metal buttons each with a configurable LED. Both the plate and frame can be customized with different materials and colors to perfectly match your lifestyle. -
Page 5: Device Description
AC. Auto temperature setting, Fan Speed regulation, AC Mode setting, AC Temperature regulation, backlight adjustment, AC Lock, Backlight and status light setting, floor heating temperature and mode setting etc. Communication : HDL Buspro Support online upgrade. -
Page 6: Installation
3. Installation 3.1 Connecting Please follow the below installation method. EU wall BOX Panel （MPL8.48） Panel power interface （MPPI.48） Installation: Hold the panel vertically then slowly insert it into the power interface module. Press gently on the four corners of the module to ensure an optimum coupling. -
Page 7: Hdl Bus Pro Description
A new window will appear from the window, select “SYSTEM”. In the new window, you will find a number of addresses from 001—107. Open the HDL-BUS Pro Setup tool. e) Click the search button, it will show a new window, fill in panel’s ID, and click the “+ADD”... -
Page 8: Software Configuration
4.1 Basic setting 4.1.1 Change the ID of the device Every HDL-BUS device has one Subnet ID and one Device ID. The Device ID should be unique in its Subnet, and the Subnet ID should be kept consistent with the Gateway (typically the SB-DN-1IP or HDL-MBUS01IP.431). -
Page 9: Led Intensity
The DLP has 7 pages. The first 4 pages are generic control pages, page 5 is an AC page, page 6 is a music page and page 7 is a floor heating page. The interface setting for page 1 to 4 in HDL-BUS Pro Setup Tool is shown in the below screen shot. 4.2.1 Remark It is recommended that a description is given to each key, to aid future system changes. -
Page 10: Mode
User Manual HDL-MPL8.48/MPL8.46 4.2.2 Mode Key mode: Single on If this is assigned the Switch can turn on one target only (one channel, one scene, one sequence, etc.) Single off If this is assigned the Switch can turn off one target only (one channel, one scene, one sequence, etc.) -
Page 11: Functions
User Manual HDL-MPL8.48/MPL8.46 Short /long press Both short press and long press can control up to 49 targets Short /long Jog Both short press and long Jog (long press to turn on, release to turn off) can control up to 49 targets 4.2.3 Function... -
Page 12: Key Combinations
Enables a user to control a group of DALI ballasts, including dimming, via the SB-DN-DALI64 module. RGB control For HDL-MLED0605.432, 48DMX and 512DMX module (not ready to use) IR control For HDL Matrix device (not ready to use) 4.2.4 Key combinations When the keys are combined, only the functions of the top button will be active. -
Page 13: Uploading An Icon
User Manual HDL-MPL8.48/MPL8.46 4.2.5 Pic upload To change the icon for a key, double click on a key and then click on the Pic Upload tab. The inactive icons are represented by the left hand ‘normal’ column, the active icons are represented by the right hand ‘on’... -
Page 14: Button Merging
User Manual HDL-MPL8.48/MPL8.46 4.2.7 Double key merge As an example if keys 1 and 2 are merged, then both keys will act as a single key. The functions of the right key (key 2) are the same as the left key (key 1). -
Page 15: Ir And Other Functions
4.2.9 IR and other functions Infrared status Allows a user to enable or disable the reception Enable/disable the IR receiving function (accept HDL remote controller only) Show temp Enable/disable the DLP to display the temperature at the bottom of the LCD display. -
Page 16: Ac Function Page
Please refer to ‘UM_SB-DN-HVAC(MAC01.331).pdf’ Download it from: ftp://59.41.255.150/en(enlish)/HDL%20Buspro/HDL%20Buspro%20Products/SB-DN-HV AC%20%20%20MAC01.331/ 4.4 Floor heating page Please refer to ‘UM_HDL-MFH06.432(Floor Heating Controller).pdf’. Download it from: ftp://59.41.255.150/HDL-BUS/HDL-BUS%20Products/HDL-MFH06.432 4.5 Music page Please refer to ‘UM_SB-Z-AUDIO(Digital Background Music Player)’, Download it from: ftp://59.41.255.150/en(enlish)/HDL%20Buspro/HDL%20Buspro%20Products/SB-Z-Audio DLP – User Manual... -
Page 17: Basic Setting
User Manual HDL-MPL8.48/MPL8.46 4.6 Basic setting 4.6.1 Page displays Page display: the pages selected will be displayed on the panel. 4.6.2 Backlit display and other settings Backlight display: -- Always show：the backlight will be on always Designate specific time ： the backlight will dim down after no operation in the designated time DLP –... -
Page 18: Dlp Setting Page
“sleep mode”, it will lighten the backlight and send out the command at the first time. Note: the HDL-BUS Pro software version should be V10.18.03.08 or above. Panel pages jump when on operation: --Never jump: never jump after no operation in the designated time. -
Page 19: Faq
6. FAQ 6.1 Panel FAQ001_HDL BUSpro We can use DLP to arm and disarm HDL's security system (SB-DN-SEC250K), but how can I prevent intruders to disarm my security system? You can set password to protect your security operation page on DLP (long press the first... - Page 20 6.4 Panel FAQ004_HDL BUSpro The HDL-MPL8.48 has four physical keys (well, 8, actually, left and right) and two physical page-turning keys. I am trying to setup function like this: left key for dimming down, right key for dimming down, is it possible?
- Page 21 User Manual HDL-MPL8.48/MPL8.46 6.5 Panel FAQ005_HDL BUSpro Whenever I long press a button and try to dim up, I always want to dim to at least 50%, so any level lower than 50% is not practical at all for me, can I bypass the lower segment and dim upward from 50%, this saves me just a little pressing time, but still, is it possible? Yes, there is minimum dimming setting in the Panel, please check the screen shot below.
-
Page 22: Notes
User Manual HDL-MPL8.48/MPL8.46 7. NOTES DLP – User Manual...
