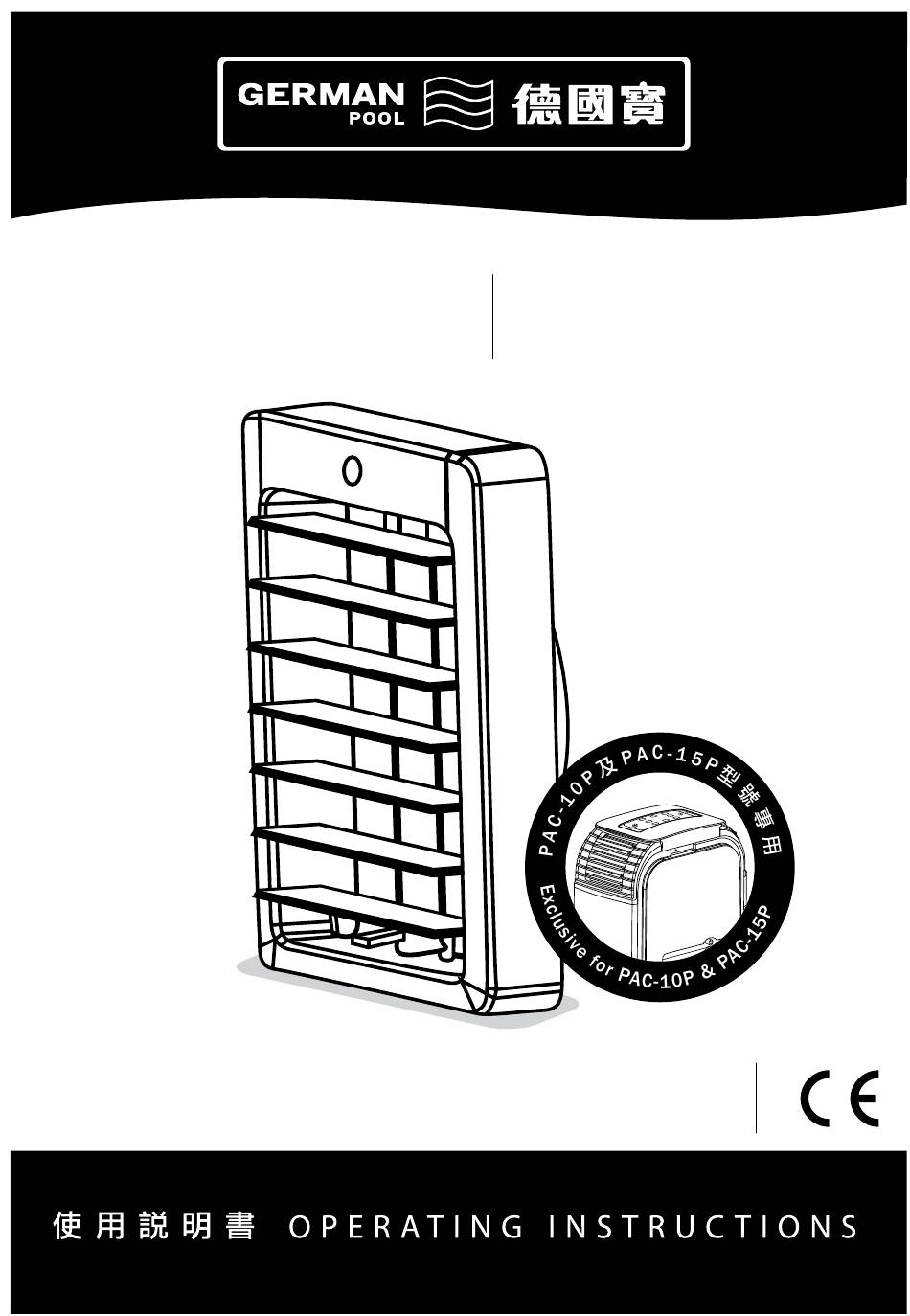

- Page 1 PAC-KIT 移動座地式冷暖空調窗隔裝置 Portable Reverse Cycle Air Conditioner Window Kit 在 使 用 之 前 請 詳 細 閱 讀 「 使 用 說 明 書 」及「 保 用 條 例 」 ， 並 妥 為 保 存 。 Please read these instructions and warranty information carefully...
- Page 2 目錄 Table of Contents 注意事項 Notice Before Use 產品特色 Product Structure 產品結構 Product Structure 安裝說明 Installation Instructions 操作說明 Operating Instructions 技術規格 Technical Specifications...
- Page 3 4. 為免發生危險，若發現電源線有任何損壞， 4. If the power supply cord is damaged, do not 必須停止使用產品，並立即聯絡本公司或合 operate the appliance. Contact German Pool or 資格技術人員進行更換。 licensed technician for a replacement immediately. 5. 清潔、維修或拆除本產品前應先切斷電源。 5. Disconnect the power supply before cleaning, repairing or dismantling the unit.
- Page 4 產品結構 Product Structure 1. Indoor Window Plate 1. 室內窗隔 (with remote control receiver) (表面有遙控接收器) 2. Cable 2. 電線 (length:1.5m, for connecting to the air conditioner) (長1.5米，用以連接到空調) 3. Outdoor Window Plate 3. 室外窗隔 4. Pipe Connector 4. 接合器 (connect the exhaust pipe to the outdoor window plate) (接合排氣管與室外窗隔) 5.
- Page 5 安裝說明 Installation Instructions 1. Decide upon a suitable place for the hole in 1. 選擇一個適合的窗口開孔。 the window. 2. Be aware that the air conditioner must be 2. 窗口必須輕微高於移動空調，避免排氣管過 located near the hole and that the exhaust 度屈曲，機身與窗口的距離亦須取決於遙控 pipe ideally goes slightly upwards between 電線的長度(1.5米)。...
- Page 6 安裝說明 Installation Instructions 7. Connect one end of the exhaust pipe to the 7. 將排氣管連接到所需要的機身出風口(如需 air outlet on the air conditioner that blows out 冷氣便將管接到冷氣出風口，如需暖氣便將 cool air (if you wish to use the cooling function) 管接到暖氣出風口) 。透過接合器將排氣管 or to the air outlet that blows out hot air (if you 另一端接連到室外窗隔上(看圖2)。...
- Page 7 POWER 中風速 Low Speed 低風速 技術規格 Technical Specifications 型號 Model PAC-KIT 窗隔尺寸 Window Plate Dimensions (H) 240 (W) 205 (D) 58 mm 排氣管長度 Length of Exhaust Pipe 1.5 m 電線長度 Length of Cable 1.5 m 遙控器電池 Batteries for Remote Control AAA 乾電池(Batteries) x 2...
- Page 8 電話 Tel: +86 757 2980 8308 傳真 Fax: +86 757 2980 8318 © 版權所有。未獲德國寶授權，不得翻印、複製或使用本說明書作任何商業用途，違者必究。 © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. ACP-PACKIT-M-12(1)
