Summary of Contents for AOR ARL2300
-

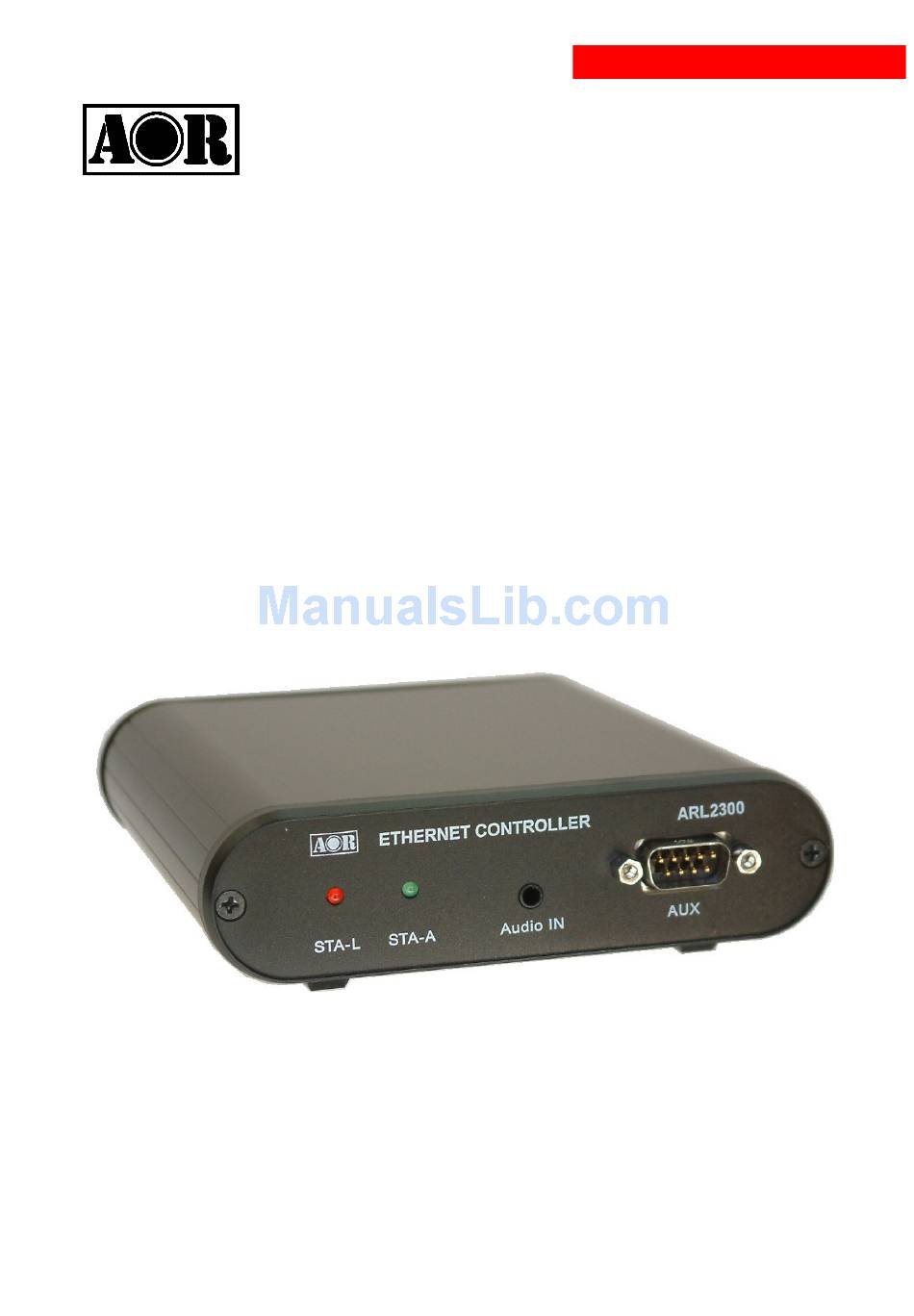

Page 1: User Manual
American Communication Systems Discover the Power of Communications ™ http://www.ameradio.com TO ORDER – VISIT ® ETHERNET CONTROLLER ARL2300 User Manual AOR Ltd. Authority On Radio Communications... -
Page 3: Introduction
Very importantly, you must be able to set-up port forwarding on your own router! Make sure you have access to your router manual before going ahead in setting up ARL2300. As there are hundreds of different router models on the market, with almost as many different ways to configure them, AOR is unable to assist you in troubleshooting port forwarding and network security issues. -
Page 4: Table Of Contents
Typical client / server network ......................6 Connection to AR2300/AR5001D receiver ..................7 Front panel power state ......................... 9 ARL2300 settings ........................10 ARL2300 client software ......................18 How to use the client software ....................18 Control screen ........................189 Terminal command window ....................20 Communication procedure ...................... -
Page 5: Included In This Package
Client software & manual pdf. What you need to prepare: -One straight LAN cable for connection between ARL2300 and your router.(Not supplied) -One available LAN port on your router Note： When used with the AR2300/AR5001D receivers, ARL2300 is receiving power directly from the receiver through the control cable. -
Page 6: Externals
Externals ARL2300 front view ARL2300 on top of AR2300 receiver... - Page 7 Front panel STA-L Red LED, log-in state STA-A Green LED, operation state Audio IN Audio input 3.5φstereo jack Serial port for future applications Back panel LAN port Receiver Serial connection to receiver DC5V IN DC 5V External power input. (Not needed if connected to AR2300/AR5001D receivers)
-
Page 8: Typical Client / Server Network
When you connect to your ARL2300 over the network from the client side software, you must first input the IP address of ARL2300 (or external IP address of your NAT router when using NAT) as a target. You can also input a hostname which shows the IP address... -
Page 9: Connection To Ar2300/Ar5001D Receiver
Connection to AR2300/AR5001D receiver ■Receiver serial communication settings If you have changed the receiver’s serial communication settings from the default values, make sure to revert to following: Communication speed 115200bps Interface USB priority, or AUX priority, or AUX only Flow control none ■Setting the receiver’s DIP switches After switching the receiver OFF, use a “minus”... -
Page 10: Cable Connection
Warning: Connecting / disconnecting the control cable while the receiver is ON will cause a receiver malfunction! Backside of ARL2300 & AR2300 with all cables connected Remarks: On the receiver side, the audio cable can alternatively be connected to the back panel’s LINE output as well as the front panel’s PHONES output. -
Page 11: Front Panel Power State
STA-L led will go off and the green STA-A will be lit. The time necessary to enter the stand-by mode might vary depending on the network environment. ■ARL2300 LED status indicator STA-L（red LED） STA-A（green LED）... -
Page 12: Arl2300 Settings
Although the ARL2300 settings page can be accessed at any time, network configuration changes can only be done when ARL2300 is in stand-by mode (only the green LED is on) To open the settings page of ARL2300, type the following address in the browser bar: http://arlan-0.local:48753/... - Page 13 By default, “Obtain an IP address automatically” is selected, nevertheless you can choose to manually enter address parameters to match a particular network environment. ・IP Address(required) IP address you wish to allocate to ARL2300 ・Netmask(required) Netmask for ARL2300 according to the specific network environment...
-
Page 14: Port Settings
・Gateway Gateway for ARL2300 according to the specific network environment. Leaving it empty is as if you entered the values 0.0.0.0 ・NameServer NameServer for ARL2300 according to the specific network environment. (Required for firmware update) ■Port settings You need to open the following ports on your (NAT) router and to forward these ports to the ARL2300. - Page 15 Quit the settings page without saving any changes you might have made. Save Settings are saved. At this stage, the changes have not been implemented by ARL2300 yet, as it needs to be rebooted. The next chapter explains this procedure.
- Page 16 ARL2300 configuration will be displayed and you will be given the following choices: Reboot ARL2300 will be rebooted and the changes implemented. Quit without Reboot Logout from the ARL2300 settings without rebooting ARL2300. The settings changes you have previously saved are not implemented yet by ARL2300.
-
Page 17: Firmware Update
(*) While you access the settings page, the “current connection status” is not automatically refreshed. In other words, you would not know if a client accesses ARL2300 while you are on the settings page, unless you click the “Update information” button. - Page 18 Possibility #2: There is a newer firmware version available, in which case the following page appears: Once you are aware of the risks involved and if you wish to go ahead with the update, click on The screen will inform you on the update progress as follows: Downloading the kernel…...
- Page 19 Downloading userland image… Installing userland image… End of firmware upgrade, (ARL2300 is automatically rebooting. Disregard any message saying that the Internet connection was interrupted.)
-
Page 20: Arl2300 Client Software
The IP address, when using dynamic DNS on ARL2300, has not been updates If you can connect to ARL2300 but hear no sound, then most probably the UDP port number is incorrect. ◆ Login incorrect The user name and/or password you entered are incorrect. -
Page 21: Control Screen
Control screen (see separate A4 size print) -
Page 22: Terminal Command Window
This being a “client software” interface, the software will interpret the responses in its interface. Note： As an alternative to the AOR software, you can use a Telnet software to test commands and their responses Example of Telnet command testing... -
Page 23: Communication Procedure
The command should be terminated by <CR> or <CR><LF>. All responses from receiver are terminating by <CR><LF>. Three digits of result code are added to each message from the ARL2300. If the blank character (blank code) has been added immediately after the result code, the ARL2300 send a simple... -
Page 24: Special Command Prefixes
The special CPF (Special Command Prefix) is a header character that controls ARL2300. If data is sent to the ARL2300 without special CPF, the data is applied to the receiver directly. No data is passed on to the receiver if ARL2300 received the command with special CPF, and the data is used to control the unit. -
Page 25: Firmware Version
Example: t0: No time stamp is added. t1: Time stamp is added. 8.2.2 Firmware version The number followed by the result code 235 is a version number of the ARL2300. The number only represents major change in the firmware. UDP audio transmission port To receive UDP data (audio data) from remote ARL2300, the client PC needs to send the “p”... - Page 26 Furthermore, UDP requires audio transmission start command immediately after the “p” command. The UDP command is @p1. This command should be sent to the ARL2300 every 10 to 120 seconds until audio transmission is stopped. To temporarily stop the UDP data transmission from the ARL2300, the q1 command should be issued.
-
Page 27: Serial Port Communication Specifications
Serial port communication specifications 1. Receiver (back panel) Communication speed 115200bps (non-changeable) Data 8bit Stop bit Flow control none Pin layout 2. AUX (front panel) (for future applications) Communication speed 9600bps (non-changeable) Data 8bit Stop bit Flow control none Pin layout... -
Page 28: Factory Default Settings
UDP Port 48752 Used for voice transmission Conf Port（TCP） 48753 Used to access the configuration screen User arl2300x Login name to access ARL2300 Password Arl_2300Q Password to access ARL2300 Login name to access configuration. Cannot be Configuration User Admin changed. -
Page 29: Arl2300 Specifications
11 ARL2300 specifications Item number ARL2300 Function Ethernet controller for AR2300/AR5001D receivers RJ-45 type LAN socket 10BASE-T / 100BASE-TX10/100Mbps (auto-sense) D-sub 9pin type Receiver socket Connection to AR2300/AR5001D receiver 3.5mm stereo used as mono Audio IN socket Connection to AR2300/AR5001D audio output... - Page 30 ® AOR Ltd. 2-6-4 Misuji, Taito-ku, 111-0055 Tokyo, Japan Authority On Radio Communications www.aorja.com (v01 20110803)
