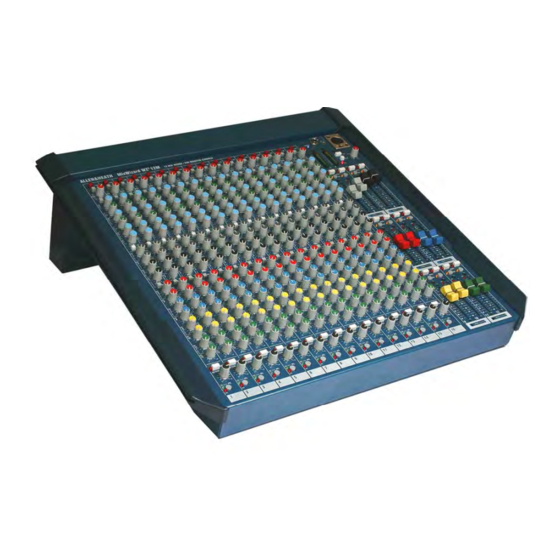

ALLEN & HEATH MixWizard WZ3 12M User Manual
16 input 12 mix monitor console
Hide thumbs
Also See for MixWizard WZ3 12M:
- User manual (34 pages) ,
- User manual (27 pages) ,
- Service information (78 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ALLEN & HEATH MixWizard WZ3 12M
Summary of Contents for ALLEN & HEATH MixWizard WZ3 12M
-

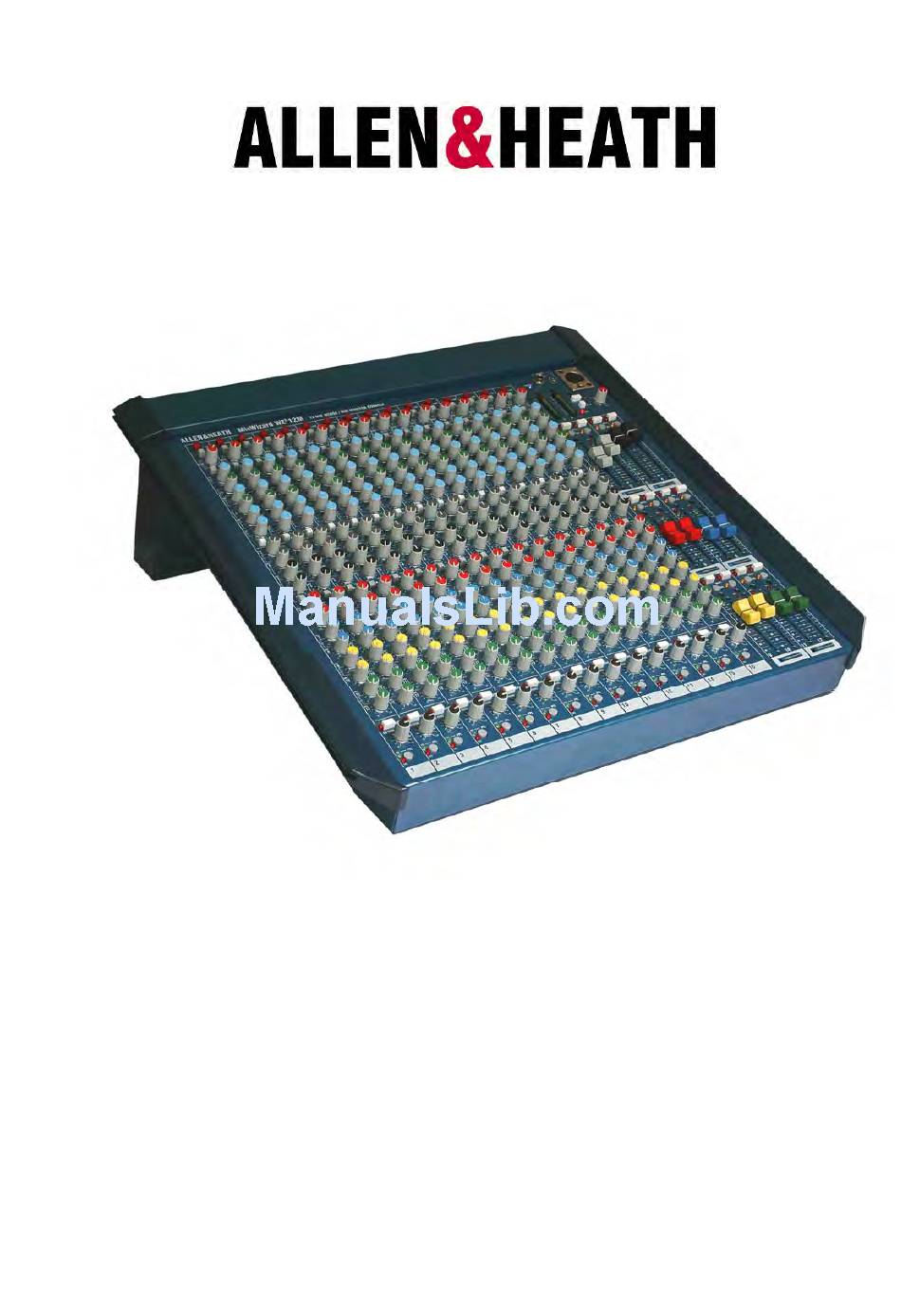

Page 1: User Guide
MixWizard WZ 16 Input 12 Mix Monitor Console USER GUIDE Publication AP6769... -
Page 2: Warranty
Limited One Year Warranty This product is warranted to be free from defects in materials or workmanship for a period of one year from the date of purchase by the original owner. To ensure a high level of performance and reliability for which this equipment has been designed and manufactured, read this User Guide before operating. -
Page 3: Important Safety Instructions
Important Safety Instructions WARNINGS Read the following before proceeding : CAUTION ATTENTION: RISQUE DE CHOC ELECTRIQUE – NE PAS OUVRIR Read instructions: Retain these safety and operating instructions for future reference. Adhere to all warnings printed here and on the console. Follow the operating instructions printed in this User Guide. -
Page 4: General Precautions
Important Mains plug wiring instructions. The console is supplied with a moulded mains plug fitted to the AC mains power lead. Follow the instructions below if the mains plug has to be replaced. The wires in the mains lead are coloured in accordance with the following code: TERMINAL WIRE COLOUR... -
Page 5: Table Of Contents
Introduction Welcome to the Allen & Heath WZ , the latest generation of the popular MixWizard series of compact audio mixing consoles. We have tried to keep this user guide brief and to the point. Please read it fully before starting. Included is information on installing, connecting and operating the console, panel drawings, system block diagram and technical specification. -
Page 6: Front Panel Layout
LAMP PHONES POWER +48V +48V +48V +48V (LINE) (LINE) (LINE) (LINE) GAIN GAIN GAIN GAIN - 10 - 10 - 10 - 10 MONO MONITOR EXT IN 500Hz 500Hz 500Hz 500Hz MUTE MUTE MUTE 35Hz 35Hz 35Hz 35Hz EQ IN EQ IN EQ IN EQ IN... -
Page 7: Introducing The Mixwizard
Introducing the MixWizard WZ The Allen & Heath MixWizard WZ 12M Is a dedicated monitor console. With 16 mic/line channels feeding 12 mixes in a compact 19” rack mount frame it is ideal for personal monitoring systems touring with a show or installed on stage where space is tight. Each of the 16 mic/line channels features a 4 band semi-parametric EQ, high pass filter, 12 mix sends globally switched in pairs for mono or stereo operation, individual phantom power, rotary channel trim control, mute and PFL monitoring. -
Page 8: Installing The Console
Installing the Console Free Standing The console is supplied ready for free standing operation with its side trims fitted and connector pod positioned for rear access. If you are converting from rack to free standing then make sure the pod is correctly rotated and secured, and the side trims fitted as shown: FIT SIDE TRIMS - 4x M4 POZI SCREWS PER SIDE CONSOLE WIDTH = 507mm RELEASE M4 POZI SCREW EACH SIDE... -
Page 9: Connecting Power
Connecting Power FUSE CAUTION T630mA L 250V 20mm AC MAINS IN ~ RISK OF ELECTRIC SHOCK 100 - 240V~ 47-63Hz 45W MAX EXTERNAL DC IN DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE REPLACE FUSE WITH SAME TYPE AND RATING. ATTENTION: REMPLACER LE FUSIBLE AVEC UN DES MEMES CARACTERISTIQUES. -
Page 10: Connection Pinouts And Cables
User Guide... -
Page 11: Audio Connections
Audio Connections The MixWizard uses professional grade 3 pin XLR and 1/4" TRS (3 pole) jack sockets. To ensure best performance, we recommend that you use high quality audio cables and connectors, and take time to check for reliable and accurate cable assembly. It is well known that most audio system problems are due to faulty or sub standard interconnecting leads. -
Page 12: Connector Panel Layouts
The Console Connectors ALLEN&HEATH MixWizard WZ GROUND LIFT INSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT SPLIT INSERT INSERT INSERT... -
Page 13: Console Connectors
CHANNEL INSERT A single 3-pole TRS jack carries the unbalanced INSERT SEND insert signal. Tip = send, Ring = return, Sleeve = common ground. The channel insert is post-HPF, pre-EQ and operates at 0dBu. Use these to RING patch in line level signal processing equipment such as compressors, RETURN gates or outboard EQ. -
Page 14: The Input Channels
The Input Channels +48V +48V Switches +48VDC to the channel input XLR for powering microphones or DI boxes that need phantom power. The power is (LINE) current limited through 6k8 ohm resistors to pins 2 and 3. GAIN - 10 WARNING: Do not connect unbalanced sources or cables to inputs with phantom power selected. - Page 15 MIX SENDS These rotary controls adjust how much channel signal +48V is sent to the 12 mix outputs. Each has its own control. They adjusts (LINE) from fully off to +6dB boost. Unity gain 0dB is marked at 3 o’clock position.
-
Page 16: The Mix Masters
The Mix Masters MUTE Turns off the mix output. Affects the meter but does not affect the mix AFL function. This means you can mute the output while checking the post-fade mix signal using the console headphones and engineer’s monitor output. Listen to the mix output in mono or stereo. -
Page 17: The Engineer's Monitor
The Engineer’s Monitor The console provides left and right engineer’s monitor outputs on XLR and TRS jacks. The monitor signal is also fed to a built-in headphone amplifier with ¼” and 3.5mm output jacks. An AFL (after fade listen) function is provided to monitor the mix output signal. This is interrupted by pressing a channel PFL (pre fade listen) switch. -
Page 18: Gain Structure
Gain Structure How the levels between the different signal stages are set up is referred to as the gain structure. For best performance it is important that the connected source signals are matched to the ‘normal operating level’ of the console. Similarly the levels of the connected amplifiers and destination equipment should be correctly matched to the console outputs. -
Page 19: Specifications
Specifications Performance Maximum output level +26dBu into 600 ohms max load Jack +21dBu into 2k ohm max load Internal headroom Channels +21dB +23dB Meters 3 colour LED, quasi peak response Sensitivity 0VU = +4dBu at XLR output Master meters 12 segment -30 to +16dB Channel meters 2 segment... - Page 20 Connections Mono channel XLR balanced pin 2 hot Sensitivity -60 to +10dBu Pad in Sensitivity -40 to +10dBu Pad out 2k ohm Pad in >10k ohm, -20dB Max input level +30dBu XLR phantom power +48V, on/off Ext Input TRS unbalanced >5k ohm, 0dBu Inserts Channel TRS, tip send, ring return, 0dBu...
-
Page 21: System Block Diagram
System Block Diagram WZ3 12M 12 MIX WEDGE / IEM MONITOR CONSOLE MONO/STEREO MODE PHANTOM POWER 4 BAND EQUALISER MIX 1-2 GAIN MIX 3-4 MUTE EQ IN TRIM -20dB 2= + MIX 5-6 LIFT MIX 7-8 POST-FADE SPLIT MIX 9-10 MIX 11-12 INSERT POST-EQ... -
Page 22: Cue Sheet
Cue Sheet 12M Monitor Console Copy and use this page to record your console settings. ALLEN&HEATH MixWizard WZ PHONES LAMP 12 MIX WEDGE / IEM MONITOR CONSOLE POWER +48V +48V +48V +48V +48V +48V +48V +48V +48V +48V +48V +48V +48V +48V +48V...
