Summary of Contents for ALLEN & HEATH Xone:42
-

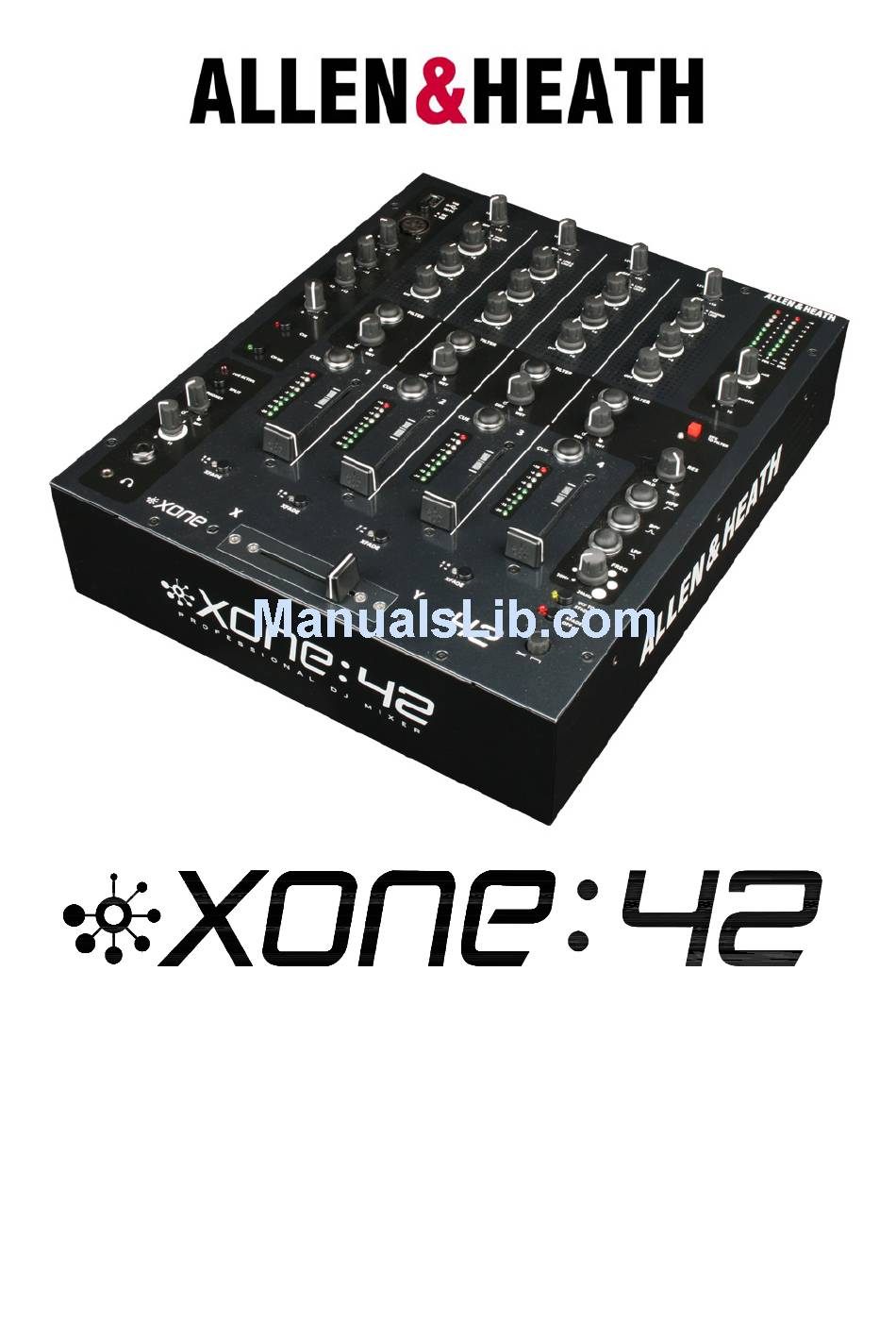

Page 1: User Guide
USER GUIDE Publication AP6857 Allen & Heath XONE:42 User Guide... -
Page 2: Warranty
EMC standards. Customers requiring more information about EMC and safety issues can contact Allen & Heath. XONE:42 User Guide AP6857 Issue 4 Copyright © 2007 Allen & Heath Limited. All rights reserved Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com http://www.xone.co.uk... -
Page 3: Packed Items
Spare knobs and buttons Registration Card Complete and return to Allen & Heath to register your product. Safety Sheet Important ! Read this sheet before starting. Retain for future reference. Allen & Heath XONE:42 User Guide... -
Page 4: Table Of Contents
CONTENTS Congratulations on purchasing the Allen & Heath Xone:42 performance DJ mixer. To ensure that you get the maximum benefit from the unit please spare a few minutes familiarizing yourself with the controls and setup procedures outlined in this user guide. For further information please refer to the additional information available on our web site, or contact our technical support team. -
Page 5: Panel Drawings
AC MAINS IN ~ X:FX SND X:FX RTN BOOTH RECORD T500mAL 250V 20mm FUSE SERIAL No: 100 - 240V~ LEFT RIGHT 47-63Hz ~ 30W MAX MADE IN THE UK BY ALLEN & HEATH LIMITED Front Panel Allen & Heath XONE:42 User Guide... -
Page 6: Introduction
The mixer incorporates a USB audio interface for easy connection to a computer and integration of digi- tal media. It can be used to play back music files from a laptop and to record mixes from the Xone:42, or when used with appropriate software, as a digital DJ effects unit that can be patched into the X:FX. The USB input combines with an XLR microphone input to provide an additional channel with two band +/- 12dB EQ and rotary level control. -
Page 7: Specifications
The console is fitted with rubber feet for desktop operation. Width Height Depth Weight Mixer 305 mm (12“) 84 mm (3.3“) 358 mm (14”) 5 kg (11 lbs) Packed 490 mm (19.5”) 205 mm (8.1”) 450 mm (17.7”) 7 kg (15.4 lbs) Allen & Heath XONE:42 User Guide... -
Page 8: Block Diagram
CUE ACTIVE ADD MIX LR SUM GAIN 2 BAND EQ HEADPHONES CH ON PHONES 1/4" LEVEL 2= + MIC/USB PHONES 3.5mm MIC INPUT SPLIT CUE METER CUE MIX CUE LOGIC DC CUE PRG - SPLIT Allen & Heath XONE:42 User Guide... -
Page 9: Mic / Usb Channel Input
It is fully compatible with USB2. The USB connection is used to send and receive audio data between the Xone:42 and a connected computer. Use a standard type A to B lead to connect to your computer. - Page 10 Press the switch again to deselect cue. Channel On Switch Press the Channel On switch to send the channel audio to the mix. When selected, the green LED indicator will illuminate. Allen & Heath XONE:42 User Guide...
-
Page 11: Phono / Line Input Channels 1 And 4
RCA stereo line input. In the up position PHONO is selected; when pressed, LINE is selected. Channel Equalizer / Isolator The Xone:42 is equipped with a very powerful 3 band EQ stage providing a controlled +6dB of boost when fully clockwise, but full isolation (cut) of each band for dramatic effect when fully anti-clockwise. - Page 12 (right) side of the cross-fader. Works in conjunction with the XFADER On switch in the master section. A bi-colour LED indicator illuminates either green (X) or red (Y) to show which side of the cross-fader has been selected. Allen & Heath XONE:42 User Guide...
-
Page 13: Line / Line Input Channels 2 And 3
LINE / LINE INPUT CHANNELS 2 and 3 Line A/B Select Switch Switches between the two RCA stereo line inputs avail- able on Channels 2 and 3. In the up position LINE A is selected; when pressed, LINE B is selected. Allen & Heath XONE:42 User Guide... -
Page 14: Filters Section
Turns on the band pass (bell shaped) filter slope. The light ring around the button illuminates when selected. LPF Button Turns on the low pass (treble cut) filter slope. The light ring around the button illuminates when selected. Allen & Heath XONE:42 User Guide... -
Page 15: Filter Section
While using the crossfader to sweep the VCF frequencies, the sweep control ranges from the left-hand (X) side of the crossfader to the mid-point. Disabling the crossfader will also disable this function. Allen & Heath XONE:42 User Guide... -
Page 16: Headphone Section
Use closed-ear headphones that provide maximum acoustic isolation when cueing your sources. We rec- ommend that you use high quality headphones rated be- tween 30 to 100 ohms impedance. 8 ohm headphones are not recommended Allen & Heath XONE:42 User Guide... -
Page 17: Master Section
Adjusts the level of the signal to the stereo booth RCA output. This does not affect the headphones. booth output could be used for a booth monitor, re- cording or an additional zone feed. Allen & Heath XONE:42 User Guide... -
Page 18: Crossfader
LED indication will also be switched off. Crossfader Curve Control This control adjusts the crossfader curve between dipped response, ideal for seamless beat mixing, and fast-attack, suitable for scratch or cut mixing. Allen & Heath XONE:42 User Guide... -
Page 19: Rear Connectors
IEC cable with moulded mains plug suitable for your local supply. Important: Read the SAFETY INSTRUCTIONS sheet included with the Xone:42 and printed on the rear panel. Check that the correct mains lead with moulded plug has been supplied with your console. - Page 20 The USB interface is compatible with Windows™ 98/98SE, ME, WIN2000 and XP, MAC OS9.1, OSX (10.0) or later (but not Japanese OS 10.1). For lowest latency with Windows, an ASIO driver is recommended such as ASIO4ALL by Michael Tippach — www.asio4all.com Allen & Heath XONE:42 User Guide...
-
Page 21: Record Output
A screw terminal is provided for connecting the earth straps from turntables. This connec- tion earths the metal parts of the turntable to reduce hum, buzz or similar audible noise get- ting into the system. Allen & Heath XONE:42 User Guide... -
Page 22: Usb Connection
USB for Effects Connect the X:FX Send to USB In on the left side on the Xone:42’s rear panel using RCA phono cables. Using a standard Type A to B USB lead, connect the Xone:42 to your computer’s USB port, and start your chosen FX software. -
Page 23: Filter Reference
The vertical scale shows the amount of cut or boost around the normal 0dB operating level. The horizontal scale shows the change in frequency from low (bass) to high (treble). HI-PASS FILTER BAND-PASS FILTER 1kHz LO-PASS FILTER 1kHz 1kHz Allen & Heath XONE:42 User Guide... -
Page 24: Operating Levels
! As the session wears on ear fatigue may set in, and the speaker cones may become hot so reducing the effectiveness of the system and listeners to gain any benefit from increased volume. Allen & Heath XONE:42 User Guide... -
Page 25: Earthing
Use good quality cables and connectors and check for correct wiring and reliable solder joints. Allow sufficient cable loop to prevent damage through stretching. If you are not sure ... Contact your service agent or local Allen & Heath dealer for advice. Allen & Heath XONE:42 User Guide... -
Page 26: Replacing The Crossfader / Face Plate
Replace the assembly making sure the cable faces the right-hand side of the console. − Refit the outer screws and test operation. − Standard Alpha Crossfader Part Number— 003-829 JIT Penny & Giles Crossfader Option Part Number— 002-719 JIT Allen & Heath XONE:42 User Guide... -
Page 27: User-Replaceable Parts
The diagram above shows all of the replacement parts that can be ordered from your local technical support, or direct from Allen & Heath, for the Xone:42. When ordering please quote the part number(s) of the required parts - this makes life easier for us! Note: Key for front panel screws Screws marked with ‘*’... - Page 28 Check out the website: www.xone.co.uk … for products, news, reviews, user forum, downloads, galleries, merchandise, and much more ... Allen & Heath XONE:42 User Guide...
