2.5.9 CPU Fan Connector

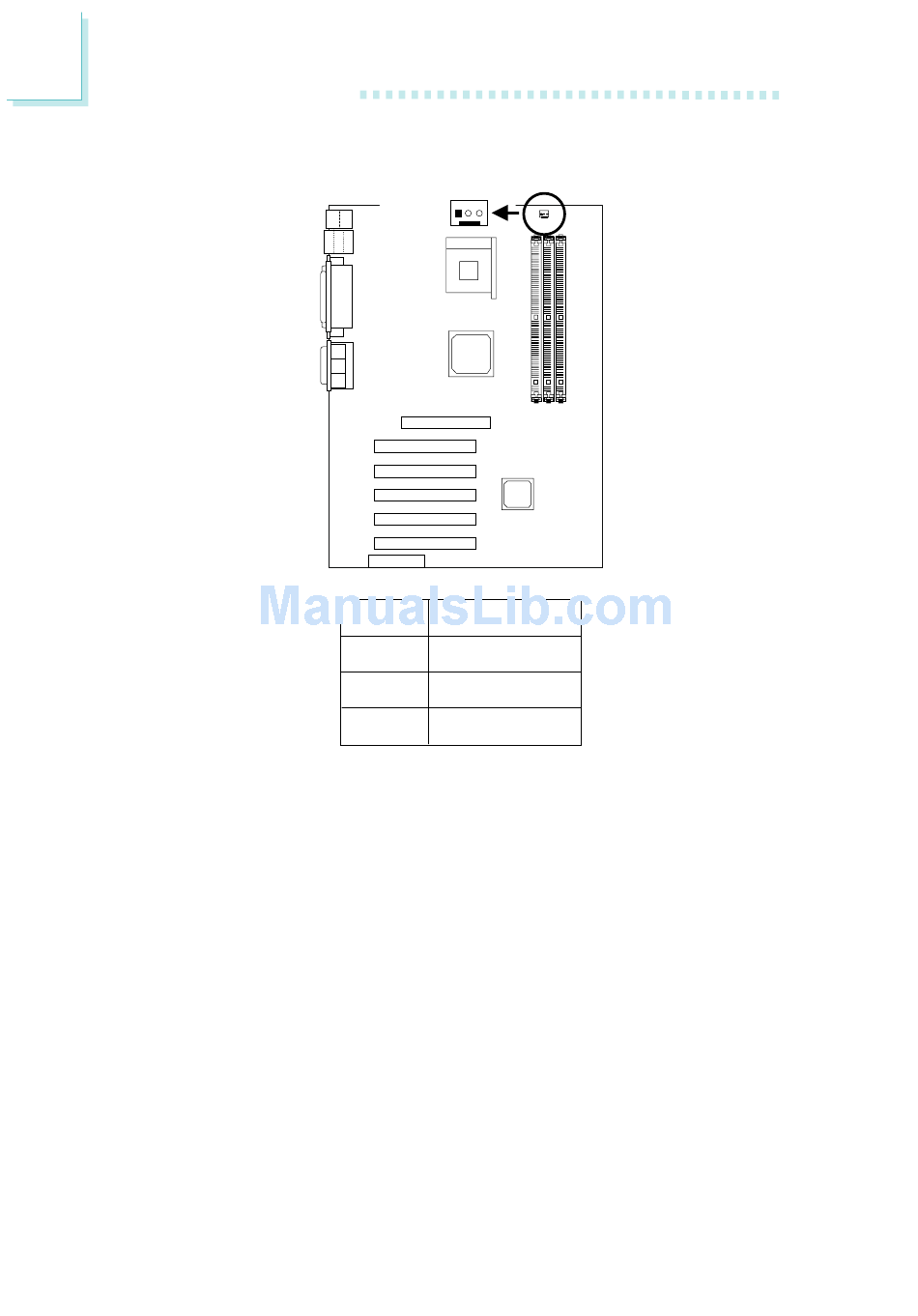

The CPU must be kept cool by using a fan with heatsink. Connect
the CPU fan to the 3-pin fan connector at location J10 (red
connector) on the system board. The system is capable of monitoring
the speed of the CPU fan.
32
1
2
3
CPU fan
(J10)
Pin
Function
1
Ground
2
+12V
3
Sense
