Frequently recharging the battery when its power is still
remaining enough may shorten the usable life of the internal
battery. It is recommended to use the battery to a certain level
(e.g. after the battery level decreases) before recharging.
When the battery becomes warm, charging may automatically
stop even if the battery has not been fully charged. Charging
automatically resumes after the temperature lowers to an
appropriate temperature.
If you watch Mobacas, receive content, etc. while charging, move
the handset as far away as possible from the power plug section
of the AC adapter.
Estimated battery life when fully charged
■
Continuous FOMA/3G
talk time Approx. 1,370 min
GSM
Approx. 1,080 min
VoLTE (Voice call)
Approx. 1,350 min
Continuous FOMA/3G
stand-by time At rest: Approx. 900 hr (Preferred network
type: LTE/3G/GSM(Auto))
GSM
At rest: Approx. 720 hr (Preferred network
type: LTE/3G/GSM(Auto))
LTE
At rest: Approx. 730 hr (Preferred network
type: LTE/3G/GSM(Auto))
Mobacas Approx. 600 min
watching time
TV watching Full-Seg: Approx. 460 min
time 1Seg: Approx. 670 min
For details on the battery life nP. 96 "Main specifications"
■ Internal battery usable life
Internal battery is a consumable product. Battery life per charge
is gradually reduced every time the battery is charged.
When battery life per charge is reduced to approximately half of
the default time, this means that the internal battery is
approaching the end of its usable life. In this case, it is
recommended to replace the battery as soon as possible. For
details on replacing the internal battery, contact the number
listed in "Repairs" (in Japanese only) on the last page or a repair
counter that DOCOMO specifies.
If you watch TV etc. while charging for a long time, the usable life
of the internal battery may become shorter than estimated.
AC adapter and DC adapter
■
Refer to user's guide of AC Adapter 03/04/05 (sold separately) or
DC Adapter 03/04 (sold separately).
AC Adapter 03/04/05 covers from 100 to 240V AC.
The shape of the plug for the AC adapter is for 100V AC (for
domestic use). To use the AC adapter of 100 to 240V AC
overseas, a conversion plug adapter applicable to your country
of stay is required. Do not use a voltage converter for overseas
travel to charge the battery.

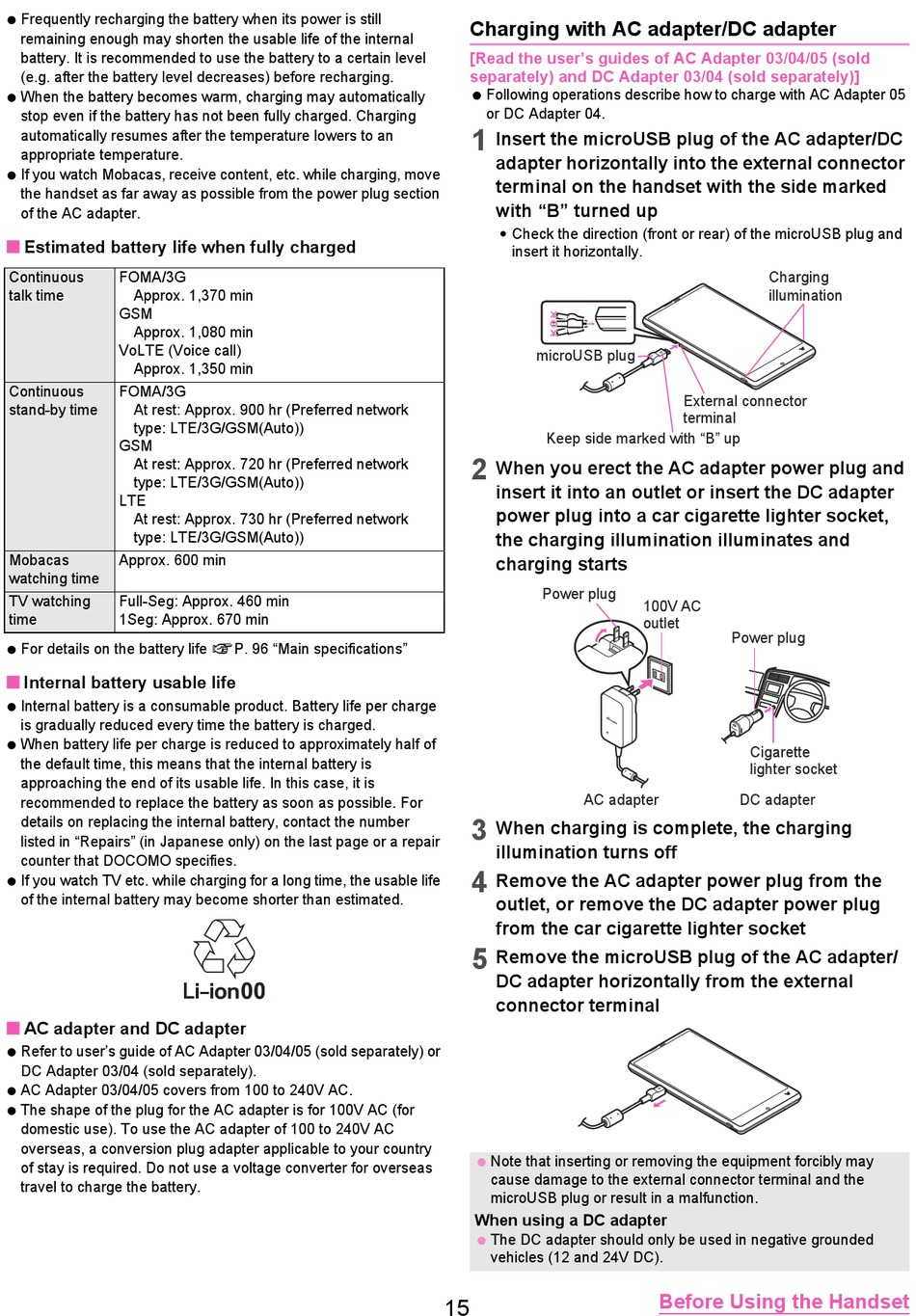

Charging with AC adapter/DC adapter

[Read the user's guides of AC Adapter 03/04/05 (sold
separately) and DC Adapter 03/04 (sold separately)]
Following operations describe how to charge with AC Adapter 05
or DC Adapter 04.
1
Insert the microUSB plug of the AC adapter/DC
adapter horizontally into the external connector
terminal on the handset with the side marked
with "B" turned up
: Check the direction (front or rear) of the microUSB plug and
insert it horizontally.
microUSB plug
Keep side marked with "B" up
2
When you erect the AC adapter power plug and
insert it into an outlet or insert the DC adapter
power plug into a car cigarette lighter socket,
the charging illumination illuminates and
charging starts
Power plug
AC adapter
3
When charging is complete, the charging
illumination turns off
4
Remove the AC adapter power plug from the
outlet, or remove the DC adapter power plug
from the car cigarette lighter socket
5
Remove the microUSB plug of the AC adapter/
DC adapter horizontally from the external
connector terminal
Note that inserting or removing the equipment forcibly may
cause damage to the external connector terminal and the
microUSB plug or result in a malfunction.
When using a DC adapter
The DC adapter should only be used in negative grounded
vehicles (12 and 24V DC).
15
Charging
illumination
External connector
terminal
100V AC
outlet
Power plug
Cigarette
lighter socket
DC adapter
Before Using the Handset
