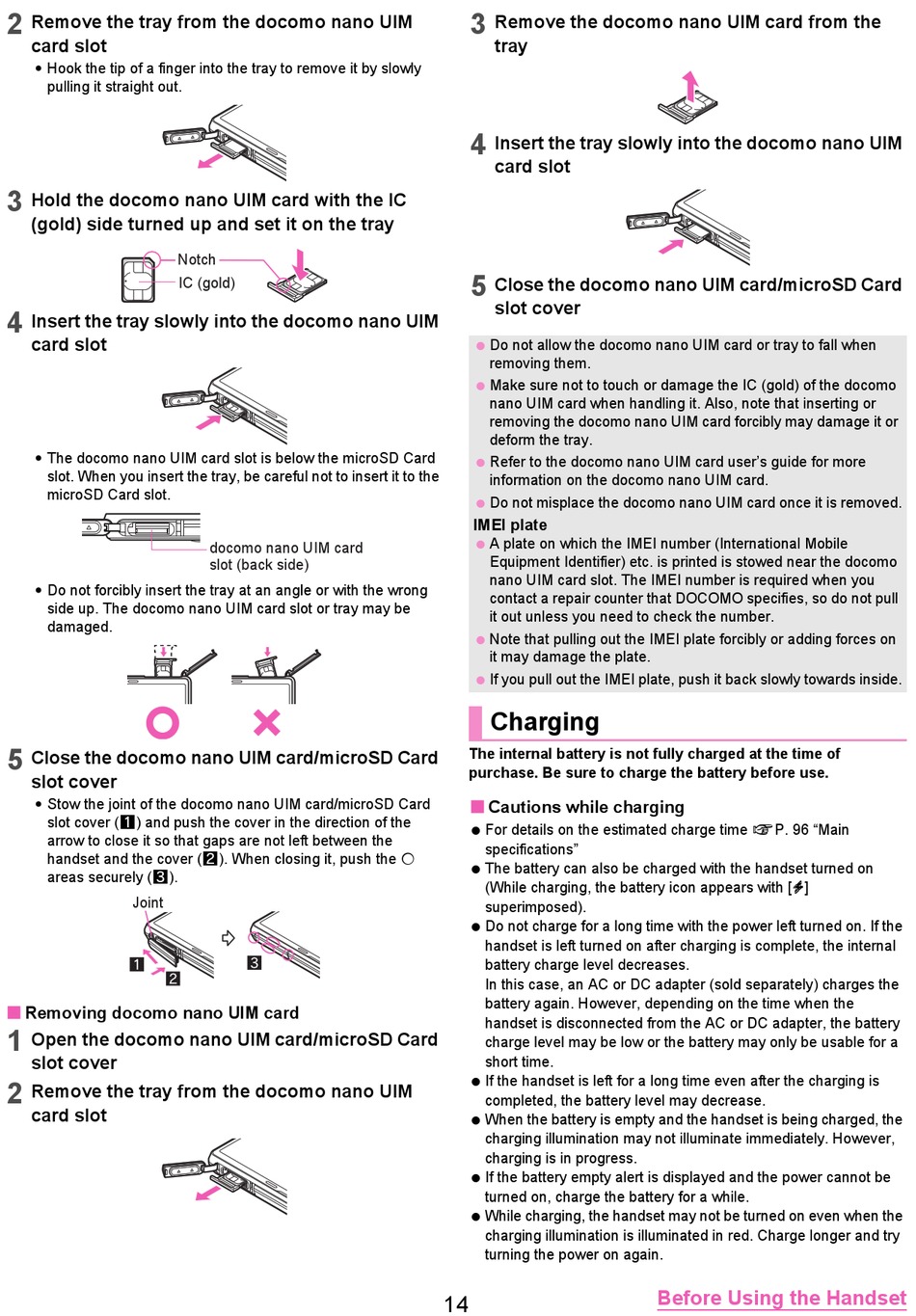

Charging - Docomo DisneyMobile SH-02G Instruction Manual

2
Remove the tray from the docomo nano UIM
card slot
: Hook the tip of a finger into the tray to remove it by slowly
pulling it straight out.
3
Hold the docomo nano UIM card with the IC
(gold) side turned up and set it on the tray
Notch
4
Insert the tray slowly into the docomo nano UIM
card slot
: The docomo nano UIM card slot is below the microSD Card
slot. When you insert the tray, be careful not to insert it to the
microSD Card slot.
: Do not forcibly insert the tray at an angle or with the wrong
side up. The docomo nano UIM card slot or tray may be
damaged.
5
Close the docomo nano UIM card/microSD Card
slot cover
: Stow the joint of the docomo nano UIM card/microSD Card
slot cover (1) and push the cover in the direction of the
arrow to close it so that gaps are not left between the
handset and the cover (2). When closing it, push the A
areas securely (3).
Joint
■ Removing docomo nano UIM card
1
Open the docomo nano UIM card/microSD Card
slot cover
2
Remove the tray from the docomo nano UIM
card slot
IC (gold)
docomo nano UIM card
slot (back side)
3
Remove the docomo nano UIM card from the
tray
4
Insert the tray slowly into the docomo nano UIM
card slot
5
Close the docomo nano UIM card/microSD Card
slot cover
Do not allow the docomo nano UIM card or tray to fall when
removing them.
Make sure not to touch or damage the IC (gold) of the docomo
nano UIM card when handling it. Also, note that inserting or
removing the docomo nano UIM card forcibly may damage it or
deform the tray.
Refer to the docomo nano UIM card user's guide for more
information on the docomo nano UIM card.
Do not misplace the docomo nano UIM card once it is removed.
IMEI plate
A plate on which the IMEI number (International Mobile
Equipment Identifier) etc. is printed is stowed near the docomo
nano UIM card slot. The IMEI number is required when you
contact a repair counter that DOCOMO specifies, so do not pull
it out unless you need to check the number.
Note that pulling out the IMEI plate forcibly or adding forces on
it may damage the plate.
If you pull out the IMEI plate, push it back slowly towards inside.

Charging

The internal battery is not fully charged at the time of
purchase. Be sure to charge the battery before use.
■ Cautions while charging
For details on the estimated charge time nP. 96 "Main
specifications"
The battery can also be charged with the handset turned on
(While charging, the battery icon appears with [w]
superimposed).
Do not charge for a long time with the power left turned on. If the
handset is left turned on after charging is complete, the internal
battery charge level decreases.
In this case, an AC or DC adapter (sold separately) charges the
battery again. However, depending on the time when the
handset is disconnected from the AC or DC adapter, the battery
charge level may be low or the battery may only be usable for a
short time.
If the handset is left for a long time even after the charging is
completed, the battery level may decrease.
When the battery is empty and the handset is being charged, the
charging illumination may not illuminate immediately. However,
charging is in progress.
If the battery empty alert is displayed and the power cannot be
turned on, charge the battery for a while.
While charging, the handset may not be turned on even when the
charging illumination is illuminated in red. Charge longer and try
turning the power on again.
14
Before Using the Handset
